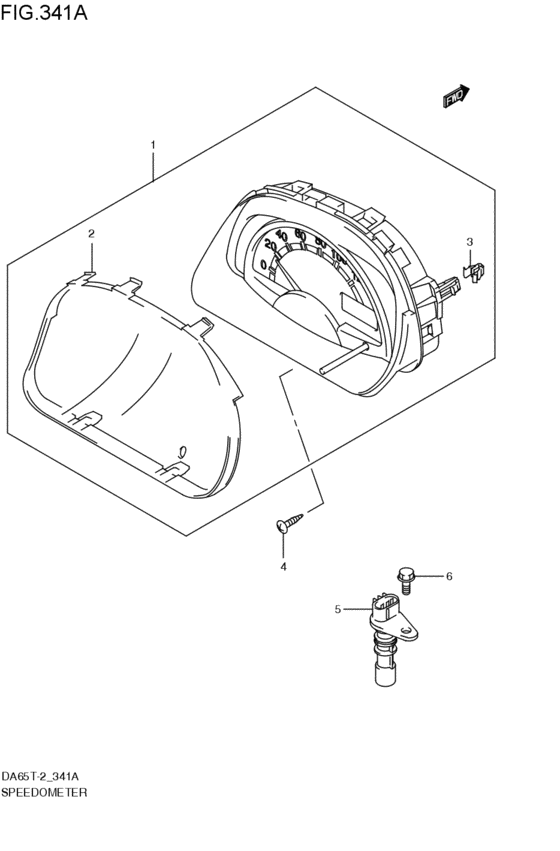

speed meter (2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FD
- air bag
- N-AB
- power steering
- PS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-67HN0-000
スピードメータアッシ,コンビネーション
N-AB; 2008-01-01~ |
34100-67HN0-000 |
— | ||
| replacement | |||||
|
1
|
1
34100-67HN3-000
New Genuine Part
N-AB; 2008-01-01~ |
34100-67HN3-000 |
— | ||
|
2
|
2
34112-67HA0-000 GLASS,METER WINDOW2008-01-01~ |
34112-67HA0-000 |
US $32.80 |
||
|
3
|
3
09409-08326-000 CLIP2008-01-01~ |
09409-08326-000 |
from US $0.76 |
||
|
4
|
4
03541-0516A-000 SCREW2008-01-01~ |
03541-0516A-000 |
from US $0.76 |
||
|
5
|
5
34960-78A60-000 SENSOR ASSY,SPEED4WD; 2008-01-01~ |
34960-78A60-000 |
US $151.62 |
||
|
6
|
6
01550-0616A-000 BOLT2008-01-01~ |
01550-0616A-000 |
from US $0.76 |
||
