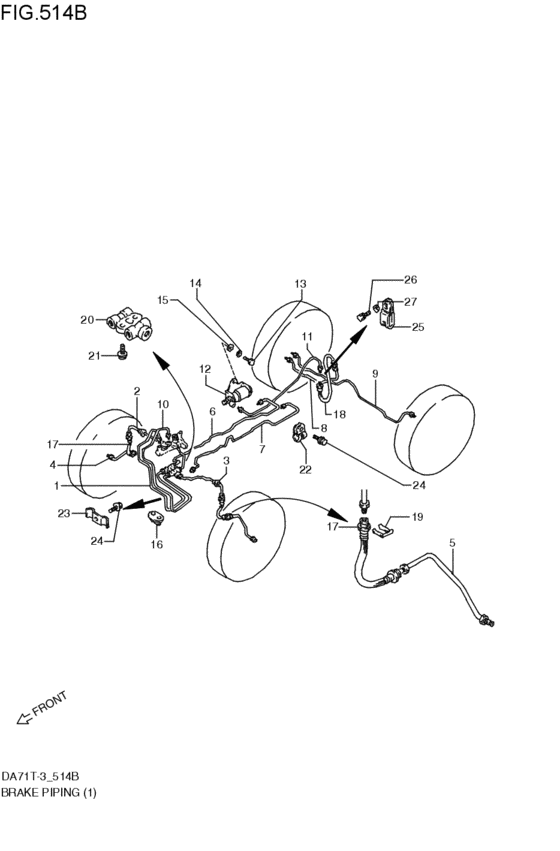

brakes piping (T,K; 1987-08-01~1989-04-01) Diagram Suzuki CARRY/EVERY
- Year
- 1987 - 1989
- Sales region
- Japan
- Engine
- 2V
- supercharge
- CARB
- transmission
- MT
- grade
- TC
- number of the gears
- 4MT
- body
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-85401-000
Pipe,brake no.1
T,K; 1987-08-01~1989-04-01 |
51410-85401-000 |
— | ||
|
2
|
2
51420-85000-000
パイプ,ブレーキ,NO.2
T,K; 1987-08-01~1989-04-01 |
51420-85000-000 |
— | ||
|
3
|
3
51430-85000-000
パイプ,ブレーキ,NO.3
T,K; 1987-08-01~1989-04-01 |
51430-85000-000 |
— | ||
|
4
|
4
51440-85001-000
パイプ,ブレーキ,NO.4
T,K; 1987-08-01~1989-04-01 |
51440-85001-000 |
— | ||
|
5
|
5
51450-85001-000
パイプ,ブレーキ,NO.5
T,K; 1987-08-01~1989-04-01 |
51450-85001-000 |
— | ||
|
6
|
6
51460-85011-000
パイプ,ブレーキ,NO.6
(T,K):2V:CARB; 1987-08-01~1989-04-01 |
51460-85011-000 |
— | ||
|
8
|
8
51470-85000-000 PIPE,RR BK HOSE TO R BK ASSYT,K; 1987-08-01~1989-04-01 |
51470-85000-000 |
US $13.28 |
||
|
9
|
9
51480-85000-000
PIPE,R BK ASSY TO L BK ASSY
T,K; 1987-08-01~1989-04-01 |
51480-85000-000 |
— | ||
|
10
|
10
51510-85400-000
パイプ,ブレーキ,NO.12
T,K; 1987-08-01~1989-04-01 |
51510-85400-000 |
— | ||
| replacement | |||||
|
10
|
10
51510-85401-000
Pipe,brake no.12
T,K; 1987-08-01~1989-04-01 |
51510-85401-000 |
— | ||
|
11
|
11
51350-85011-000
パイプ,ブレーキ,NO.15
T,K; 1987-08-01~1989-04-01 |
51350-85011-000 |
— | ||
|
12
|
12
51940-85002-000
バルブアッシ,G.P
T,K; 1987-08-01~1989-04-01 |
51940-85002-000 |
— | ||
|
13
|
13
01107-06123-000
Bolt 6x1x16
T,K; 1987-08-01~1989-04-01 |
01107-06123-000 |
— | ||
| replacements | |||||
|
13
|
13
01500-0612A-000 BOLTT,K; 1987-08-01~1989-04-01 |
01500-0612A-000 |
from US $0.76 |
||
|
13
|
13
01500-06123-000
Bolt, front
T,K; 1987-08-01~1989-04-01 |
01500-06123-000 |
— | ||
|
14
|
14
08321-21063-000 Lock washerT,K; 1987-08-01~1989-04-01 |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
14
|
14
08321-0106A-000 WASHER,LOCKT,K; 1987-08-01~1989-04-01 |
08321-0106A-000 |
from US $0.76 |
||
|
15
|
15
08322-21063-000
Washer
T,K; 1987-08-01~1989-04-01 |
08322-21063-000 |
— | ||
| replacement | |||||
|
15
|
15
08322-0106B-000 WASHERT,K; 1987-08-01~1989-04-01 |
08322-0106B-000 |
from US $0.76 |
||
|
16
|
16
51751-85000-000 GROMMET,BRAKE PIPET,K; 1987-08-01~1989-04-01 |
51751-85000-000 |
US $2.24 |
||
|
17
|
17
51540-85050-000
ホース,リヤブレーキフレキシブル
T,K; 1987-08-01~1989-04-01 |
51540-85050-000 |
— | ||
| replacement | |||||
|
17
|
17
51560-70F00-000 HOSE,RR BRAKE FLEXIBLET,K; 1987-08-01~1989-04-01 |
51560-70F00-000 |
US $29.99 |
||
|
18
|
18
51540-85050-000
ホース,リヤブレーキフレキシブル
T,K; 1987-08-01~1989-04-01 |
51540-85050-000 |
— | ||
| replacement | |||||
|
18
|
18
51560-70F00-000 HOSE,RR BRAKE FLEXIBLET,K; 1987-08-01~1989-04-01 |
51560-70F00-000 |
US $29.99 |
||
|
19
|
19
09383-13001-000 E RINGT,K; 1987-08-01~1989-04-01 |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
19
|
19
09383-13003-000 E-RINGT,K; 1987-08-01~1989-04-01 |
09383-13003-000 |
from US $1.60 |
||
|
20
|
20
51640-85030-000 JOINT,5WAY BRAKET,K; 1987-08-01~1989-04-01 |
51640-85030-000 |
US $45.60 |
||
|
21
|
21
01517-06203-000
Bolt
T,K; 1987-08-01~1989-04-01 |
01517-06203-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0620B-000 BOLTBolt, inspection cap T,K; 1987-08-01~1989-04-01 |
01550-0620B-000 |
from US $0.76 |
||
|
21
|
21
01550-0620A-000 BOLTT,K; 1987-08-01~1989-04-01 |
01550-0620A-000 |
from US $0.76 |
||
|
22
|
22
09403-06401-000 CLAMPT,K; 1987-08-01~1989-04-01 |
09403-06401-000 |
from US $2.08 |
||
|
23
|
23
09403-07312-000 CLAMPT,K; 1987-08-01~1989-04-01 |
09403-07312-000 |
from US $0.92 |
||
|
24
|
24
09132-06006-000 SCREW(6X12)T,K; 1987-08-01~1989-04-01 |
09132-06006-000 |
US $1.60 |
||
|
25
|
25
09403-06404-000 CLAMPT,K; 1987-08-01~1989-04-01 |
09403-06404-000 |
US $2.72 |
||
|
26
|
26
01107-06123-000
Bolt 6x1x16
T,K; 1987-08-01~1989-04-01 |
01107-06123-000 |
— | ||
| replacements | |||||
|
26
|
26
01500-0612A-000 BOLTT,K; 1987-08-01~1989-04-01 |
01500-0612A-000 |
from US $0.76 |
||
|
26
|
26
01500-06123-000
Bolt, front
T,K; 1987-08-01~1989-04-01 |
01500-06123-000 |
— | ||
|
27
|
27
08321-21063-000 Lock washerT,K; 1987-08-01~1989-04-01 |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
27
|
27
08321-0106A-000 WASHER,LOCKT,K; 1987-08-01~1989-04-01 |
08321-0106A-000 |
from US $0.76 |
||
