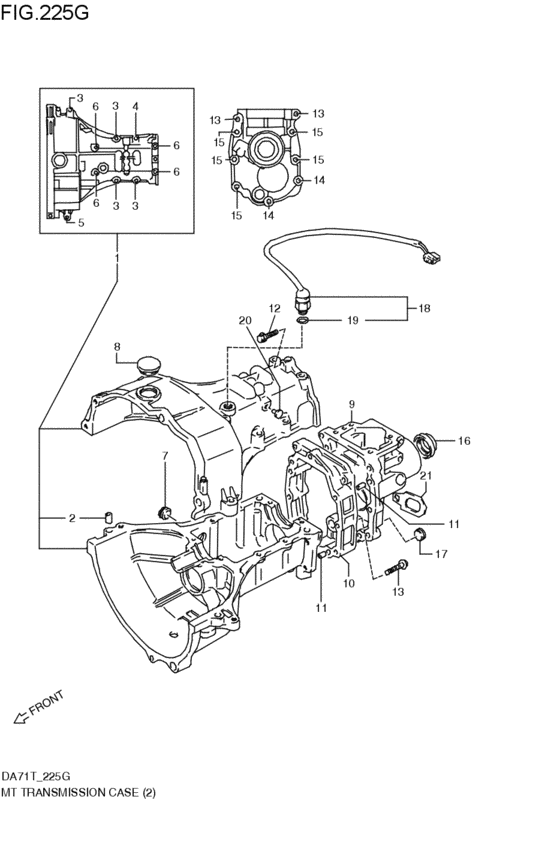

mt - transmission case (5MT; 1985-03-01~1987-08-01) Diagram Suzuki CARRY/EVERY
- Year
- 1986 - 1987
- Sales region
- Japan
- Engine
- CARB
- transmission
- 5MT
- grade
- V
- type
- TYPE2
- x01
- AR
- x02
- X
- x03
- AX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-85001-000
ケースアッシ,トランスミッション
5MT; 1985-03-01~1987-08-01 |
24700-85001-000 |
— | ||
|
2
|
2
04211-09169-000 PIN5MT; 1985-03-01~1987-08-01 |
04211-09169-000 |
from US $0.91 |
||
|
3
|
3
01517-08403-000
ボルト
5MT; 1985-03-01~1987-08-01 |
01517-08403-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-0840B-000 Bolt5MT; 1985-03-01~1987-08-01 |
01550-0840B-000 |
US $1.12 |
||
|
4
|
4
01517-08603-000
ボルト
5MT; 1985-03-01~1987-08-01 |
01517-08603-000 |
— | ||
| replacement | |||||
|
4
|
4
01550-0860B-000 BoltBolt, sec case 5MT; 1985-03-01~1987-08-01 |
01550-0860B-000 |
from US $3.71 |
||
|
5
|
5
01537-08803-000 ボルト5MT; 1985-03-01~1986-05-01 |
01537-08803-000 |
US $2.03 |
||
| replacements | |||||
|
5
|
5
01550-0880B-000 BoltBolt, muffler bracket & stand 5MT; 1985-03-01~1986-05-01 |
01550-0880B-000 |
from US $3.05 |
||
|
5
|
5
01550-0880A-000 BOLT5MT; 1985-03-01~1986-05-01 |
01550-0880A-000 |
from US $1.46 |
||
|
5
|
5
01517-08403-000
ボルト
5MT; 1986-05-01~1987-08-01 |
01517-08403-000 |
— | ||
| replacement | |||||
|
5
|
5
01550-0840B-000 Bolt5MT; 1986-05-01~1987-08-01 |
01550-0840B-000 |
US $1.12 |
||
|
6
|
6
09103-08013-000
ボルト,8X95
5MT; 1985-03-01~1987-08-01 |
09103-08013-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-0895B-000 BoltBolt, crankcase (8x95) 5MT; 1985-03-01~1987-08-01 |
01550-0895B-000 |
US $24.70 |
||
|
7
|
7
09246-16004-000
プラグ(マグネットナシ)
マグネットナシ; 5MT; 1985-03-01~1987-08-01 |
09246-16004-000 |
— | ||
| replacements | |||||
|
7
|
7
09246-16010-000
PLUG
マグネットナシ; 5MT; 1985-03-01~1987-08-01 |
09246-16010-000 |
— | ||
|
7
|
7
09246-16021-000 Plug,t/m Oil Drainマグネットナシ; 5MT; 1985-03-01~1987-08-01 |
09246-16021-000 |
from US $3.26 |
||
|
8
|
8
09250-30003-000 CAP(OD:36)5MT; 1985-03-01~1987-08-01 |
09250-30003-000 |
from US $2.08 |
||
|
9
|
9
24770-85050-000
ケース,エクステンション,NO.1
5MT; 1985-03-01~1987-08-01 |
24770-85050-000 |
— | ||
| replacement | |||||
|
9
|
9
24770-85053-000
CASE,EXTENSION NO.1
5MT; 1985-03-01~1987-08-01 |
24770-85053-000 |
— | ||
|
10
|
10
24781-85050-000
Case,extension,no.2
5MT; 1985-03-01~1987-08-01 |
24781-85050-000 |
— | ||
|
11
|
11
04211-09169-000 PIN5MT; 1985-03-01~1987-08-01 |
04211-09169-000 |
from US $0.91 |
||
|
12
|
12
01517-08303-000
ボルト
5MT; 1985-03-01~1987-08-01 |
01517-08303-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0830A-000 BOLTBolt, mount oil seal cover 5MT; 1985-03-01~1987-08-01 |
01550-0830A-000 |
from US $1.12 |
||
|
12
|
12
01550-0830B-000 Bolt5MT; 1985-03-01~1987-08-01 |
01550-0830B-000 |
from US $1.12 |
||
|
13
|
13
01517-08353-000
Bolt
5MT; 1985-03-01~1987-08-01 |
01517-08353-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0835B-000 BOLT5MT; 1985-03-01~1987-08-01 |
01550-0835B-000 |
from US $1.12 |
||
|
13
|
13
01550-0835A-000 BOLT5MT; 1985-03-01~1987-08-01 |
01550-0835A-000 |
from US $1.12 |
||
|
14
|
14
01537-08653-000 ボルト5MT; 1985-03-01~1987-08-01 |
01537-08653-000 |
US $2.01 |
||
| replacements | |||||
|
14
|
14
01550-0865B-000 Bolt5MT; 1985-03-01~1987-08-01 |
01550-0865B-000 |
US $21.70 |
||
|
14
|
14
01550-0865A-000 BOLTBolt, oil pump (l) 5MT; 1985-03-01~1987-08-01 |
01550-0865A-000 |
from US $1.44 |
||
|
15
|
15
01537-08703-000
ボルト
5MT; 1985-03-01~1987-08-01 |
01537-08703-000 |
— | ||
| replacement | |||||
|
15
|
15
01550-0870B-000 BoltBolt, sec case 5MT; 1985-03-01~1987-08-01 |
01550-0870B-000 |
from US $3.62 |
||
|
16
|
16
24780-79001-000 OIL SEAL5MT; 1985-03-01~1987-08-01 |
24780-79001-000 |
US $8.51 |
||
|
17
|
17
09246-16004-000
プラグ(マグネットナシ)
マグネットナシ; 5MT; 1985-03-01~1987-08-01 |
09246-16004-000 |
— | ||
| replacements | |||||
|
17
|
17
09246-16010-000
PLUG
マグネットナシ; 5MT; 1985-03-01~1987-08-01 |
09246-16010-000 |
— | ||
|
17
|
17
09246-16021-000 Plug,t/m Oil Drainマグネットナシ; 5MT; 1985-03-01~1987-08-01 |
09246-16021-000 |
from US $3.26 |
||
|
18
|
18
37610-79502-000
スイッチアッシ,バックアップランプ
5MT; 1985-03-01~1987-08-01 |
37610-79502-000 |
— | ||
| replacement | |||||
|
18
|
18
37610-80023-000 SWITCH ASSY,BACK UP LAMP5MT; 1985-03-01~1987-08-01 |
37610-80023-000 |
US $20.80 |
||
|
19
|
19
09280-11002-000 O RING(D:1.9,ID:11.4)5MT; 1985-03-01~1987-08-01 |
09280-11002-000 |
from US $0.65 |
||
|
20
|
20
09250-08001-000 PLUG(OD:14)Cap, remote control shaft 5MT; 1985-03-01~1987-08-01 |
09250-08001-000 |
from US $1.22 |
||
|
21
|
21
11851-85000-000
フック,エンジン
5MT; 1985-03-01~1987-08-01 |
11851-85000-000 |
— | ||
| replacement | |||||
|
21
|
21
11851-62B00-000 HOOK5MT; 1985-03-01~1987-08-01 |
11851-62B00-000 |
US $5.02 |
||
