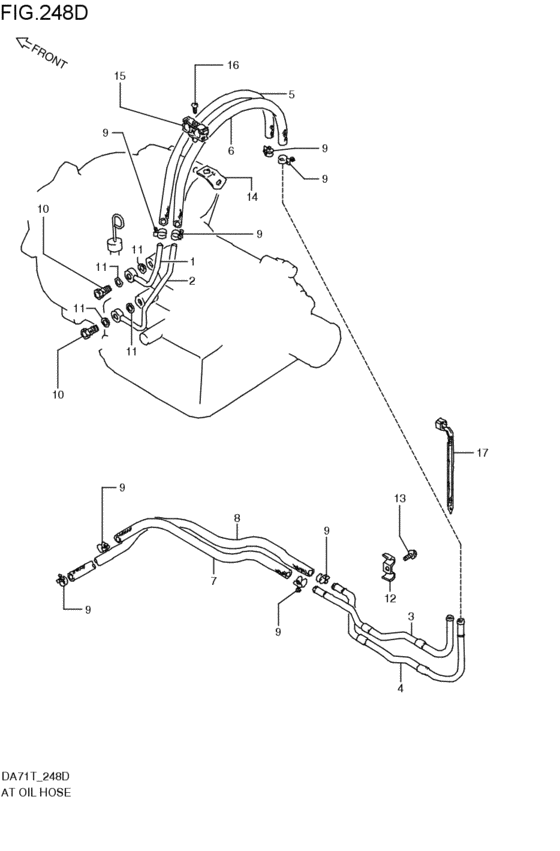

at - oil hose (AT:V; 1985-03-01~1987-08-01) Diagram Suzuki CARRY/EVERY
- Year
- 1986 - 1987
- Sales region
- Japan
- Engine
- CARB
- transmission
- 3AT
- grade
- V
- type
- TYPE2
- x01
- ER
- x02
- X
- x03
- EX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24891-85501-000
パイプ,オイルインレット,NO.1
AT:V; 1985-03-01~1987-08-01 |
24891-85501-000 |
— | ||
|
2
|
2
24892-85501-000
パイプ,オイルアウトレット,NO.1
AT:V; 1985-03-01~1987-08-01 |
24892-85501-000 |
— | ||
|
3
|
3
24893-85501-000
パイプ,オイルインレット,NO.2
AT:V; 1985-03-01~1987-08-01 |
24893-85501-000 |
— | ||
|
4
|
4
24894-85501-000
パイプ,オイルアウトレット,NO.2
AT:V; 1985-03-01~1987-08-01 |
24894-85501-000 |
— | ||
|
5
|
5
24895-85501-000
ホース,オイルインレット,NO.1
AT:V; 1985-03-01~1987-08-01 |
24895-85501-000 |
— | ||
| replacement | |||||
|
5
|
5
24891-56X51-000 HOSE SETAT:V; 1985-03-01~1987-08-01 |
24891-56X51-000 |
US $57.60 |
||
|
6
|
6
24896-85501-000
ホース,オイルアウトレット,NO.1
AT:V; 1985-03-01~1987-08-01 |
24896-85501-000 |
— | ||
| replacement | |||||
|
6
|
6
24891-56X51-000 HOSE SETAT:V; 1985-03-01~1987-08-01 |
24891-56X51-000 |
US $57.60 |
||
|
7
|
7
24897-85501-000
ホース,オイルインレット,NO.2
AT:V; 1985-03-01~1987-08-01 |
24897-85501-000 |
— | ||
|
8
|
8
24898-85501-000
ホース,オイルアウトレット,NO.2
AT:V; 1985-03-01~1987-08-01 |
24898-85501-000 |
— | ||
|
9
|
9
09400-15302-000
Clamp
AT:V; 1985-03-01~1987-08-01 |
09400-15302-000 |
— | ||
| replacement | |||||
|
9
|
9
09400-15311-000 CLAMPAT:V; 1985-03-01~1987-08-01 |
09400-15311-000 |
US $23.20 |
||
|
10
|
10
09360-10032-000
Bolt, union (10x24)
AT:V; 1985-03-01~1987-08-01 |
09360-10032-000 |
— | ||
| replacement | |||||
|
10
|
10
09360-10055-000 UNIONBolt, oil pipe union AT:V; 1985-03-01~1987-08-01 |
09360-10055-000 |
from US $4.80 |
||
|
11
|
11
09168-10025-000
ガスケット,10X14X1
AT:V; 1985-03-01~1987-08-01 |
09168-10025-000 |
— | ||
| replacement | |||||
|
11
|
11
09161-10009-000 WASHER(10X15X1.5)Lock washer AT:V; 1985-03-01~1987-08-01 |
09161-10009-000 |
from US $1.06 |
||
|
12
|
12
24899-85500-000
PLATE,OIL PIPE
AT:V; 1985-03-01~1987-08-01 |
24899-85500-000 |
— | ||
|
13
|
13
01517-06103-000
ボルト
AT:V; 1985-03-01~1987-08-01 |
01517-06103-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0610A-000 BOLTAT:V; 1985-03-01~1987-08-01 |
01550-0610A-000 |
from US $0.80 |
||
|
13
|
13
01550-0610B-000 BoltBolt AT:V; 1985-03-01~1987-08-01 |
01550-0610B-000 |
from US $0.80 |
||
|
14
|
14
24915-85500-000
ブラケット,オイルホースクランプ
AT:V; 1985-03-01~1987-08-01 |
24915-85500-000 |
— | ||
|
15
|
15
09403-14302-000
クランプ
AT:V; 1985-03-01~1987-08-01 |
09403-14302-000 |
— | ||
| replacement | |||||
|
15
|
15
09403-14309-000 CLAMPAT:V; 1985-03-01~1987-08-01 |
09403-14309-000 |
US $4.32 |
||
|
16
|
16
03541-06163-000
スクリュ
AT:V; 1985-03-01~1987-08-01 |
03541-06163-000 |
— | ||
| replacement | |||||
|
16
|
16
03541-0616A-000 SCREWAT:V; 1985-03-01~1987-08-01 |
03541-0616A-000 |
from US $0.64 |
||
|
17
|
17
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap AT:V; 1985-03-01~1987-08-01 |
09407-14403-000 |
from US $2.08 |
||
