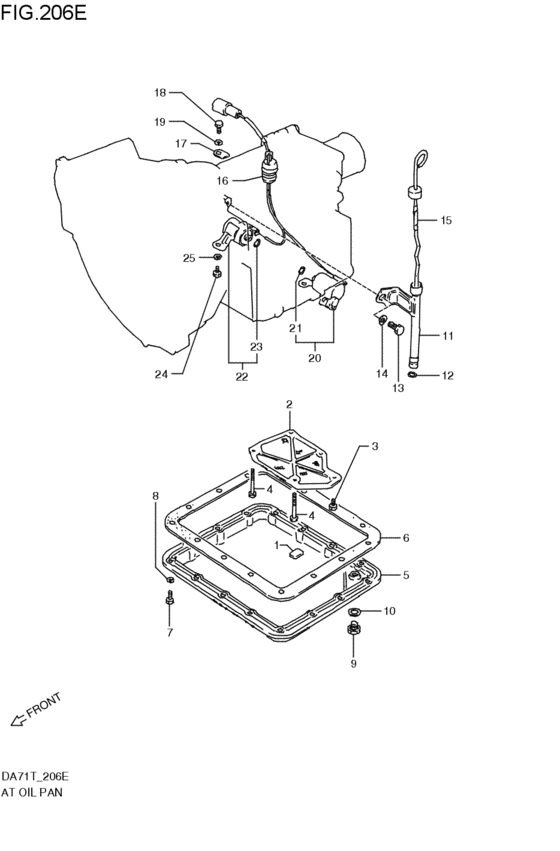

at - oil pan (AT; 1985-03-01~1987-08-01) Diagram Suzuki CARRY/EVERY
- Year
- 1986 - 1987
- Sales region
- Japan
- Engine
- CARB
- transmission
- 3AT
- grade
- V
- type
- TYPE2
- x01
- ER
- x02
- X
- x03
- EX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24861-78230-000 MAGNET,OIL CLEANERAT; 1985-03-01~1987-08-01 |
24861-78230-000 |
US $2.58 |
||
|
2
|
2
26570-85500-000 STRAINER,T/M OILAT; 1985-03-01~1987-08-01 |
26570-85500-000 |
US $56 |
||
|
3
|
3
01517-05123-000
ボルト
AT; 1985-03-01~1987-08-01 |
01517-05123-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-0512B-000 BOLTBolt AT; 1985-03-01~1987-08-01 |
01550-0512B-000 |
from US $0.70 |
||
|
4
|
4
01537-05403-000
ボルト
AT; 1985-03-01~1987-08-01 |
01537-05403-000 |
— | ||
|
5
|
5
24761-85500-000 PAN,T/M OILAT; 1985-03-01~1987-08-01 |
24761-85500-000 |
US $125.86 |
||
|
6
|
6
24784-85500-000 GASKET,T/M OIL PANAT; 1985-03-01~1987-08-01 |
24784-85500-000 |
US $19.76 |
||
|
7
|
7
01107-06163-000 Bolt m6x1x16AT; 1985-03-01~1987-08-01 |
01107-06163-000 |
US $1.09 |
||
| replacement | |||||
|
7
|
7
01500-0616A-000 BoltAT; 1985-03-01~1987-08-01 |
01500-0616A-000 |
from US $0.76 |
||
|
8
|
8
08321-21063-000 Lock washerAT; 1985-03-01~1987-08-01 |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
8
|
8
08321-0106A-000 WASHER,LOCKAT; 1985-03-01~1987-08-01 |
08321-0106A-000 |
from US $0.76 |
||
|
9
|
9
09247-10007-000 PLUGAT; 1985-03-01~1987-08-01 |
09247-10007-000 |
from US $2.43 |
||
|
10
|
10
09168-12009-000 GASKET(12X16.7X2)AT; 1985-03-01~1987-08-01 |
09168-12009-000 |
US $1.22 |
||
|
11
|
11
24785-85500-000
Tube assy,t/m oil filler
AT; 1985-03-01~1987-08-01 |
24785-85500-000 |
— | ||
|
12
|
12
24785-82300-000 O-RING,OIL FILLER TUBEAT; 1985-03-01~1987-08-01 |
24785-82300-000 |
US $1.62 |
||
|
13
|
13
01107-08163-000
Bolt m8x1.25x16
AT; 1985-03-01~1987-08-01 |
01107-08163-000 |
— | ||
| replacements | |||||
|
13
|
13
01500-0816B-000 BoltBolt AT; 1985-03-01~1987-08-01 |
01500-0816B-000 |
from US $0.80 |
||
|
13
|
13
01500-08163-000
Bolt
AT; 1985-03-01~1987-08-01 |
01500-08163-000 |
— | ||
|
14
|
14
08321-21083-000
Washr,lk8.2x15.
AT; 1985-03-01~1987-08-01 |
08321-21083-000 |
— | ||
| replacements | |||||
|
14
|
14
08321-0108B-000 WASHER,LOCKAT; 1985-03-01~1987-08-01 |
08321-0108B-000 |
from US $0.76 |
||
|
14
|
14
08321-0108A-000 WASHER,LOCKAT; 1985-03-01~1987-08-01 |
08321-0108A-000 |
from US $0.80 |
||
|
15
|
15
24830-85500-000
GAUGE,T/M OIL LEVEL
AT; 1985-03-01~1987-08-01 |
24830-85500-000 |
— | ||
|
16
|
16
24751-85500-000 HARNESS,SOLENOID WIREAT; 1985-03-01~1987-08-01 |
24751-85500-000 |
US $161.60 |
||
|
17
|
17
24742-82300-000 PLATE,SOLENOID WIRE HARN HOLDAT; 1985-03-01~1987-08-01 |
24742-82300-000 |
US $2.13 |
||
|
18
|
18
01107-06163-000 Bolt m6x1x16AT; 1985-03-01~1987-08-01 |
01107-06163-000 |
US $1.09 |
||
| replacement | |||||
|
18
|
18
01500-0616A-000 BoltAT; 1985-03-01~1987-08-01 |
01500-0616A-000 |
from US $0.76 |
||
|
19
|
19
08321-21063-000 Lock washerAT; 1985-03-01~1987-08-01 |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
19
|
19
08321-0106A-000 WASHER,LOCKAT; 1985-03-01~1987-08-01 |
08321-0106A-000 |
from US $0.76 |
||
|
20
|
20
26519-85500-000
ソレノイドアッシ,ダイレクトクラッチバルブ
AT; 1985-03-01~1987-08-01 |
26519-85500-000 |
— | ||
| replacement | |||||
|
20
|
20
26519-83C00-000 SOLENOID ASSY,DIRECT CLUTCHAT; 1985-03-01~1987-08-01 |
26519-83C00-000 |
US $114.40 |
||
|
21
|
21
24786-82300-000 O-RING,SOLENOID T/MAT; 1985-03-01~1987-08-01 |
24786-82300-000 |
US $1.92 |
||
|
22
|
22
26521-85500-000
ソレノイドアッシ,セカンドブレーキ
AT; 1985-03-01~1987-08-01 |
26521-85500-000 |
— | ||
| replacement | |||||
|
22
|
22
26521-83C00-000 SOLENOID ASSY,2ND BRAKEAT; 1985-03-01~1987-08-01 |
26521-83C00-000 |
US $126.40 |
||
|
23
|
23
24786-82300-000 O-RING,SOLENOID T/MAT; 1985-03-01~1987-08-01 |
24786-82300-000 |
US $1.92 |
||
|
24
|
24
01107-06163-000 Bolt m6x1x16AT; 1985-03-01~1987-08-01 |
01107-06163-000 |
US $1.09 |
||
| replacement | |||||
|
24
|
24
01500-0616A-000 BoltAT; 1985-03-01~1987-08-01 |
01500-0616A-000 |
from US $0.76 |
||
|
25
|
25
08321-21063-000 Lock washerAT; 1985-03-01~1987-08-01 |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
25
|
25
08321-0106A-000 WASHER,LOCKAT; 1985-03-01~1987-08-01 |
08321-0106A-000 |
from US $0.76 |
||
