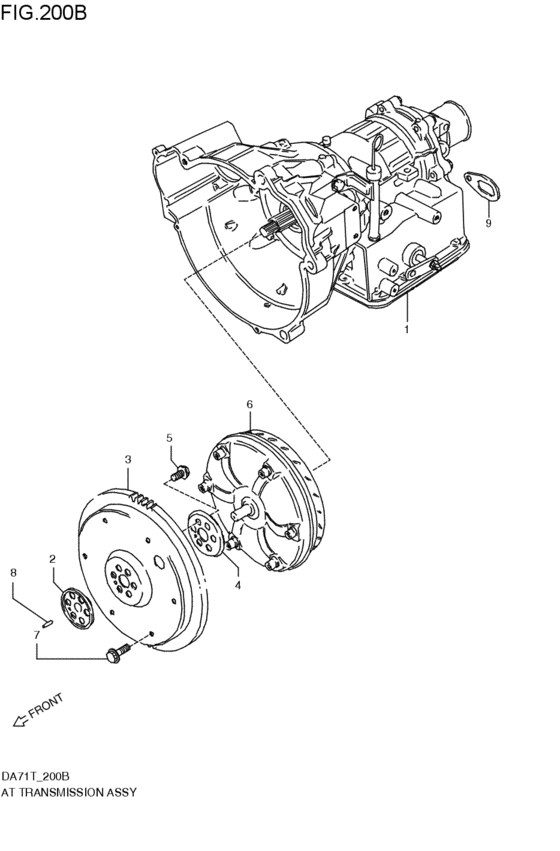

at - transmission assy (AT; 1985-03-01~1987-08-01) Diagram Suzuki CARRY/EVERY
- Year
- 1985 - 1986
- Sales region
- Japan
- Engine
- CARB
- transmission
- 3AT
- grade
- V
- type
- TYPE1
- x01
- ER
- x02
- X
- x03
- EX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
20002-85500-000
トランスミッションアッシ,オートマチック
AT; 1985-03-01~1987-08-01 |
20002-85500-000 |
— | ||
|
2
|
2
22611-78131-000
FLANGE,DRIVE PLATE
AT; 1985-03-01~1987-08-01 |
22611-78131-000 |
— | ||
|
3
|
3
22620-85501-000
プレート,ドライブ
AT; 1985-03-01~1987-08-01 |
22620-85501-000 |
— | ||
|
4
|
4
22631-78131-000 PLATE,DRIVE REARAT; 1985-03-01~1987-08-01 |
22631-78131-000 |
US $11.89 |
||
|
5
|
5
09103-10097-000 BOLT(10X17)AT; 1985-03-01~1987-08-01 |
09103-10097-000 |
US $1.12 |
||
|
6
|
6
22710-85500-000
コンバータ,トルク
AT; 1985-03-01~1987-08-01 |
22710-85500-000 |
— | ||
|
7
|
7
09137-06016-000
Bolt,6x12
AT; 1985-03-01~1987-08-01 |
09137-06016-000 |
— | ||
|
8
|
8
09205-06009-000 PIN,SPRING(6X14)AT; 1985-03-01~1987-08-01 |
09205-06009-000 |
US $10.30 |
||
|
9
|
9
11851-85000-000
フック,エンジン
AT; 1985-03-01~1987-08-01 |
11851-85000-000 |
— | ||
| replacement | |||||
|
9
|
9
11851-62B00-000 HOOKAT; 1985-03-01~1987-08-01 |
11851-62B00-000 |
US $5.02 |
||
