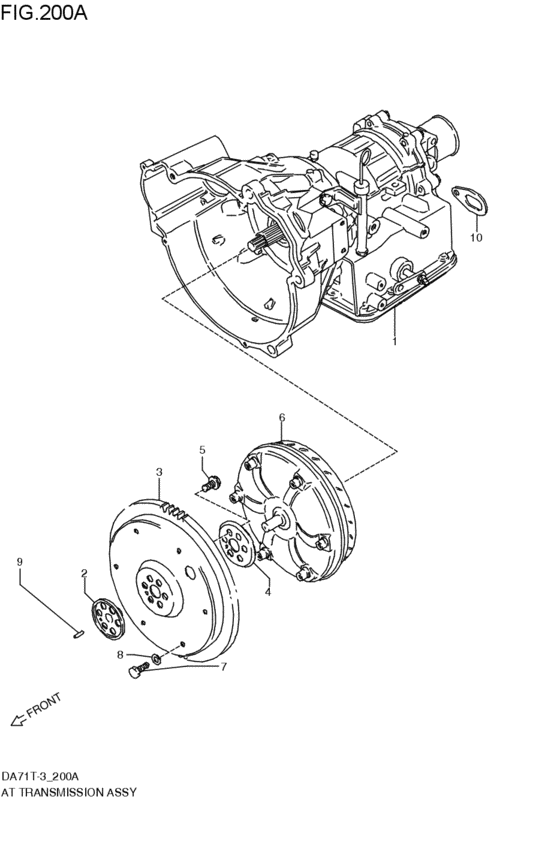

at - transmission assy (AT; 1987-08-01~1989-04-01) Diagram Suzuki CARRY/EVERY
- Year
- 1987 - 1989
- Sales region
- Japan
- Engine
- 2V
- supercharge
- CARB
- transmission
- AT
- grade
- EX
- number of the gears
- 3AT
- body
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
20002-85500-000
トランスミッションアッシ,オートマチック
AT:2V:CARB; 1987-08-01~1989-04-01 |
20002-85500-000 |
— | ||
|
2
|
2
22611-78131-000
FLANGE,DRIVE PLATE
AT; 1987-08-01~1989-04-01 |
22611-78131-000 |
— | ||
|
3
|
3
22620-85501-000
プレート,ドライブ
AT; 1987-08-01~1989-04-01 |
22620-85501-000 |
— | ||
|
4
|
4
22631-78131-000 PLATE,DRIVE REARAT; 1987-08-01~1989-04-01 |
22631-78131-000 |
US $11.89 |
||
|
5
|
5
09103-10097-000 BOLT(10X17)AT; 1987-08-01~1989-04-01 |
09103-10097-000 |
US $1.12 |
||
|
6
|
6
22710-85500-000
コンバータ,トルク
AT:2V:CARB; 1987-08-01~1989-04-01 |
22710-85500-000 |
— | ||
|
7
|
7
09128-06028-000 SCREW(6X23)AT; 1987-08-01~1989-04-01 |
09128-06028-000 |
from US $2.72 |
||
|
8
|
8
08321-31066-000
Lock washer
AT; 1987-08-01~1989-04-01 |
08321-31066-000 |
— | ||
| replacement | |||||
|
8
|
8
08321-0106A-000 WASHER,LOCKAT; 1987-08-01~1989-04-01 |
08321-0106A-000 |
from US $0.76 |
||
|
9
|
9
09205-06009-000 PIN,SPRING(6X14)AT; 1987-08-01~1989-04-01 |
09205-06009-000 |
US $10.30 |
||
|
10
|
10
11851-85000-000
フック,エンジン
AT; 1987-08-01~1989-04-01 |
11851-85000-000 |
— | ||
| replacement | |||||
|
10
|
10
11851-62B00-000 HOOKAT; 1987-08-01~1989-04-01 |
11851-62B00-000 |
US $5.02 |
||
