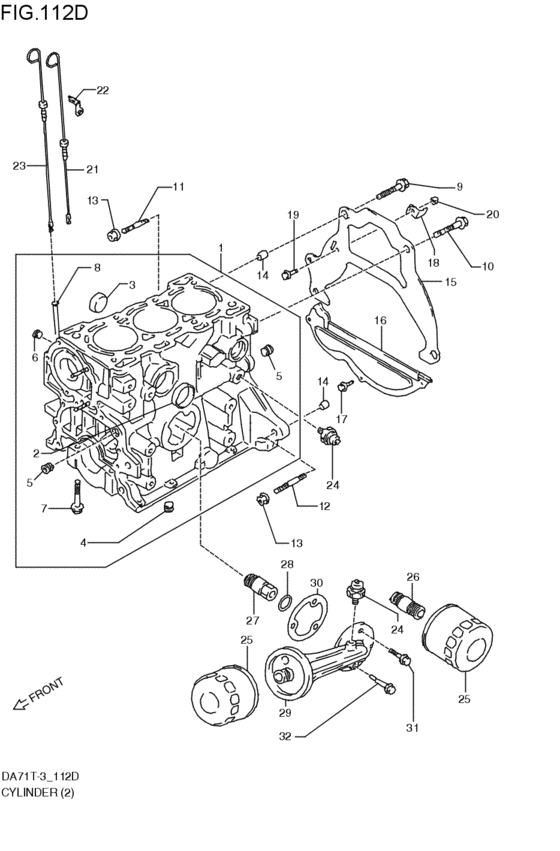

Cylinder (AT; 1987-08-01~1989-04-01) Diagram Suzuki CARRY/EVERY
- Year
- 1987 - 1989
- Sales region
- Japan
- Engine
- 2V
- supercharge
- CARB
- transmission
- AT
- grade
- EX
- number of the gears
- 3AT
- body
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-85013-000
ブロックアッシ,シリンダ
AT:2V:CARB; 1987-08-01~1989-04-01 |
11200-85013-000 |
— | ||
|
2
|
2
09241-30002-000
プラグ,OD:30
AT; 1987-08-01~1989-04-01 |
09241-30002-000 |
— | ||
| replacement | |||||
|
2
|
2
09241-30010-000 PLUGAT; 1987-08-01~1989-04-01 |
09241-30010-000 |
US $2.40 |
||
|
3
|
3
09241-20002-000
プラグ
AT; 1987-08-01~1989-04-01 |
09241-20002-000 |
— | ||
| replacement | |||||
|
3
|
3
09241-20006-000 PLUGPlug, crank pin oil AT; 1987-08-01~1989-04-01 |
09241-20006-000 |
from US $1.44 |
||
|
4
|
4
09246-06001-000 PLUG(1/4PT,H:7.5)AT; 1987-08-01~1989-04-01 |
09246-06001-000 |
US $12.50 |
||
|
5
|
5
09246-06002-000
PLUG
AT; 1987-08-01~1989-04-01 |
09246-06002-000 |
— | ||
| replacement | |||||
|
5
|
5
09246-08007-000 PLUGAT; 1987-08-01~1989-04-01 |
09246-08007-000 |
US $1.76 |
||
|
6
|
6
09246-05003-000
プラグ,1/8PT,H:5.5
AT:2V:CARB; 1987-08-01~1989-04-01 |
09246-05003-000 |
— | ||
| replacement | |||||
|
6
|
6
09246-05006-000 PLUG(1/8PT,H:5.5)AT:2V:CARB; 1987-08-01~1989-04-01 |
09246-05006-000 |
from US $1.42 |
||
|
7
|
7
09103-10022-000
BOLT(10X54)
AT; 1987-08-01~1989-04-01 |
09103-10022-000 |
— | ||
|
9
|
9
01537-10403-000 ボルトAT; 1987-08-01~1989-04-01 |
01537-10403-000 |
US $2.05 |
||
| replacements | |||||
|
9
|
9
01550-1040A-000 BOLTAT; 1987-08-01~1989-04-01 |
01550-1040A-000 |
from US $1.12 |
||
|
9
|
9
01550-1040B-000 BOLTAT; 1987-08-01~1989-04-01 |
01550-1040B-000 |
from US $3.74 |
||
|
10
|
10
01537-10453-000 ボルトAT; 1987-08-01~1989-04-01 |
01537-10453-000 |
US $2.05 |
||
| replacement | |||||
|
10
|
10
01550-1045B-000 BoltAT; 1987-08-01~1989-04-01 |
01550-1045B-000 |
from US $1.28 |
||
|
11
|
11
01421-10353-000
Stud 10x1.25x55
AT; 1987-08-01~1989-04-01 |
01421-10353-000 |
— | ||
| replacements | |||||
|
11
|
11
01421-1035A-000 BOLT,STUDAT; 1987-08-01~1989-04-01 |
01421-1035A-000 |
from US $4.13 |
||
|
11
|
11
01421-1035B-000 BOLT,STUDAT; 1987-08-01~1989-04-01 |
01421-1035B-000 |
US $17.30 |
||
|
12
|
12
01421-10403-000
New Genuine Part
AT; 1987-08-01~1989-04-01 |
01421-10403-000 |
— | ||
| replacement | |||||
|
12
|
12
01421-1040A-000 BOLT,STUDAT; 1987-08-01~1989-04-01 |
01421-1040A-000 |
from US $1.52 |
||
|
13
|
13
08316-16103-000 NutAT; 1987-08-01~1989-04-01 |
08316-16103-000 |
US $1.30 |
||
| replacement | |||||
|
13
|
13
08316-1010B-000 NUTAT; 1987-08-01~1989-04-01 |
08316-1010B-000 |
from US $0.80 |
||
|
14
|
14
09206-13011-000
ノックピン,10.4X13X14
AT; 1987-08-01~1989-04-01 |
09206-13011-000 |
— | ||
| replacement | |||||
|
14
|
14
04211-13149-000 PINAT; 1987-08-01~1989-04-01 |
04211-13149-000 |
from US $1.28 |
||
|
15
|
15
11311-85500-000
プレート,ハウジング,アッパ
AT; 1987-08-01~1989-04-01 |
11311-85500-000 |
— | ||
|
16
|
16
11320-85500-000
プレート,ハウジング,ロア
AT; 1987-08-01~1989-04-01 |
11320-85500-000 |
— | ||
|
17
|
17
01517-06103-000
ボルト
AT; 1987-08-01~1989-04-01 |
01517-06103-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0610A-000 BOLTAT; 1987-08-01~1989-04-01 |
01550-0610A-000 |
from US $0.80 |
||
|
17
|
17
01550-0610B-000 BoltBolt AT; 1987-08-01~1989-04-01 |
01550-0610B-000 |
from US $0.80 |
||
|
18
|
18
11331-78121-000
プレート,スパークタイミング
AT; 1987-08-01~1989-04-01 |
11331-78121-000 |
— | ||
|
19
|
19
01517-06103-000
ボルト
AT; 1987-08-01~1989-04-01 |
01517-06103-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0610A-000 BOLTAT; 1987-08-01~1989-04-01 |
01550-0610A-000 |
from US $0.80 |
||
|
19
|
19
01550-0610B-000 BoltBolt AT; 1987-08-01~1989-04-01 |
01550-0610B-000 |
from US $0.80 |
||
|
20
|
20
08310-11063-000 Nut m6x1x5AT; 1987-08-01~1989-04-01 |
08310-11063-000 |
US $1.07 |
||
| replacements | |||||
|
20
|
20
08310-0006B-000 NUTNut gear shift link rod AT; 1987-08-01~1989-04-01 |
08310-0006B-000 |
from US $0.76 |
||
|
20
|
20
08310-0006A-000 NUTAT; 1987-08-01~1989-04-01 |
08310-0006A-000 |
from US $0.76 |
||
|
21
|
21
16910-79110-000 GAUGE,OIL LEVELAT:V:CARB; 1987-08-01~1989-04-01 |
16910-79110-000 |
from US $9.43 |
||
|
22
|
22
16915-79100-000 SUPPORT,OIL LEVEL GAUGEAT; 1987-08-01~1989-04-01 |
16915-79100-000 |
US $9.94 |
||
|
24
|
24
37820-80001-000
Switch, pressure
AT; 1987-08-01~1989-04-01 |
37820-80001-000 |
— | ||
| replacement | |||||
|
24
|
24
37820-80002-000 SWITCH ASSY,OIL PRESSUREAT; 1987-08-01~1989-04-01 |
37820-80002-000 |
from US $18.93 |
||
|
25
|
25
16510-73002-000
フィルタ,オイル(TOKYO ROKI)
TOKYO ROKI; AT; 1987-08-01~1989-04-01 |
16510-73002-000 |
— | ||
| replacements | |||||
|
25
|
25
16510-60B00-CDN
Oil filter
TOKYO ROKI; AT; 1987-08-01~1989-04-01 |
16510-60B00-CDN |
— | ||
|
25
|
25
16510-82703-000 FILTER ASSY,OIL TOKYO ROKIFilter, oil TOKYO ROKI; AT; 1987-08-01~1989-04-01 |
16510-82703-000 |
from US $13.41 |
||
|
25
|
25
16510-73013-000
フィルタ,オイル
DENSO; AT; 1987-08-01~1989-04-01 |
16510-73013-000 |
— | ||
| replacements | |||||
|
25
|
25
16510-60B00-CDN
Oil filter
DENSO; AT; 1987-08-01~1989-04-01 |
16510-60B00-CDN |
— | ||
|
25
|
25
16510-82703-000 FILTER ASSY,OIL TOKYO ROKIFilter, oil DENSO; AT; 1987-08-01~1989-04-01 |
16510-82703-000 |
from US $13.41 |
||
|
25
|
25
16510-81404-000
Oil Filter
DENSO; AT; 1987-08-01~1989-04-01 |
16510-81404-000 |
— | ||
|
26
|
26
11241-73003-000 STAND,OIL FILTERAT; 1987-08-01~1989-04-01 |
11241-73003-000 |
US $6.40 |
||
