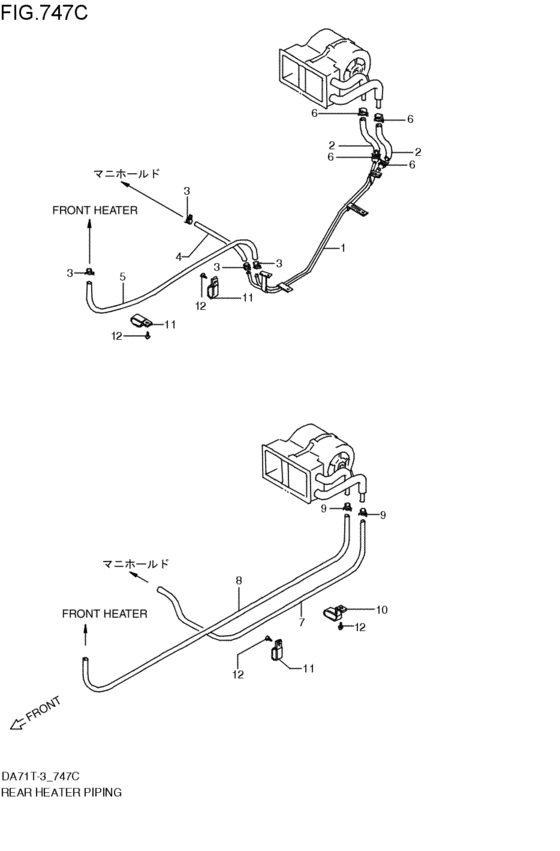

rear heater piping (V:X; 1987-08-01~1989-04-01) Diagram Suzuki CARRY/EVERY
- Year
- 1987 - 1989
- Sales region
- Japan
- Engine
- 2V
- supercharge
- CARB
- transmission
- AT
- grade
- EX
- number of the gears
- 3AT
- body
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
7
|
7
17874-72070-000 HOSEL:3000>1420; V:X:((2V,3V):CARB); 1987-08-01~1989-04-01 |
17874-72070-000 |
US $100.80 |
||
|
8
|
8
17874-72070-000 HOSEL:3000>2000; V:X:((2V,3V):CARB); 1987-08-01~1989-04-01 |
17874-72070-000 |
US $100.80 |
||
|
9
|
9
09401-18401-000
Clamp
V:X:((2V,3V):CARB); 1987-08-01~1989-04-01 |
09401-18401-000 |
— | ||
| replacement | |||||
|
9
|
9
09401-18404-000 CLIPV:X:((2V,3V):CARB); 1987-08-01~1989-04-01 |
09401-18404-000 |
from US $1.33 |
||
|
10
|
10
09403-19405-000
クランプ
V:X:((2V,3V):CARB); 1987-08-01~1989-04-01 |
09403-19405-000 |
— | ||
|
11
|
11
09403-19401-000
クランプ
V:X; 1987-08-01~1989-04-01 |
09403-19401-000 |
— | ||
| replacement | |||||
|
11
|
11
09403-19406-000 CLAMPV:X; 1987-08-01~1989-04-01 |
09403-19406-000 |
US $32.40 |
||
|
12
|
12
03141-06123-000
Screw 6x12
V:X:((2V,3V):CARB); 1987-08-01~1989-04-01 |
03141-06123-000 |
— | ||
| replacement | |||||
|
12
|
12
03141-0612A-000 SCREWV:X:((2V,3V):CARB); 1987-08-01~1989-04-01 |
03141-0612A-000 |
US $0.76 |
||
