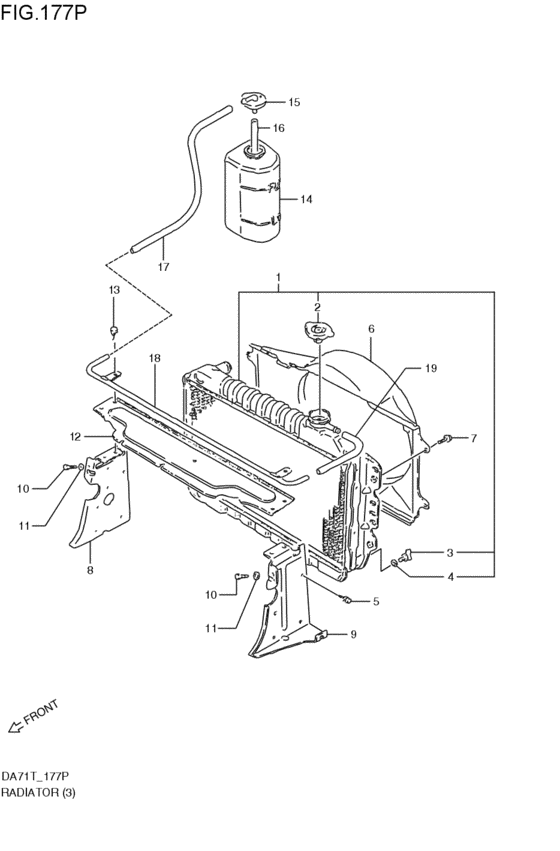

radiator (TURBO:TYPE1; 1985-03-01~1986-08-01) Diagram Suzuki CARRY/EVERY
- Year
- 1985 - 1986
- Sales region
- Japan
- Engine
- TURBO
- transmission
- 5MT
- grade
- V
- type
- TYPE1
- x01
- ER
- x02
- X
- x03
- EX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-85552-000 RADIATOR ASSYDENSO; TURBO:TYPE1; 1985-03-01~1986-08-01 |
17700-85552-000 |
US $591.36 |
||
|
2
|
2
17920-82020-000
キャップ
DENSO; TURBO:TYPE1; 1985-03-01~1986-08-01 |
17920-82020-000 |
— | ||
| replacement | |||||
|
2
|
2
17920-60B21-000 CAP,RADIATOR 0.9DENSO; TURBO:TYPE1; 1985-03-01~1986-08-01 |
17920-60B21-000 |
US $15.36 |
||
|
3
|
3
17751-82000-000 PLUG,RADIATOR DRAINDENSO; TURBO:TYPE1; 1985-03-01~1986-08-01 |
17751-82000-000 |
US $4.75 |
||
|
4
|
4
17759-63210-000
GASKET
DENSO; TURBO:TYPE1; 1985-03-01~1986-08-01 |
17759-63210-000 |
— | ||
| replacement | |||||
|
4
|
4
17759-63211-000 GasketDENSO; TURBO:TYPE1; 1985-03-01~1986-08-01 |
17759-63211-000 |
US $1.18 |
||
|
5
|
5
01517-06103-000
ボルト
TURBO:TYPE1; 1985-03-01~1986-08-01 |
01517-06103-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0610A-000 BOLTTURBO:TYPE1; 1985-03-01~1986-08-01 |
01550-0610A-000 |
from US $0.80 |
||
|
5
|
5
01550-0610B-000 BoltBolt TURBO:TYPE1; 1985-03-01~1986-08-01 |
01550-0610B-000 |
from US $0.80 |
||
|
6
|
6
17761-85200-000 SHROUD,FANTURBO:TYPE1; 1985-03-01~1986-08-01 |
17761-85200-000 |
US $40.80 |
||
|
7
|
7
01517-06123-000
Bolt
TURBO:TYPE1; 1985-03-01~1986-08-01 |
01517-06123-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0612B-000 BOLTBolt, clamp TURBO:TYPE1; 1985-03-01~1986-08-01 |
01550-0612B-000 |
from US $0.76 |
||
|
7
|
7
01550-0612A-000 BOLTTURBO:TYPE1; 1985-03-01~1986-08-01 |
01550-0612A-000 |
from US $0.76 |
||
|
8
|
8
17811-85210-000 BRACKET,RDTR,RTURBO:TYPE1; 1985-03-01~1986-08-01 |
17811-85210-000 |
US $8.48 |
||
|
9
|
9
17821-85210-000
ブラケット,ラジエータ,レフト
TURBO:TYPE1; 1985-03-01~1986-08-01 |
17821-85210-000 |
— | ||
| replacement | |||||
|
9
|
9
17821-85580-000
BRACKET,RDTR,L
TURBO:TYPE1; 1985-03-01~1986-08-01 |
17821-85580-000 |
— | ||
|
10
|
10
01107-06163-000 Bolt m6x1x16TURBO:TYPE1; 1985-03-01~1986-08-01 |
01107-06163-000 |
US $1.09 |
||
| replacement | |||||
|
10
|
10
01500-0616A-000 BoltTURBO:TYPE1; 1985-03-01~1986-08-01 |
01500-0616A-000 |
from US $0.76 |
||
|
11
|
11
09160-06028-000 WASHER(6.5X18X1)Washer TURBO:TYPE1; 1985-03-01~1986-08-01 |
09160-06028-000 |
from US $0.96 |
||
|
12
|
12
17831-85210-000 COVER,RADIATOR,UPPERTURBO:TYPE1; 1985-03-01~1986-08-01 |
17831-85210-000 |
US $11.84 |
||
|
13
|
13
01517-06103-000
ボルト
TURBO:TYPE1; 1985-03-01~1986-08-01 |
01517-06103-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0610A-000 BOLTTURBO:TYPE1; 1985-03-01~1986-08-01 |
01550-0610A-000 |
from US $0.80 |
||
|
13
|
13
01550-0610B-000 BoltBolt TURBO:TYPE1; 1985-03-01~1986-08-01 |
01550-0610B-000 |
from US $0.80 |
||
|
14
|
14
17931-72000-000
タンク,ウォータリザーブ
TURBO:TYPE1; 1985-03-01~1986-08-01 |
17931-72000-000 |
— | ||
| replacement | |||||
|
14
|
14
17931-80001-000 TANK,WATER RESERVETURBO:TYPE1; 1985-03-01~1986-08-01 |
17931-80001-000 |
from US $15.35 |
||
|
15
|
15
17932-78100-000 CAP,RESERVE TANKTURBO:TYPE1; 1985-03-01~1986-08-01 |
17932-78100-000 |
US $1.60 |
||
|
16
|
16
09352-70121-300
Hose 7x12.1x600
L:300>170; TURBO:TYPE1; 1985-03-01~1986-08-01 |
09352-70121-300 |
— | ||
| replacement | |||||
|
16
|
16
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:300>170; TURBO:TYPE1; 1985-03-01~1986-08-01 |
09352-70121-600 |
from US $4.84 |
||
|
17
|
17
09352-70121-300
Hose 7x12.1x600
L:300>170; TURBO:TYPE1; 1985-03-01~1986-08-01 |
09352-70121-300 |
— | ||
| replacement | |||||
|
17
|
17
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:300>170; TURBO:TYPE1; 1985-03-01~1986-08-01 |
09352-70121-600 |
from US $4.84 |
||
|
18
|
18
17940-85550-000
パイプ,リザーブタンク
TURBO:TYPE1; 1985-03-01~1986-08-01 |
17940-85550-000 |
— | ||
|
19
|
19
09352-70121-300
Hose 7x12.1x600
L:300>150; TURBO:TYPE1; 1985-03-01~1986-08-01 |
09352-70121-300 |
— | ||
| replacement | |||||
|
19
|
19
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:300>150; TURBO:TYPE1; 1985-03-01~1986-08-01 |
09352-70121-600 |
from US $4.84 |
||
