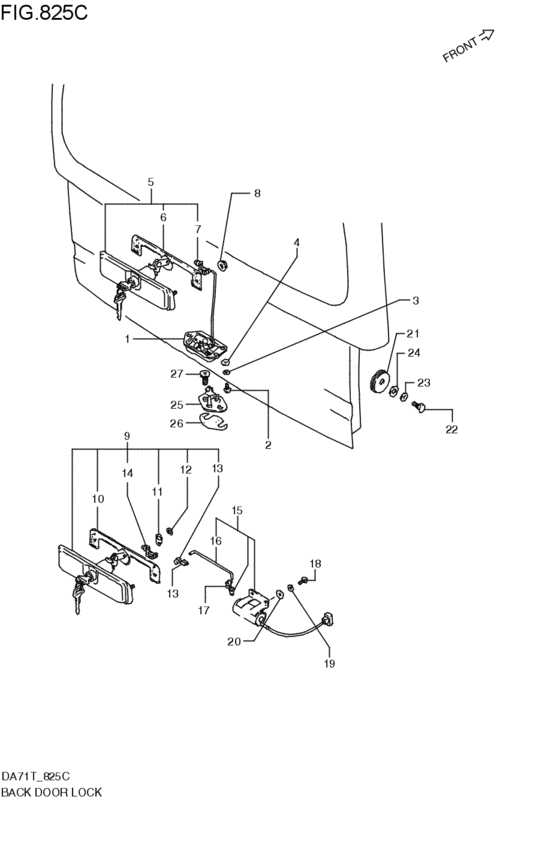

back door lock (V; 1985-03-01~1987-08-01) Diagram Suzuki CARRY/EVERY
- Year
- 1985 - 1986
- Sales region
- Japan
- Engine
- TURBO
- transmission
- 5MT
- grade
- V
- type
- TYPE1
- x01
- ER
- x02
- X
- x03
- EX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82510-85700-000 LATCH ASSY,BACK DRV:(PA,PB,PL,PG,EX,AX); 1985-03-01~1987-08-01 |
82510-85700-000 |
US $40.48 |
||
|
2
|
2
02112-06126-000
Screw 6x12
V; 1985-03-01~1987-08-01 |
02112-06126-000 |
— | ||
| replacements | |||||
|
2
|
2
02112-0612B-000 SCREWScrew, oil guide plate V; 1985-03-01~1987-08-01 |
02112-0612B-000 |
from US $0.76 |
||
|
2
|
2
02112-0612A-000 SCREWV; 1985-03-01~1987-08-01 |
02112-0612A-000 |
from US $0.76 |
||
|
3
|
3
08321-21066-000
Lock washer
V; 1985-03-01~1987-08-01 |
08321-21066-000 |
— | ||
| replacement | |||||
|
3
|
3
08321-0106A-000 WASHER,LOCKV; 1985-03-01~1987-08-01 |
08321-0106A-000 |
from US $0.76 |
||
|
4
|
4
08322-21066-000
Washer
V; 1985-03-01~1987-08-01 |
08322-21066-000 |
— | ||
| replacement | |||||
|
4
|
4
08322-0106B-000 WASHERV; 1985-03-01~1987-08-01 |
08322-0106B-000 |
from US $0.76 |
||
|
5
|
5
82500-85811-35R
シリンダセット,バックドアロック(ブラック)
ブラック; V; 1985-03-01~1987-08-01 |
82500-85811-35R |
— | ||
| replacement | |||||
|
5
|
5
82500-85811-0CB CYLINDER ASSY,DR LOCKブラック; V; 1985-03-01~1987-08-01 |
82500-85811-0CB |
US $63.20 |
||
|
9
|
9
82500-85822-35R
シリンダセット,バックドアロック(ブラック)
ブラック; V:(P,G:PG,X); 1985-03-01~1987-08-01 |
82500-85822-35R |
— | ||
| replacement | |||||
|
9
|
9
82500-85822-0CB
CYLINDER ASSY,DR LOCK
ブラック; V:(P,G:PG,X); 1985-03-01~1987-08-01 |
82500-85822-0CB |
— | ||
|
10
|
10
82586-85500-000 PACKING,BACK DOOR CYL LOCKV:(P,G,X); 1985-03-01~1987-08-01 |
82586-85500-000 |
US $6.88 |
||
|
11
|
11
82588-85510-000
レバー,バックドアオープナ
V:(P,G,X); 1985-03-01~1987-08-01 |
82588-85510-000 |
— | ||
|
12
|
12
82589-85510-000
Eリング,バックドアオープナ
V:(P,G,X); 1985-03-01~1987-08-01 |
82589-85510-000 |
— | ||
|
13
|
13
82593-82000-000
PIN,BACK DOOR OPENER ROD CYL
V:(P,G,X); 1985-03-01~1987-08-01 |
82593-82000-000 |
— | ||
|
14
|
14
09209-05016-000 PINV:(P,G,X); 1985-03-01~1987-08-01 |
09209-05016-000 |
US $1.67 |
||
|
15
|
15
82550-85512-000
SOLENOID,BACK DOOR LATCH
V:(P,G,X); 1985-03-01~1987-08-01 |
82550-85512-000 |
— | ||
|
16
|
16
82558-85510-000
ロッド,バックドアオープナ
V:(P,G,X); 1985-03-01~1987-08-01 |
82558-85510-000 |
— | ||
|
17
|
17
82559-82000-000
Pin,back door opener rod
V:(P,G,X); 1985-03-01~1987-08-01 |
82559-82000-000 |
— | ||
|
18
|
18
02112-06126-000
Screw 6x12
V:(P,G,X); 1985-03-01~1987-08-01 |
02112-06126-000 |
— | ||
| replacements | |||||
|
18
|
18
02112-0612B-000 SCREWScrew, oil guide plate V:(P,G,X); 1985-03-01~1987-08-01 |
02112-0612B-000 |
from US $0.76 |
||
|
18
|
18
02112-0612A-000 SCREWV:(P,G,X); 1985-03-01~1987-08-01 |
02112-0612A-000 |
from US $0.76 |
||
|
19
|
19
08321-21066-000
Lock washer
V:(P,G,X); 1985-03-01~1987-08-01 |
08321-21066-000 |
— | ||
| replacement | |||||
|
19
|
19
08321-0106A-000 WASHER,LOCKV:(P,G,X); 1985-03-01~1987-08-01 |
08321-0106A-000 |
from US $0.76 |
||
|
20
|
20
08322-21066-000
Washer
V:(P,G,X); 1985-03-01~1987-08-01 |
08322-21066-000 |
— | ||
| replacement | |||||
|
20
|
20
08322-0106B-000 WASHERV:(P,G,X); 1985-03-01~1987-08-01 |
08322-0106B-000 |
from US $0.76 |
||
|
21
|
21
82761-85500-000 MALE,BACK DR SIDE STOP DRV; 1985-03-01~1987-08-01 |
82761-85500-000 |
US $8.32 |
||
|
22
|
22
01107-08166-000
Bolt m8x1.25x16
V; 1985-03-01~1987-08-01 |
01107-08166-000 |
— | ||
| replacement | |||||
|
22
|
22
01500-0816B-000 BoltBolt V; 1985-03-01~1987-08-01 |
01500-0816B-000 |
from US $0.80 |
||
|
23
|
23
08321-21086-000
Wsherlck8.2x15.2x1.6
V; 1985-03-01~1987-08-01 |
08321-21086-000 |
— | ||
| replacements | |||||
|
23
|
23
08321-0108B-000 WASHER,LOCKV; 1985-03-01~1987-08-01 |
08321-0108B-000 |
from US $0.76 |
||
|
23
|
23
08321-0108A-000 WASHER,LOCKV; 1985-03-01~1987-08-01 |
08321-0108A-000 |
from US $0.80 |
||
|
24
|
24
09160-08010-000 Washer (8.2x20x1.6)V; 1985-03-01~1987-08-01 |
09160-08010-000 |
US $1.21 |
||
| replacement | |||||
|
24
|
24
09160-08054-000 WASHER(8.5X20X1.6)V; 1985-03-01~1987-08-01 |
09160-08054-000 |
from US $0.91 |
||
|
25
|
25
82650-85500-000 STRIKER,BACK DOOR LATCHV; 1985-03-01~1987-08-01 |
82650-85500-000 |
US $20.80 |
||
|
26
|
26
78199-78000-000 SPACER,DOOR LOCK STRIKERV; 1985-03-01~1987-08-01 |
78199-78000-000 |
US $1.60 |
||
|
27
|
27
09137-08004-000 SCREW(8X18)V; 1985-03-01~1987-08-01 |
09137-08004-000 |
from US $0.90 |
||
| replacement | |||||
|
27
|
27
09137-08011-000 SCREW(8X18)V; 1985-03-01~1987-08-01 |
09137-08011-000 |
US $1.44 |
||
