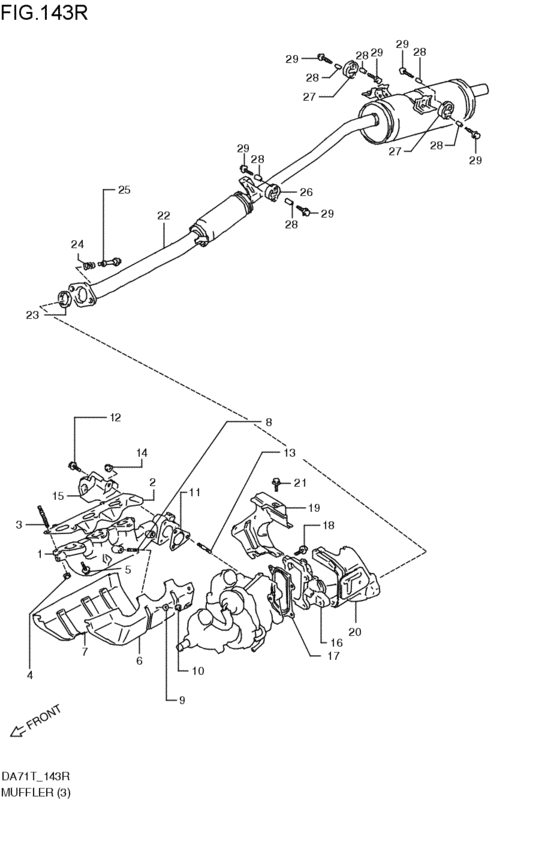

muffler (TURBO; 1985-03-01~1987-08-01) Diagram Suzuki CARRY/EVERY
- Year
- 1985 - 1986
- Sales region
- Japan
- Engine
- TURBO
- transmission
- 5MT
- grade
- V
- type
- TYPE1
- x01
- ER
- x02
- X
- x03
- EX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-85553-000
マニホールド,エキゾースト
TURBO; 1985-03-01~1987-08-01 |
14111-85553-000 |
— | ||
| replacement | |||||
|
1
|
1
14111-85554-000 マニホールド,エキゾーストTURBO; 1985-03-01~1987-08-01 |
14111-85554-000 |
US $145.73 |
||
|
2
|
2
14140-85551-000
ガスケット,エキゾーストマニホールド
TURBO; 1985-03-01~1987-08-01 |
14140-85551-000 |
— | ||
| replacement | |||||
|
2
|
2
14141-67F02-000 GASKET,EXH MANFTURBO; 1985-03-01~1987-08-01 |
14141-67F02-000 |
from US $15.91 |
||
|
3
|
3
01411-08253-000
New Genuine Part
TURBO; 1985-03-01~1987-08-01 |
01411-08253-000 |
— | ||
| replacement | |||||
|
3
|
3
01411-0825A-000 BOLT,STUDTURBO; 1985-03-01~1987-08-01 |
01411-0825A-000 |
US $1.12 |
||
|
4
|
4
08310-11083-000
ナット
TURBO; 1985-03-01~1987-08-01 |
08310-11083-000 |
— | ||
| replacements | |||||
|
4
|
4
08310-0008A-000 NUTNut, bead stopper TURBO; 1985-03-01~1987-08-01 |
08310-0008A-000 |
from US $0.76 |
||
|
4
|
4
08310-0008B-000 NUTTURBO; 1985-03-01~1987-08-01 |
08310-0008B-000 |
from US $0.80 |
||
|
5
|
5
01107-08253-000 Bolt m8x1.25x25TURBO; 1985-03-01~1987-08-01 |
01107-08253-000 |
US $1.26 |
||
| replacement | |||||
|
5
|
5
01500-0825A-000 BoltTURBO; 1985-03-01~1987-08-01 |
01500-0825A-000 |
from US $0.91 |
||
|
6
|
6
14121-85551-000
カバー,エキゾーストマニホールド,アッパ
TURBO; 1985-03-01~1987-08-01 |
14121-85551-000 |
— | ||
| replacements | |||||
|
6
|
6
14122-75D50-000
カバー,エキゾースト,NO.2
TURBO; 1985-03-01~1987-08-01 |
14122-75D50-000 |
— | ||
|
6
|
6
14132-85551-000
カバー,エキゾーストフランジ
TURBO; 1985-03-01~1987-08-01 |
14132-85551-000 |
— | ||
|
7
|
7
14131-85550-000
カバー,エキゾーストマニホールド,ロア
TURBO; 1985-03-01~1987-08-01 |
14131-85550-000 |
— | ||
| replacement | |||||
|
7
|
7
14131-53F50-000
カバー,エキゾーストマニホールド,ロア
TURBO; 1985-03-01~1987-08-01 |
14131-53F50-000 |
— | ||
|
8
|
8
01411-06123-000
Bolt, stud
TURBO; 1985-03-01~1987-08-01 |
01411-06123-000 |
— | ||
| replacement | |||||
|
8
|
8
01411-0612A-000 BOLT,STUDTURBO; 1985-03-01~1987-08-01 |
01411-0612A-000 |
from US $0.67 |
||
|
9
|
9
08322-21063-000
Washer
TURBO; 1985-03-01~1987-08-01 |
08322-21063-000 |
— | ||
| replacement | |||||
|
9
|
9
08322-0106B-000 WASHERTURBO; 1985-03-01~1987-08-01 |
08322-0106B-000 |
from US $0.76 |
||
|
10
|
10
08310-11063-000 Nut m6x1x5TURBO; 1985-03-01~1987-08-01 |
08310-11063-000 |
US $1.07 |
||
| replacements | |||||
|
10
|
10
08310-0006B-000 NUTNut gear shift link rod TURBO; 1985-03-01~1987-08-01 |
08310-0006B-000 |
from US $0.76 |
||
|
10
|
10
08310-0006A-000 NUTTURBO; 1985-03-01~1987-08-01 |
08310-0006A-000 |
from US $0.76 |
||
|
11
|
11
14181-81050-000
ガスケット,エキゾースト,NO.1
TURBO; 1985-03-01~1987-08-01 |
14181-81050-000 |
— | ||
| replacement | |||||
|
11
|
11
14181-81051-000 GASKET,EXH FLANGETURBO; 1985-03-01~1987-08-01 |
14181-81051-000 |
US $17.60 |
||
|
12
|
12
09103-08200-000
ボルト,8X56
TURBO; 1985-03-01~1987-08-01 |
09103-08200-000 |
— | ||
|
13
|
13
09108-08204-000
スタッドボルト
TURBO; 1985-03-01~1987-08-01 |
09108-08204-000 |
— | ||
|
14
|
14
09159-08056-000 NUTTURBO; 1985-03-01~1987-08-01 |
09159-08056-000 |
US $1.28 |
||
|
15
|
15
14132-85550-000
カバー,エキゾーストフランジ
TURBO; 1985-03-01~1987-08-01 |
14132-85550-000 |
— | ||
| replacements | |||||
|
15
|
15
14122-75D50-000
カバー,エキゾースト,NO.2
TURBO; 1985-03-01~1987-08-01 |
14122-75D50-000 |
— | ||
|
15
|
15
14132-85551-000
カバー,エキゾーストフランジ
TURBO; 1985-03-01~1987-08-01 |
14132-85551-000 |
— | ||
|
16
|
16
14115-85550-000
パイプ,エキゾースト
TURBO; 1985-03-01~1987-08-01 |
14115-85550-000 |
— | ||
|
17
|
17
14182-85550-000
ガスケット,エキゾーストパイプ
TURBO; 1985-03-01~1987-08-01 |
14182-85550-000 |
— | ||
| replacement | |||||
|
17
|
17
14182-85551-000 GASKET,EXH PIPEGasket, t/c outlet pipe TURBO; 1985-03-01~1987-08-01 |
14182-85551-000 |
from US $5.31 |
||
|
18
|
18
09103-08117-000
ボルト,8X20
TURBO; 1985-03-01~1987-08-01 |
09103-08117-000 |
— | ||
|
19
|
19
14135-85551-000
カバー,エキゾーストパイプ,ライト
TURBO; 1985-03-01~1987-08-01 |
14135-85551-000 |
— | ||
|
20
|
20
14250-85551-000
カバー,エキゾーストパイプ,レフト
TURBO; 1985-03-01~1987-08-01 |
14250-85551-000 |
— | ||
|
21
|
21
01537-06102-000
Bolt
TURBO; 1985-03-01~1987-08-01 |
01537-06102-000 |
— | ||
| replacement | |||||
|
21
|
21
01550-06107-000 BOLTTURBO; 1985-03-01~1987-08-01 |
01550-06107-000 |
from US $0.80 |
||
|
22
|
22
14300-85550-000
マフラ
TURBO; 1985-03-01~1986-08-01 |
14300-85550-000 |
— | ||
| replacement | |||||
|
22
|
22
14300-855V2-000
マフラ
TURBO; 1985-03-01~1986-08-01 |
14300-855V2-000 |
— | ||
|
22
|
22
14300-85571-000
マフラ
TURBO; 1986-08-01~1987-08-01 |
14300-85571-000 |
— | ||
| replacement | |||||
|
22
|
22
14300-855V2-000
マフラ
TURBO; 1986-08-01~1987-08-01 |
14300-855V2-000 |
— | ||
|
23
|
23
14183-82000-000
リング,シール
TURBO; 1985-03-01~1987-08-01 |
14183-82000-000 |
— | ||
| replacement | |||||
|
23
|
23
14183-820V0-000 RING,SEAL EXH PIPETURBO; 1985-03-01~1987-08-01 |
14183-820V0-000 |
US $35.20 |
||
|
24
|
24
14492-82001-000 SPRING,EXH PIPECHKK; TURBO; 1985-03-01~1987-08-01 |
14492-82001-000 |
US $16.80 |
||
|
25
|
25
09119-10039-000
Bolt
TURBO; 1985-03-01~1987-08-01 |
09119-10039-000 |
— | ||
| replacement | |||||
|
25
|
25
14493-76G01-000 BOLT,EXH PIPETURBO; 1985-03-01~1987-08-01 |
14493-76G01-000 |
from US $3.04 |
||
|
26
|
26
14282-78010-000
マウンチング,マフラ
TURBO; 1985-03-01~1987-08-01 |
14282-78010-000 |
— | ||
| replacement | |||||
|
26
|
26
14281-60G11-000 MOUNTING,MUFFLER(HS60)TURBO; 1985-03-01~1987-08-01 |
14281-60G11-000 |
US $5.78 |
||
|
27
|
27
14281-79010-000
Mounting, muffler
TURBO; 1985-03-01~1987-08-01 |
14281-79010-000 |
— | ||
| replacement | |||||
|
27
|
27
14281-60G11-000 MOUNTING,MUFFLER(HS60)TURBO; 1985-03-01~1987-08-01 |
14281-60G11-000 |
US $5.78 |
||
|
28
|
28
09180-08057-000
Spacer
TURBO; 1985-03-01~1987-08-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
28
|
28
09180-08227-000 SPACER(8.2X12.5X23.5)TURBO; 1985-03-01~1987-08-01 |
09180-08227-000 |
from US $1.92 |
||
|
29
|
29
01517-06353-000
ボルト
TURBO; 1985-03-01~1987-08-01 |
01517-06353-000 |
— | ||
| replacements | |||||
|
29
|
29
01550-0635B-000 BoltTURBO; 1985-03-01~1987-08-01 |
01550-0635B-000 |
from US $0.91 |
||
|
29
|
29
01550-0635A-000 BoltTURBO; 1985-03-01~1987-08-01 |
01550-0635A-000 |
from US $0.96 |
||
