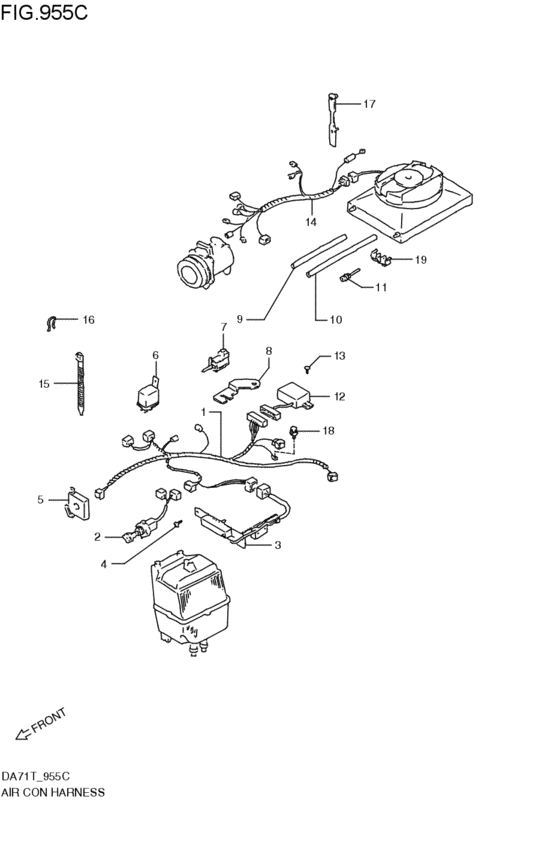

air-conditioner harness (ジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01) Diagram Suzuki CARRY/EVERY
- Year
- 1986 - 1987
- Sales region
- Japan
- Engine
- CARB
- transmission
- 5MT
- grade
- V
- type
- TYPE2
- x01
- PR
- x02
- G
- x03
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95581-85500-000
ハーネス,ワイヤリング,NO.1
ジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
95581-85500-000 |
— | ||
|
2
|
2
95571-85000-000
SWITCH ASSY,AIR CON
ジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
95571-85000-000 |
— | ||
|
3
|
3
95590-85001-000 SWITCH ASSY,AIR CONTROLジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
95590-85001-000 |
US $49.31 |
||
|
4
|
4
03241-04126-000
Screw l:12
ジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
03241-04126-000 |
— | ||
| replacement | |||||
|
4
|
4
03242-0412B-000 SCREWジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
03242-0412B-000 |
from US $0.80 |
||
|
5
|
5
95579-85000-000
スイッチアッシ,アクセルオフ
ジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
95579-85000-000 |
— | ||
|
6
|
6
95572-78041-000
Relay,cooling fan
ジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
95572-78041-000 |
— | ||
|
7
|
7
95551-79640-000
バルブ,アイドルアップ
ジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
95551-79640-000 |
— | ||
| replacement | |||||
|
7
|
7
95160-70B00-000 VSV,IDLE UPジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
95160-70B00-000 |
US $59.98 |
||
|
8
|
8
95989-85000-000 BRACKET,VSVジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
95989-85000-000 |
US $3.72 |
||
|
9
|
9
09343-03044-000
ホース,#6/3.5X7.5X150
ジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
09343-03044-000 |
— | ||
| replacements | |||||
|
9
|
9
09355-35754-601
HOSE(3.5X7.5X601)
ジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
09355-35754-601 |
— | ||
|
9
|
9
09355-35006-601 Hose(3.5X7.5X601)ジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
09355-35006-601 |
from US $5.78 |
||
|
10
|
10
09343-03042-000
New Genuine Part
ジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
09343-03042-000 |
— | ||
| replacements | |||||
|
10
|
10
09355-35754-601
HOSE(3.5X7.5X601)
ジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
09355-35754-601 |
— | ||
|
10
|
10
09355-35006-601 Hose(3.5X7.5X601)ジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
09355-35006-601 |
from US $5.78 |
||
|
11
|
11
95562-78190-000
ユニオン,バキュームホース
ジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
95562-78190-000 |
— | ||
| replacement | |||||
|
11
|
11
95562-78540-000 UNION,VACUUM HOSEジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
95562-78540-000 |
US $9.83 |
||
|
12
|
12
95575-85500-000
AMPLIFIER,A/C
ジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
95575-85500-000 |
— | ||
|
13
|
13
03541-06166-000
スクリュ
ジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
03541-06166-000 |
— | ||
| replacement | |||||
|
13
|
13
03541-0616A-000 SCREWジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
03541-0616A-000 |
from US $0.64 |
||
|
14
|
14
95582-85502-000
ハーネス,ワイヤリング,NO.2
ジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
95582-85502-000 |
— | ||
| replacements | |||||
|
14
|
14
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap ジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
09407-14403-000 |
from US $2.08 |
||
|
14
|
14
95533-68C50-000 HARNESS,A/C FUSEジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
95533-68C50-000 |
US $10.12 |
||
|
15
|
15
09407-14407-000 CLAMP(L:145)Band ジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
09407-14407-000 |
from US $2.08 |
||
|
16
|
16
09408-00012-000 CLIP(ID:11.5)Clamp, stop switch lead (id:11.5) ジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
09408-00012-000 |
from US $3.37 |
||
|
17
|
17
09403-06310-000 CLAMPジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
09403-06310-000 |
from US $2.15 |
||
|
18
|
18
01517-06106-000
Bolt, t/f shift plate
ジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
01517-06106-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0610B-000 BoltBolt ジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
01550-0610B-000 |
from US $0.80 |
||
|
18
|
18
01550-0610A-000 BOLTジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
01550-0610A-000 |
from US $0.80 |
||
|
19
|
19
09408-00034-000
クリップ
ジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
09408-00034-000 |
— | ||
| replacement | |||||
|
19
|
19
09408-00035-000 CLIPClamp ジョイポップシヨウ; V:SG; 1985-03-01~1987-08-01 |
09408-00035-000 |
US $17.70 |
||
