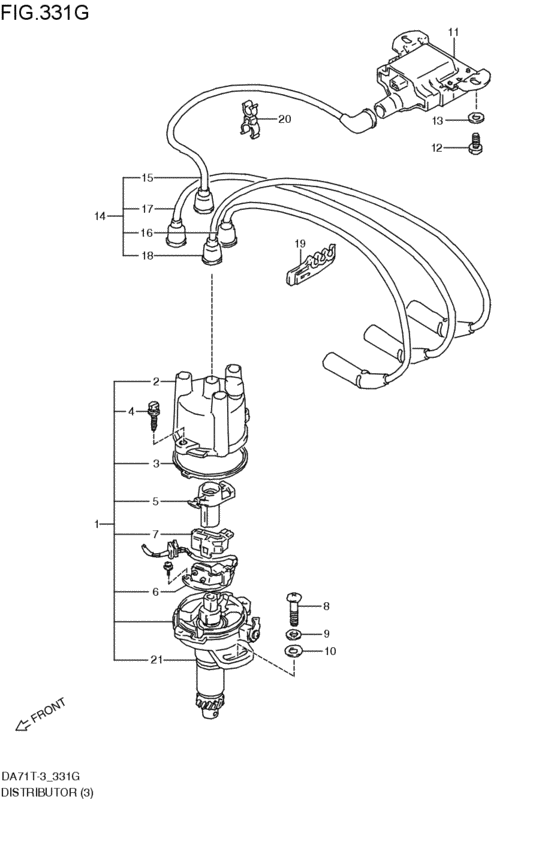

distributor (2V:TURBO; 1987-08-01~1989-04-01) Diagram Suzuki CARRY/EVERY
- Year
- 1987 - 1989
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- transmission
- MT
- grade
- RX
- number of the gears
- 5MT
- body
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-85570-000
ディストリビュータアッシ
DENSO; 2V:TURBO; 1987-08-01~1989-04-01 |
33100-85570-000 |
— | ||
| replacements | |||||
|
1
|
1
33100-85571-000
ディストリビュータアッシ
DENSO; 2V:TURBO; 1987-08-01~1989-04-01 |
33100-85571-000 |
— | ||
|
1
|
1
33460-50F40-000 HOSE ASSY,DISTRIBUTORDENSO; 2V:TURBO; 1987-08-01~1989-04-01 |
33460-50F40-000 |
US $6.96 |
||
|
2
|
2
33321-85570-000 CAP,DISTRIBUTORDENSO; 2V:TURBO; 1987-08-01~1989-04-01 |
33321-85570-000 |
US $43.20 |
||
|
3
|
3
33324-86510-000 PACKING,CAPDENSO; 2V:TURBO; 1987-08-01~1989-04-01 |
33324-86510-000 |
from US $2.08 |
||
|
4
|
4
33237-86510-000
ボルト
DENSO; 2V:TURBO; 1987-08-01~1989-04-01 |
33237-86510-000 |
— | ||
| replacements | |||||
|
4
|
4
01580-0520B-000 BOLTDENSO; 2V:TURBO; 1987-08-01~1989-04-01 |
01580-0520B-000 |
US $15.50 |
||
|
4
|
4
01174-05203-000
New Genuine Part
DENSO; 2V:TURBO; 1987-08-01~1989-04-01 |
01174-05203-000 |
— | ||
|
5
|
5
33310-85570-000 ROTOR ASSYDENSO; 2V:TURBO; 1987-08-01~1989-04-01 |
33310-85570-000 |
US $15.52 |
||
|
6
|
6
33140-85570-000
ジェネレータ,シグナル
DENSO; 2V:TURBO; 1987-08-01~1989-04-01 |
33140-85570-000 |
— | ||
|
7
|
7
33279-80020-000 COVER,GENERATOR DUSTDENSO; 2V:TURBO; 1987-08-01~1989-04-01 |
33279-80020-000 |
US $9.44 |
||
|
8
|
8
09125-08008-000
スクリュ,8X30
2V:TURBO; 1987-08-01~1989-04-01 |
09125-08008-000 |
— | ||
|
9
|
9
08321-21088-000
Lock washer
2V:TURBO; 1987-08-01~1989-04-01 |
08321-21088-000 |
— | ||
| replacement | |||||
|
9
|
9
08321-01087-000 WASHER,LOCKWasher, lock 2V:TURBO; 1987-08-01~1989-04-01 |
08321-01087-000 |
from US $0.76 |
||
|
10
|
10
09160-08030-000
Washer
2V:TURBO; 1987-08-01~1989-04-01 |
09160-08030-000 |
— | ||
| replacement | |||||
|
10
|
10
09160-08128-000 WASHER(8.5X22X3.2)2V:TURBO; 1987-08-01~1989-04-01 |
09160-08128-000 |
from US $2.12 |
||
|
11
|
11
33410-85570-000
コイルアッシ,イグニツシヨン
DENSO; 2V:TURBO; 1987-08-01~1989-04-01 |
33410-85570-000 |
— | ||
|
12
|
12
01107-06126-000
Bolt 6x12
2V:TURBO; 1987-08-01~1989-04-01 |
01107-06126-000 |
— | ||
| replacement | |||||
|
12
|
12
01500-0612A-000 BOLT2V:TURBO; 1987-08-01~1989-04-01 |
01500-0612A-000 |
from US $0.76 |
||
|
13
|
13
09160-06019-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) 2V:TURBO; 1987-08-01~1989-04-01 |
09160-06019-000 |
from US $0.80 |
||
|
14
|
14
33705-85X51-000
コードセット,ハイテンション
2V:TURBO; 1987-08-01~1989-04-01 |
33705-85X51-000 |
— | ||
|
15
|
15
33710-85570-000
CORD,HT NO.1
2V:TURBO; 1987-08-01~1989-04-01 |
33710-85570-000 |
— | ||
|
16
|
16
33730-85551-000
コード,ハイテンション,NO.2
2V:TURBO; 1987-08-01~1989-04-01 |
33730-85551-000 |
— | ||
|
17
|
17
33740-85570-000
CORD,HT NO.3
2V:TURBO; 1987-08-01~1989-04-01 |
33740-85570-000 |
— | ||
|
18
|
18
33750-85570-000
コード,ハイテンション,NO.4
2V:TURBO; 1987-08-01~1989-04-01 |
33750-85570-000 |
— | ||
| replacement | |||||
|
18
|
18
33750-85571-000 CORD,HT NO.42V:TURBO; 1987-08-01~1989-04-01 |
33750-85571-000 |
US $29.07 |
||
|
19
|
19
33881-82011-000 CLAMP,HIGH TENSION CORD2V:TURBO; 1987-08-01~1989-04-01 |
33881-82011-000 |
US $3.64 |
||
|
20
|
20
09408-00078-000 CLAMPClamp, evaporation hose 2V:TURBO; 1987-08-01~1989-04-01 |
09408-00078-000 |
from US $3.43 |
||
|
20
|
20
09408-00119-000
Clamp, cable & brake hose
2V:TURBO; 1987-08-01~1989-04-01 |
09408-00119-000 |
— | ||
| replacement | |||||
|
20
|
20
09408-00056-000 CLIP2V:TURBO; 1987-08-01~1989-04-01 |
09408-00056-000 |
from US $2.38 |
||
|
21
|
21
33278-85310-000 O-RING2V:TURBO; 1987-08-01~1989-04-01 |
33278-85310-000 |
from US $2.74 |
||
