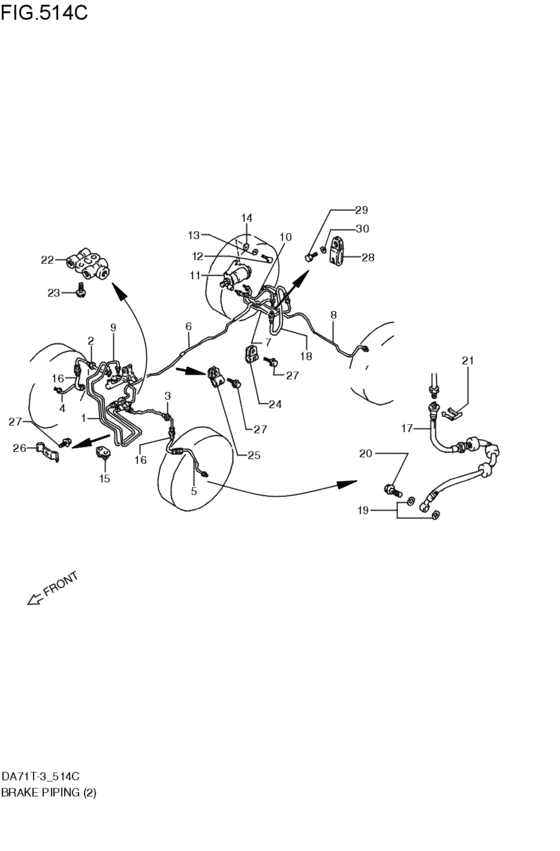

brakes piping (V; 1987-08-01~1989-04-01) Diagram Suzuki CARRY/EVERY
- Year
- 1987 - 1989
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- transmission
- MT
- grade
- RX
- number of the gears
- 5MT
- body
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-85410-000
パイプ,ブレーキ,NO.1
V; 1987-08-01~1989-04-01 |
51410-85410-000 |
— | ||
|
2
|
2
51420-85000-000
パイプ,ブレーキ,NO.2
V; 1987-08-01~1989-04-01 |
51420-85000-000 |
— | ||
|
3
|
3
51430-85000-000
パイプ,ブレーキ,NO.3
V; 1987-08-01~1989-04-01 |
51430-85000-000 |
— | ||
|
4
|
4
51440-85001-000
パイプ,ブレーキ,NO.4
V; 1987-08-01~1989-04-01 |
51440-85001-000 |
— | ||
|
5
|
5
51450-85001-000
パイプ,ブレーキ,NO.5
V; 1987-08-01~1989-04-01 |
51450-85001-000 |
— | ||
|
6
|
6
51460-85111-000
パイプ,ブレーキ,NO.6
V:2V:TURBO; 1987-08-01~1989-04-01 |
51460-85111-000 |
— | ||
|
7
|
7
51470-85000-000 PIPE,RR BK HOSE TO R BK ASSYV; 1987-08-01~1989-04-01 |
51470-85000-000 |
US $13.28 |
||
|
8
|
8
51480-85000-000
PIPE,R BK ASSY TO L BK ASSY
V; 1987-08-01~1989-04-01 |
51480-85000-000 |
— | ||
|
9
|
9
51510-85410-000
パイプ,ブレーキ,NO.12
V; 1987-08-01~1989-04-01 |
51510-85410-000 |
— | ||
|
10
|
10
51350-85511-000
パイプ,ブレーキ,NO.15
V:(GB,GL,PA,SB,PL,PG,SA,EX,RX,PS); 1987-08-01~1989-04-01 |
51350-85511-000 |
— | ||
|
11
|
11
51940-85102-000
バルブアッシ,G.P
V; 1987-08-01~1989-04-01 |
51940-85102-000 |
— | ||
|
12
|
12
01107-06123-000
Bolt 6x1x16
V; 1987-08-01~1989-04-01 |
01107-06123-000 |
— | ||
| replacements | |||||
|
12
|
12
01500-0612A-000 BOLTV; 1987-08-01~1989-04-01 |
01500-0612A-000 |
from US $0.76 |
||
|
12
|
12
01500-06123-000
Bolt, front
V; 1987-08-01~1989-04-01 |
01500-06123-000 |
— | ||
|
13
|
13
08321-21063-000 Lock washerV; 1987-08-01~1989-04-01 |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
13
|
13
08321-0106A-000 WASHER,LOCKV; 1987-08-01~1989-04-01 |
08321-0106A-000 |
from US $0.76 |
||
|
14
|
14
08322-21063-000
Washer
V; 1987-08-01~1989-04-01 |
08322-21063-000 |
— | ||
| replacement | |||||
|
14
|
14
08322-0106B-000 WASHERV; 1987-08-01~1989-04-01 |
08322-0106B-000 |
from US $0.76 |
||
|
15
|
15
51751-85000-000 GROMMET,BRAKE PIPEV; 1987-08-01~1989-04-01 |
51751-85000-000 |
US $2.24 |
||
|
16
|
16
51540-85050-000
ホース,リヤブレーキフレキシブル
V; 1987-08-01~1989-04-01 |
51540-85050-000 |
— | ||
| replacement | |||||
|
16
|
16
51560-70F00-000 HOSE,RR BRAKE FLEXIBLEV; 1987-08-01~1989-04-01 |
51560-70F00-000 |
US $29.99 |
||
|
17
|
17
51540-85752-000 HOSE,FR BRAKE FLEXIBLEV:(SA,EX,PS,RX); 1987-08-01~1989-04-01 |
51540-85752-000 |
US $54.10 |
||
|
18
|
18
51540-85050-000
ホース,リヤブレーキフレキシブル
V; 1987-08-01~1989-04-01 |
51540-85050-000 |
— | ||
| replacement | |||||
|
18
|
18
51560-70F00-000 HOSE,RR BRAKE FLEXIBLEV; 1987-08-01~1989-04-01 |
51560-70F00-000 |
US $29.99 |
||
|
19
|
19
09161-10009-000 WASHER(10X15X1.5)Lock washer V:(SA,EX,PS,RX); 1987-08-01~1989-04-01 |
09161-10009-000 |
from US $1.06 |
||
|
20
|
20
09360-10026-000 Union boltV:(SA,EX,PS,RX); 1987-08-01~1989-04-01 |
09360-10026-000 |
US $2.08 |
||
|
21
|
21
09383-13001-000 E RINGV; 1987-08-01~1989-04-01 |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
21
|
21
09383-13003-000 E-RINGV; 1987-08-01~1989-04-01 |
09383-13003-000 |
from US $1.60 |
||
|
22
|
22
51640-85030-000 JOINT,5WAY BRAKEV; 1987-08-01~1989-04-01 |
51640-85030-000 |
US $45.60 |
||
|
23
|
23
01517-06203-000
Bolt
V; 1987-08-01~1989-04-01 |
01517-06203-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0620B-000 BOLTBolt, inspection cap V; 1987-08-01~1989-04-01 |
01550-0620B-000 |
from US $0.76 |
||
|
23
|
23
01550-0620A-000 BOLTV; 1987-08-01~1989-04-01 |
01550-0620A-000 |
from US $0.76 |
||
|
24
|
24
09403-06401-000 CLAMPV; 1987-08-01~1989-04-01 |
09403-06401-000 |
from US $2.08 |
||
|
25
|
25
09403-06407-000 CLAMPV; 1987-08-01~1989-04-01 |
09403-06407-000 |
US $16.20 |
||
|
26
|
26
09403-07312-000 CLAMPV; 1987-08-01~1989-04-01 |
09403-07312-000 |
US $1.82 |
||
|
27
|
27
09132-06006-000 SCREW(6X12)V; 1987-08-01~1989-04-01 |
09132-06006-000 |
US $1.60 |
||
|
28
|
28
09403-06404-000 CLAMPV; 1987-08-01~1989-04-01 |
09403-06404-000 |
US $2.72 |
||
|
29
|
29
01107-06123-000
Bolt 6x1x16
V; 1987-08-01~1989-04-01 |
01107-06123-000 |
— | ||
| replacements | |||||
|
29
|
29
01500-0612A-000 BOLTV; 1987-08-01~1989-04-01 |
01500-0612A-000 |
from US $0.76 |
||
|
29
|
29
01500-06123-000
Bolt, front
V; 1987-08-01~1989-04-01 |
01500-06123-000 |
— | ||
|
30
|
30
08321-21063-000 Lock washerV; 1987-08-01~1989-04-01 |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
30
|
30
08321-0106A-000 WASHER,LOCKV; 1987-08-01~1989-04-01 |
08321-0106A-000 |
from US $0.76 |
||
