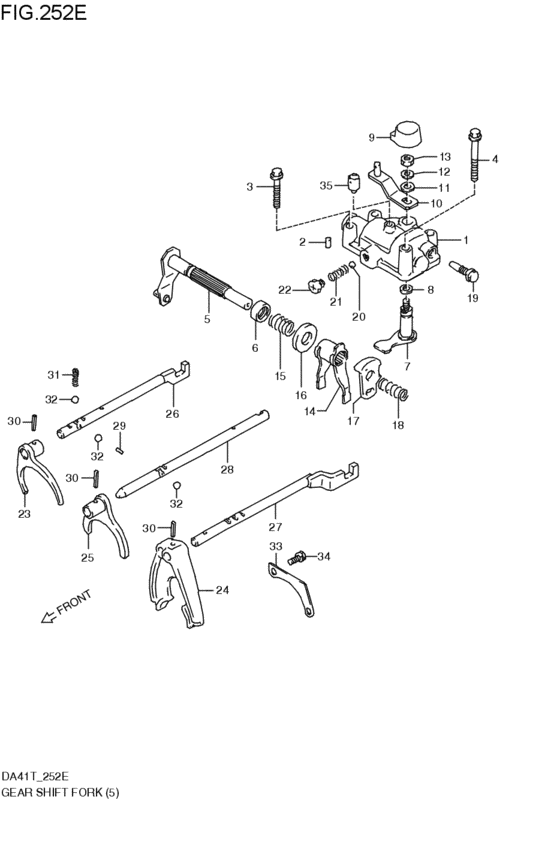

mt - gearlever fork (F4WD:5MT:V; 1989-05-01~1990-01-01) Diagram Suzuki CARRY/EVERY
- Year
- 1989 - 1990
- Sales region
- Japan
- supercharge
- CARB
- drive
- F4WD
- transmission
- MT
- grade
- PY
- number of the gears
- 5MT
- body
- P
- valve
- 4V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25121-64C00-000
ケース,ギヤシフトレバー
F4WD:5MT:V; 1989-05-01~1990-01-01 |
25121-64C00-000 |
— | ||
|
2
|
2
04221-06129-000 PINF4WD:5MT:V; 1989-05-01~1990-01-01 |
04221-06129-000 |
from US $0.96 |
||
|
3
|
3
09103-08194-000
ボルト,8X40
F4WD:5MT:V; 1989-05-01~1990-01-01 |
09103-08194-000 |
— | ||
| replacement | |||||
|
3
|
3
09103-08366-000 BOLT(8X45)F4WD:5MT:V; 1989-05-01~1990-01-01 |
09103-08366-000 |
US $1.68 |
||
|
4
|
4
09103-08195-000
ボルト,8X55
F4WD:5MT:V; 1989-05-01~1990-01-01 |
09103-08195-000 |
— | ||
|
5
|
5
25520-85414-000
シャフト,ギヤシフトレバー
F4WD:5MT:V; 1989-05-01~1990-01-01 |
25520-85414-000 |
— | ||
|
6
|
6
09284-17004-000 SEAL,OIL(17X25X12)F4WD:5MT:V; 1989-05-01~1990-01-01 |
09284-17004-000 |
US $5.12 |
||
|
7
|
7
25530-79501-000 SHAFT,GEAR SELECTF4WD:5MT:V; 1989-05-01~1990-01-01 |
25530-79501-000 |
US $18.40 |
||
|
8
|
8
09286-09001-000 SEAL,OIL(9.2X14X2.8)F4WD:5MT:V; 1989-05-01~1990-01-01 |
09286-09001-000 |
from US $1.04 |
||
|
9
|
9
25536-84200-000 BOOT,LEVERF4WD:5MT:V; 1989-05-01~1990-01-01 |
25536-84200-000 |
US $2.08 |
||
|
10
|
10
25535-85412-000 ARM,GEAR SELECTF4WD:5MT:V; 1989-05-01~1990-01-01 |
25535-85412-000 |
US $13.12 |
||
|
11
|
11
08322-11083-000 WasherWasher F4WD:5MT:V; 1989-05-01~1990-01-01 |
08322-11083-000 |
US $1.07 |
||
| replacements | |||||
|
11
|
11
08322-0108B-000 WASHERF4WD:5MT:V; 1989-05-01~1990-01-01 |
08322-0108B-000 |
from US $0.80 |
||
|
11
|
11
08322-0108A-000 WASHERF4WD:5MT:V; 1989-05-01~1990-01-01 |
08322-0108A-000 |
from US $0.80 |
||
|
12
|
12
08321-21083-000
Washr,lk8.2x15.
F4WD:5MT:V; 1989-05-01~1990-01-01 |
08321-21083-000 |
— | ||
| replacements | |||||
|
12
|
12
08321-0108B-000 WASHER,LOCKF4WD:5MT:V; 1989-05-01~1990-01-01 |
08321-0108B-000 |
from US $0.76 |
||
|
12
|
12
08321-0108A-000 WASHER,LOCKF4WD:5MT:V; 1989-05-01~1990-01-01 |
08321-0108A-000 |
from US $0.80 |
||
|
13
|
13
08310-12083-000
ナット
F4WD:5MT:V; 1989-05-01~1990-01-01 |
08310-12083-000 |
— | ||
| replacements | |||||
|
13
|
13
08310-0008A-000 NUTNut, bead stopper F4WD:5MT:V; 1989-05-01~1990-01-01 |
08310-0008A-000 |
from US $0.76 |
||
|
13
|
13
08310-0008B-000 NUTF4WD:5MT:V; 1989-05-01~1990-01-01 |
08310-0008B-000 |
from US $0.80 |
||
|
14
|
14
25541-85463-000
レバー,ギヤシフト
F4WD:5MT:V; 1989-05-01~1990-01-01 |
25541-85463-000 |
— | ||
| replacement | |||||
|
14
|
14
25541-85413-000
レバー,ギヤシフト
F4WD:5MT:V; 1989-05-01~1990-01-01 |
25541-85413-000 |
— | ||
|
15
|
15
09440-20012-000
スプリング
F4WD:5MT:V; 1989-05-01~1990-01-01 |
09440-20012-000 |
— | ||
| replacement | |||||
|
15
|
15
25576-70D00-000 SPRING,LOW SPEED SELECTF4WD:5MT:V; 1989-05-01~1990-01-01 |
25576-70D00-000 |
US $2.24 |
||
|
16
|
16
25545-85411-000
スペーサ,ギヤシフト,ロー
F4WD:5MT:V; 1989-05-01~1990-01-01 |
25545-85411-000 |
— | ||
|
17
|
17
25545-85054-000
ドッグ,リバースシフトリミット
F4WD:5MT:V; 1989-05-01~1990-01-01 |
25545-85054-000 |
— | ||
| replacement | |||||
|
17
|
17
25545-85055-000 DOG,REV SHIFT LIMITF4WD:5MT:V; 1989-05-01~1990-01-01 |
25545-85055-000 |
US $10.56 |
||
|
18
|
18
25546-60C00-000
スプリング,シフトレバーホールド,NO.2
F4WD:5MT:V; 1989-05-01~1990-01-01 |
25546-60C00-000 |
— | ||
| replacement | |||||
|
18
|
18
25546-60C01-000 SPRING,SHIFT LEVER HOLD NO.2F4WD:5MT:V; 1989-05-01~1990-01-01 |
25546-60C01-000 |
US $2.40 |
||
|
19
|
19
09135-08005-000 BOLT(8X33.5)F4WD:5MT:V; 1989-05-01~1990-01-01 |
09135-08005-000 |
US $2.24 |
||
|
20
|
20
06111-10003-000 BALLF4WD:5MT:V; 1989-05-01~1990-01-01 |
06111-10003-000 |
from US $0.80 |
||
|
21
|
21
09440-07054-000
スプリング
F4WD:5MT:V; 1989-05-01~1990-01-01 |
09440-07054-000 |
— | ||
| replacement | |||||
|
21
|
21
25547-70D00-000 SPRING,GEAR SHIFT REV CHECKF4WD:5MT:V; 1989-05-01~1990-01-01 |
25547-70D00-000 |
US $1.92 |
||
|
22
|
22
09128-10003-000
スクリュ,10X9
F4WD:5MT:V; 1989-05-01~1990-01-01 |
09128-10003-000 |
— | ||
| replacement | |||||
|
22
|
22
09128-10002-000 BOLT(10X9)F4WD:5MT:V; 1989-05-01~1990-01-01 |
09128-10002-000 |
from US $1.28 |
||
|
23
|
23
25210-63203-000
FORK,LOW SPEED GEAR SHF
F4WD:5MT:V; 1989-05-01~1990-01-01 |
25210-63203-000 |
— | ||
|
24
|
24
25221-85601-000
フォーク,ハイスピードギヤシフト
F4WD:5MT:V; 1989-05-01~1990-01-01 |
25221-85601-000 |
— | ||
|
25
|
25
25250-63C00-000
フォーク,フィフス/リバースギヤシフト
F4WD:5MT:V; 1989-05-01~1990-01-01 |
25250-63C00-000 |
— | ||
|
26
|
26
25410-63C00-000
シャフト,ロースピード
F4WD:5MT:V; 1989-05-01~1990-01-01 |
25410-63C00-000 |
— | ||
|
27
|
27
25420-63C00-000
シャフト,ハイスピード
F4WD:5MT:V; 1989-05-01~1990-01-01 |
25420-63C00-000 |
— | ||
|
28
|
28
25451-63C00-000
シャフト,フィフス/リバースギヤシフト
F4WD:5MT:V; 1989-05-01~1990-01-01 |
25451-63C00-000 |
— | ||
|
29
|
29
09261-03002-000 PIN(3X9.8)F4WD:5MT:V; 1989-05-01~1990-01-01 |
09261-03002-000 |
US $0.96 |
||
|
30
|
30
09205-04003-000 PIN,SPRING(4.5X18)F4WD:5MT:V; 1989-05-01~1990-01-01 |
09205-04003-000 |
US $1.60 |
||
|
31
|
31
09440-07005-000 SPRINGF4WD:5MT:V; 1989-05-01~1990-01-01 |
09440-07005-000 |
US $10.30 |
||
|
32
|
32
06111-10003-000 BALLF4WD:5MT:V; 1989-05-01~1990-01-01 |
06111-10003-000 |
from US $0.80 |
||
|
33
|
33
25481-63C00-000
プレート,ギヤシフトフォークシャフト
F4WD:5MT:V; 1989-05-01~1990-01-01 |
25481-63C00-000 |
— | ||
|
34
|
34
09117-08007-000 BOLT(8X18)F4WD:5MT:V; 1989-05-01~1990-01-01 |
09117-08007-000 |
US $11.80 |
||
|
35
|
35
24821-09001-000 PLUG,T/M BREATHERPlug, breather F4WD:5MT:V; 1989-05-01~1990-01-01 |
24821-09001-000 |
from US $3.04 |
||
