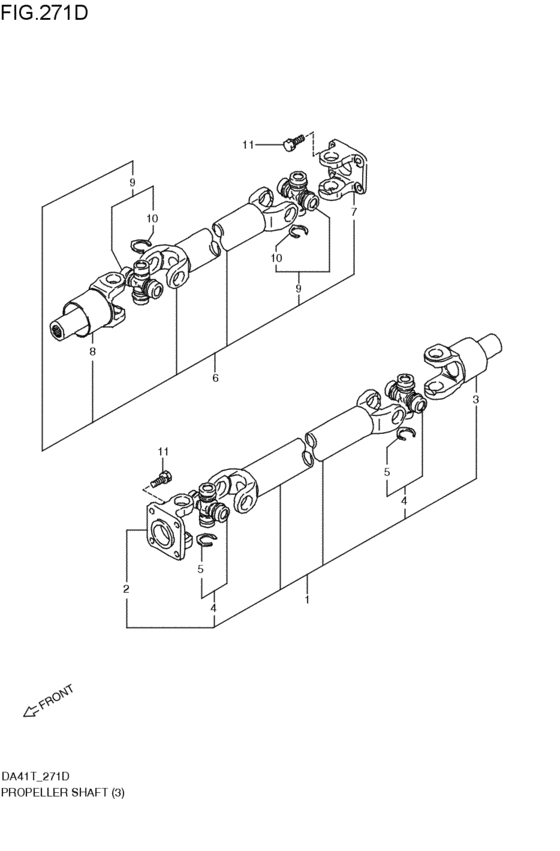

propeller shaft (F4WD; 1989-05-01~1990-01-01) Diagram Suzuki CARRY/EVERY
- Year
- 1989 - 1990
- Sales region
- Japan
- supercharge
- CARB
- drive
- F4WD
- transmission
- MT
- grade
- PY
- number of the gears
- 5MT
- body
- P
- valve
- 4V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27101-63C10-000
シャフトアッシ,フロントプロップ
F4WD; 1989-05-01~1990-01-01 |
27101-63C10-000 |
— | ||
| replacement | |||||
|
1
|
1
27101-63C12-000
シャフトアッシ,フロントプロップ
F4WD; 1989-05-01~1990-01-01 |
27101-63C12-000 |
— | ||
|
2
|
2
27131-63C00-000
YOKE,JOINT FLANGE
F4WD; 1989-05-01~1990-01-01 |
27131-63C00-000 |
— | ||
|
3
|
3
27140-63C11-000
ヨーク,スライディング
F4WD; 1989-05-01~1990-01-01 |
27140-63C11-000 |
— | ||
|
4
|
4
27200-73811-000 Joint, universalF4WD; 1989-05-01~1990-01-01 |
27200-73811-000 |
from US $36.40 |
||
| replacements | |||||
|
4
|
4
27200-73813-000
JOINT SET,UNIVERSAL
F4WD; 1989-05-01~1990-01-01 |
27200-73813-000 |
— | ||
|
4
|
4
27200-73814-000 Joint Set, Universal RrF4WD; 1989-05-01~1990-01-01 |
27200-73814-000 |
from US $52 |
||
|
5
|
5
09380-25005-000 RING,SNAPCirclip F4WD; 1989-05-01~1990-01-01 |
09380-25005-000 |
from US $1.52 |
||
|
6
|
6
27102-63C00-000
シャフトアッシ,リヤプロップ
F4WD; 1989-05-01~1990-01-01 |
27102-63C00-000 |
— | ||
| replacement | |||||
|
6
|
6
27102-63C03-000
New Genuine Part
F4WD; 1989-05-01~1990-01-01 |
27102-63C03-000 |
— | ||
|
7
|
7
27131-63C00-000
YOKE,JOINT FLANGE
F4WD; 1989-05-01~1990-01-01 |
27131-63C00-000 |
— | ||
|
8
|
8
27140-73003-000
Yoke,sliding
F4WD; 1989-05-01~1990-01-01 |
27140-73003-000 |
— | ||
|
9
|
9
27200-73811-000 Joint, universalF4WD; 1989-05-01~1990-01-01 |
27200-73811-000 |
from US $36.40 |
||
| replacements | |||||
|
9
|
9
27200-73813-000
JOINT SET,UNIVERSAL
F4WD; 1989-05-01~1990-01-01 |
27200-73813-000 |
— | ||
|
9
|
9
27200-73814-000 Joint Set, Universal RrF4WD; 1989-05-01~1990-01-01 |
27200-73814-000 |
from US $52 |
||
|
10
|
10
09380-25005-000 RING,SNAPCirclip F4WD; 1989-05-01~1990-01-01 |
09380-25005-000 |
from US $1.52 |
||
|
11
|
11
09117-08021-000
ボルト,8X21.5
F4WD; 1989-05-01~1990-01-01 |
09117-08021-000 |
— | ||
| replacement | |||||
|
11
|
11
09117-08103-000 BOLT(8X18)F4WD; 1989-05-01~1990-01-01 |
09117-08103-000 |
from US $1.69 |
||
