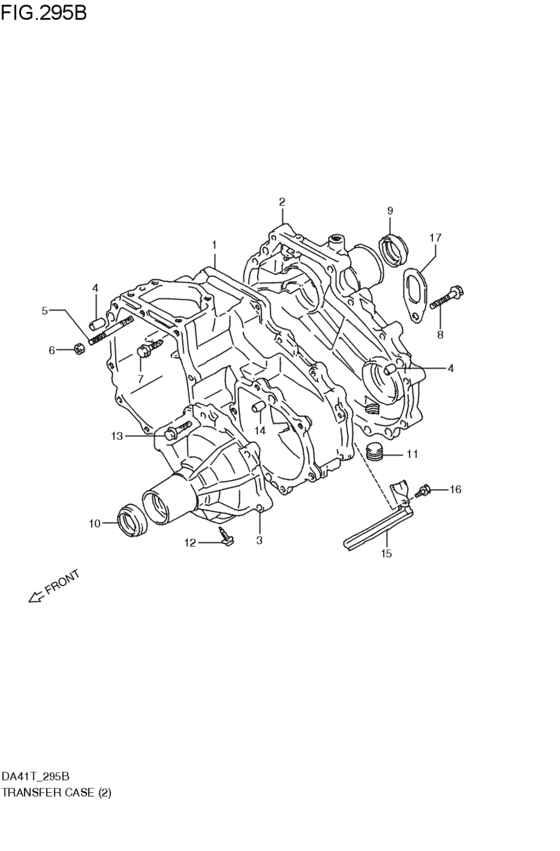

transfer case (F4WD; 1989-05-01~1990-01-01) Diagram Suzuki CARRY/EVERY
- Year
- 1989 - 1990
- Sales region
- Japan
- supercharge
- CARB
- drive
- F4WD
- transmission
- MT
- grade
- PY
- number of the gears
- 5MT
- body
- P
- valve
- 4V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29511-64C00-000
ケース,トランスファ,フロント
F4WD; 1989-05-01~1990-01-01 |
29511-64C00-000 |
— | ||
|
2
|
2
29520-64C01-000
ケース,トランスファ,リヤ
F4WD; 1989-05-01~1990-01-01 |
29520-64C01-000 |
— | ||
|
3
|
3
29530-64C00-000
ケース,ビスカス
F4WD; 1989-05-01~1989-09-01 |
29530-64C00-000 |
— | ||
|
3
|
3
29530-64C01-000
ケース,ビスカス
F4WD; 1989-09-01~1990-01-01 |
29530-64C01-000 |
— | ||
|
4
|
4
04211-11169-000 PINPin, dowel F4WD; 1989-05-01~1990-01-01 |
04211-11169-000 |
from US $1.06 |
||
|
5
|
5
09108-08196-000 BOLT,STUDF4WD; 1989-05-01~1990-01-01 |
09108-08196-000 |
US $34.20 |
||
|
6
|
6
08316-16083-000 NutNut F4WD; 1989-05-01~1990-01-01 |
08316-16083-000 |
US $3.06 |
||
| replacement | |||||
|
6
|
6
08316-1008B-000 NUTF4WD; 1989-05-01~1990-01-01 |
08316-1008B-000 |
from US $0.76 |
||
|
7
|
7
01517-08303-000
ボルト
F4WD; 1989-05-01~1990-01-01 |
01517-08303-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0830A-000 BOLTBolt, mount oil seal cover F4WD; 1989-05-01~1990-01-01 |
01550-0830A-000 |
from US $1.12 |
||
|
7
|
7
01550-0830B-000 BoltF4WD; 1989-05-01~1990-01-01 |
01550-0830B-000 |
from US $1.06 |
||
|
8
|
8
01537-08453-000
ボルト
F4WD; 1989-05-01~1990-01-01 |
01537-08453-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0845A-000 BOLTBolt, oil pump (s) F4WD; 1989-05-01~1990-01-01 |
01550-0845A-000 |
US $5.03 |
||
|
8
|
8
01550-0845B-000 BOLTF4WD; 1989-05-01~1990-01-01 |
01550-0845B-000 |
from US $1.06 |
||
|
9
|
9
24780-79001-000 OIL SEALF4WD; 1989-05-01~1990-01-01 |
24780-79001-000 |
US $8.51 |
||
|
10
|
10
29515-85400-000 SEAL,T/F CASE OIL FRF4WD; 1989-05-01~1990-01-01 |
29515-85400-000 |
US $19.20 |
||
|
11
|
11
09246-16004-000
プラグ(マグネットナシ)
F4WD; 1989-05-01~1990-01-01 |
09246-16004-000 |
— | ||
| replacements | |||||
|
11
|
11
09246-16010-000 PLUGF4WD; 1989-05-01~1990-01-01 |
09246-16010-000 |
US $4.46 |
||
|
11
|
11
09246-16021-000 Plug,t/m Oil DrainF4WD; 1989-05-01~1990-01-01 |
09246-16021-000 |
from US $4.01 |
||
|
12
|
12
27481-75B01-000
ボルト,ベアリングアウタ
F4WD; 1989-05-01~1990-01-01 |
27481-75B01-000 |
— | ||
|
13
|
13
01517-08303-000
ボルト
F4WD; 1989-05-01~1990-01-01 |
01517-08303-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0830A-000 BOLTBolt, mount oil seal cover F4WD; 1989-05-01~1990-01-01 |
01550-0830A-000 |
from US $1.12 |
||
|
13
|
13
01550-0830B-000 BoltF4WD; 1989-05-01~1990-01-01 |
01550-0830B-000 |
from US $1.06 |
||
|
14
|
14
04211-09169-000 PINF4WD; 1989-05-01~1990-01-01 |
04211-09169-000 |
from US $0.91 |
||
|
15
|
15
29580-64C00-000
ガッタ,ビスカスケースオイル
F4WD; 1989-05-01~1990-01-01 |
29580-64C00-000 |
— | ||
|
16
|
16
24828-70B00-000
ボルト,カウンタシャフトライトベアリングプレート
F4WD; 1989-05-01~1990-01-01 |
24828-70B00-000 |
— | ||
| replacements | |||||
|
16
|
16
01570-0612B-000 BOLTBolt, upper F4WD; 1989-05-01~1990-01-01 |
01570-0612B-000 |
US $0.80 |
||
|
16
|
16
01570-0612A-000 BOLTBolt F4WD; 1989-05-01~1990-01-01 |
01570-0612A-000 |
from US $0.80 |
||
|
16
|
16
01570-06123-000
Bolt
F4WD; 1989-05-01~1990-01-01 |
01570-06123-000 |
— | ||
|
17
|
17
11851-85000-000
フック,エンジン
F4WD; 1989-05-01~1990-01-01 |
11851-85000-000 |
— | ||
| replacement | |||||
|
17
|
17
11851-62B00-000 HOOKF4WD; 1989-05-01~1990-01-01 |
11851-62B00-000 |
US $5.02 |
||
