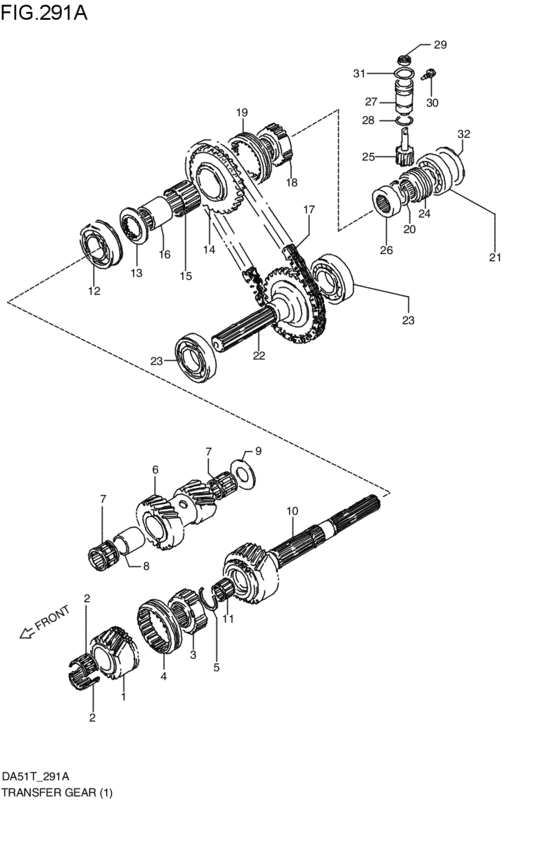

transfer gear (4WD:2X4MT; 1990-01-01~1991-08-01) Diagram Suzuki CARRY/EVERY
- Year
- 1990 - 1991
- Sales region
- Japan
- supercharge
- CARB
- drive
- 4WD
- transmission
- 2X4MT
- grade
- KA
- body
- K
- valve
- 4V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29211-85411-000
ギヤ,トランスファインプット,ロー
NT:19; 4WD:2X4MT; 1990-01-01~1991-08-01 |
29211-85411-000 |
— | ||
|
2
|
2
09263-22044-000
ベアリング,22X28X22.8
4WD:2X4MT; 1990-01-01~1991-08-01 |
09263-22044-000 |
— | ||
|
3
|
3
29231-85411-000
ハブ,リダクションクラッチ
4WD:2X4MT; 1990-01-01~1991-08-01 |
29231-85411-000 |
— | ||
|
4
|
4
29241-85400-000
スリーブ
4WD:2X4MT; 1990-01-01~1991-08-01 |
29241-85400-000 |
— | ||
|
5
|
5
09380-25011-000 RING,SNAPCHKK; 4WD:2X4MT; 1990-01-01~1991-08-01 |
09380-25011-000 |
from US $1.04 |
||
|
6
|
6
29121-63C00-000
ギヤトランスファカウンタ
NT:18,25; 4WD:2X4MT; 1990-01-01~1991-08-01 |
29121-63C00-000 |
— | ||
|
7
|
7
09263-20077-000 BEARING(20X25X25)4WD:2X4MT; 1990-01-01~1991-08-01 |
09263-20077-000 |
US $20.98 |
||
|
8
|
8
09180-20110-000
スペーサ,20X24X30
4WD:2X4MT; 1990-01-01~1991-08-01 |
09180-20110-000 |
— | ||
|
9
|
9
09160-17037-000
ワッシャ,17X38X4
4WD:2X4MT; 1990-01-01~1991-08-01 |
09160-17037-000 |
— | ||
|
10
|
10
29141-73D10-000
シャフト,トランスファアウトプツト,リヤ
NT:26; 4WD:2X4MT; 1990-01-01~1991-08-01 |
29141-73D10-000 |
— | ||
|
11
|
11
09263-17043-000 BEARING(17.5X22X15.8)4WD:2X4MT; 1990-01-01~1991-08-01 |
09263-17043-000 |
US $5.92 |
||
|
12
|
12
08173-62050-000 BEARING4WD:2X4MT; 1990-01-01~1991-08-01 |
08173-62050-000 |
US $18.58 |
||
|
13
|
13
09167-25018-000
WASHER,LOCK
4WD:2X4MT; 1990-01-01~1991-08-01 |
09167-25018-000 |
— | ||
|
14
|
14
29221-73D00-000
スプロケット,トランスファドライブ
NT:29; 4WD:2X4MT; 1990-01-01~1991-08-01 |
29221-73D00-000 |
— | ||
| replacement | |||||
|
14
|
14
29221-74D00-000
スプロケット,トランスファドライブ
NT:29; 4WD:2X4MT; 1990-01-01~1991-08-01 |
29221-74D00-000 |
— | ||
|
15
|
15
09263-30015-000
BEARING(30X35X29.8)
4WD:2X4MT; 1990-01-01~1991-08-01 |
09263-30015-000 |
— | ||
|
16
|
16
29222-73D00-000
ブッシュ
4WD:2X4MT; 1990-01-01~1991-08-01 |
29222-73D00-000 |
— | ||
|
17
|
17
29225-73D00-000
チェーン,トランスファドライブ
4WD:2X4MT; 1990-01-01~1991-08-01 |
29225-73D00-000 |
— | ||
|
18
|
18
29232-85411-000
ハブ,フロントドライブクラッチ
4WD:2X4MT; 1990-01-01~1991-08-01 |
29232-85411-000 |
— | ||
|
19
|
19
29241-85400-000
スリーブ
4WD:2X4MT; 1990-01-01~1991-08-01 |
29241-85400-000 |
— | ||
|
20
|
20
09380-25011-000 RING,SNAPCHKK; 4WD:2X4MT; 1990-01-01~1991-08-01 |
09380-25011-000 |
from US $1.04 |
||
|
21
|
21
09262-20073-000 BEARING(20X52X15)Bearing (20x52x15) 4WD:2X4MT; 1990-01-01~1991-08-01 |
09262-20073-000 |
from US $12.31 |
||
|
22
|
22
29151-73D00-000
シャフト,トランスファアウトプツト,フロント
NT:29; 4WD:2X4MT; 1990-01-01~1991-08-01 |
29151-73D00-000 |
— | ||
|
23
|
23
09262-25003-000 BEARING(25X52X15)Bearing (25x52x15) 4WD:2X4MT; 1990-01-01~1991-08-01 |
09262-25003-000 |
from US $12.80 |
||
|
24
|
24
26121-73D00-000
ギヤ,スピードメータドライブ
NT:3,ノウハンノゾク; 4WD:2X4MT:KA; 1990-01-01~1991-08-01 |
26121-73D00-000 |
— | ||
| replacement | |||||
|
24
|
24
26121-73D01-000
ギヤ,スピードメータドライブ
NT:3,ノウハンノゾク; 4WD:2X4MT:KA; 1990-01-01~1991-08-01 |
26121-73D01-000 |
— | ||
|
24
|
24
26121-73D20-000
ギヤ,スピードメータドライブ
NT:3,ノウハン; 4WD:2X4MT:KA; 1990-01-01~1991-08-01 |
26121-73D20-000 |
— | ||
| replacement | |||||
|
24
|
24
26121-73D21-000
ギヤ,スピードメータドライブ
NT:3,ノウハン; 4WD:2X4MT:KA; 1990-01-01~1991-08-01 |
26121-73D21-000 |
— | ||
|
25
|
25
26131-73D10-000
ギヤ,スピードメータドリブン
KA:ノウハンノゾク,NT:18; 4WD:2X4MT:KA; 1990-01-01~1991-08-01 |
26131-73D10-000 |
— | ||
|
25
|
25
26131-73D20-000
ギヤ,スピードメータドリブン
NT:19,ノウハン; 4WD:2X4MT:KA; 1990-01-01~1991-08-01 |
26131-73D20-000 |
— | ||
|
26
|
26
26122-73D00-000
スペーサ,スピードメータギヤ
4WD:2X4MT; 1990-01-01~1991-08-01 |
26122-73D00-000 |
— | ||
|
27
|
27
29431-85400-000 CASE,SPEEDOMETER DRIVEN GEAR4WD:2X4MT; 1990-01-01~1991-08-01 |
29431-85400-000 |
US $10.27 |
||
|
28
|
28
09280-19001-000 O RING(D:1.9,ID:18.8)O ring 4WD:2X4MT; 1990-01-01~1991-08-01 |
09280-19001-000 |
from US $1.60 |
||
|
29
|
29
09282-08001-000 SEAL,OIL(8X16X5)4WD:2X4MT; 1990-01-01~1991-08-01 |
09282-08001-000 |
US $2.31 |
||
|
30
|
30
09128-06032-000 SCREW(6X13.5)4WD:2X4MT; 1990-01-01~1991-08-01 |
09128-06032-000 |
US $1.22 |
||
|
31
|
31
09280-21014-000 O RING(D:1.2,ID:20.8)D:1.2,ID:20.8; 4WD:2X4MT; 1990-01-01~1991-08-01 |
09280-21014-000 |
from US $4.49 |
||
|
32
|
32
09181-45010-000
シム,45X52X0.1
4WD:2X4MT; 1990-04-01~1991-08-01 |
09181-45010-000 |
— | ||
|
32
|
32
09181-45011-000
シム,45X52X0.3
4WD:2X4MT; 1990-04-01~1991-08-01 |
09181-45011-000 |
— | ||
