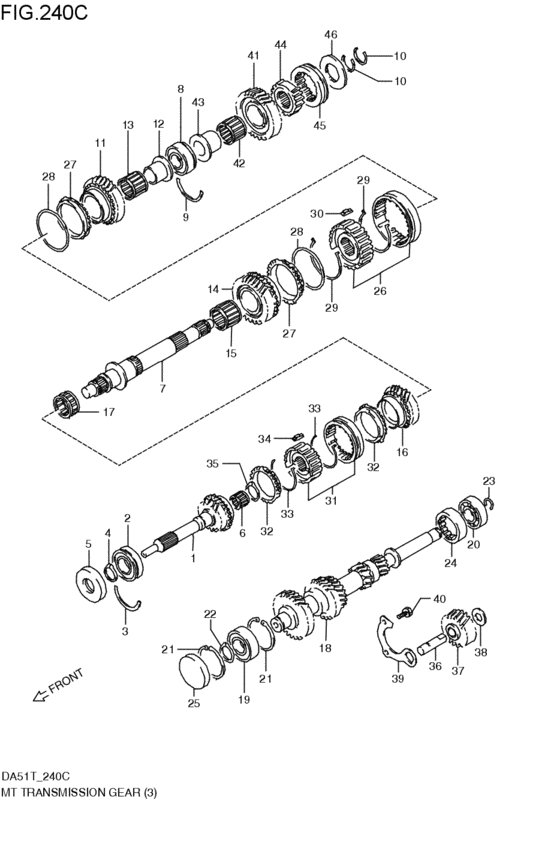

mt - transmission gear (4WD:2X4MT; 1990-01-01~1991-08-01) Diagram Suzuki CARRY/EVERY
- Year
- 1990 - 1991
- Sales region
- Japan
- supercharge
- CARB
- drive
- 4WD
- transmission
- 2X4MT
- grade
- KA
- body
- K
- valve
- 4V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24110-70D01-000
シャフト,トランスミッションインプット
NT:21; 4WD:2X4MT; 1990-01-01~1991-08-01 |
24110-70D01-000 |
— | ||
|
2
|
2
09262-20125-000
ベアリング,20X49X16
4WD:2X4MT; 1990-01-01~1991-08-01 |
09262-20125-000 |
— | ||
| replacement | |||||
|
2
|
2
09262-20126-000 BEARING(20X49X16)4WD:2X4MT; 1990-01-01~1991-08-01 |
09262-20126-000 |
US $96 |
||
|
3
|
3
24152-70D00-000 C-RING,INPUT SHAFT BEARING4WD:2X4MT; 1990-01-01~1991-08-01 |
24152-70D00-000 |
US $2.08 |
||
|
4
|
4
09380-20011-000 RING,SNAP4WD:2X4MT; 1990-01-01~1991-08-01 |
09380-20011-000 |
US $1.52 |
||
|
5
|
5
24151-70D00-000 SEAL,INPUT SHAFT OIL4WD:2X4MT; 1990-01-01~1991-08-01 |
24151-70D00-000 |
US $18.24 |
||
|
6
|
6
09263-17043-000 BEARING(17.5X22X15.8)4WD:2X4MT; 1990-01-01~1991-08-01 |
09263-17043-000 |
US $5.92 |
||
|
7
|
7
24121-73D11-000
シャフト,トランスミッションメイン
4WD:2X4MT; 1990-01-01~1991-08-01 |
24121-73D11-000 |
— | ||
| replacement | |||||
|
7
|
7
24239-80F00-000 BEARING,MAIN SHAFT 3RD GEAR4WD:2X4MT; 1990-01-01~1991-08-01 |
24239-80F00-000 |
US $48 |
||
|
8
|
8
08163-62050-000 BEARING4WD:2X4MT; 1990-01-01~1991-08-01 |
08163-62050-000 |
from US $12.32 |
||
|
9
|
9
09390-52003-000 C RING4WD:2X4MT; 1990-01-01~1991-08-01 |
09390-52003-000 |
from US $3.47 |
||
|
10
|
10
09380-22010-000 CIRCLIPCHKK; 4WD:2X4MT; 1990-01-01~1991-08-01 |
09380-22010-000 |
US $1.92 |
||
|
11
|
11
24211-70D01-000
GEAR,MAIN SFT LOW
NT:32; 4WD:2X4MT; 1990-01-01~1991-08-01 |
24211-70D01-000 |
— | ||
|
12
|
12
24214-70D00-000 BUSH,MAIN SHAFT LOW GEAR4WD:2X4MT; 1990-01-01~1991-08-01 |
24214-70D00-000 |
US $21.34 |
||
|
13
|
13
09263-30031-000 BEARING(30X35X26.8)4WD:2X4MT; 1990-01-01~1991-08-01 |
09263-30031-000 |
from US $8.16 |
||
|
14
|
14
24220-70D83-000
ギヤ,メインシャフト,セカンド
NT:31; 4WD:2X4MT; 1990-01-01~1991-08-01 |
24220-70D83-000 |
— | ||
| replacement | |||||
|
14
|
14
24221-70D03-000
GEAR,MAIN SFT 2ND
NT:31; 4WD:2X4MT; 1990-01-01~1991-08-01 |
24221-70D03-000 |
— | ||
|
15
|
15
09263-30030-000 BEARING(30X35X24.8)4WD:2X4MT; 1990-01-01~1991-08-01 |
09263-30030-000 |
from US $10.18 |
||
|
16
|
16
24230-73D00-000
ギヤ,メインシャフト,サード
NT:28; 4WD:2X4MT; 1990-01-01~1991-08-01 |
24230-73D00-000 |
— | ||
| replacement | |||||
|
16
|
16
24231-79D00-000
Gear,main shaft 3rd
NT:28; 4WD:2X4MT; 1990-01-01~1991-08-01 |
24231-79D00-000 |
— | ||
|
17
|
17
09263-25057-000
ベアリング,25X30X19.7
4WD:2X4MT; 1990-01-01~1991-08-01 |
09263-25057-000 |
— | ||
|
18
|
18
24130-73D13-000
SHAFT,T/M COUNTER
NT:11,12,20,27,32; 4WD:2X4MT; 1990-01-01~1991-08-01 |
24130-73D13-000 |
— | ||
|
19
|
19
09262-20120-000
ベアリング,20X47X14
4WD:2X4MT; 1990-01-01~1991-08-01 |
09262-20120-000 |
— | ||
| replacement | |||||
|
19
|
19
08133-62047-000 BEARINGBearing, rh 4WD:2X4MT; 1990-01-01~1991-08-01 |
08133-62047-000 |
from US $15.04 |
||
|
20
|
20
08113-63030-000 BEARINGBearing 4WD:2X4MT; 1990-01-01~1991-08-01 |
08113-63030-000 |
from US $10.88 |
||
|
21
|
21
08331-41478-000
Circlip
4WD:2X4MT; 1990-01-01~1991-08-01 |
08331-41478-000 |
— | ||
| replacement | |||||
|
21
|
21
08331-41479-000 CIRCLIP4WD:2X4MT; 1990-01-01~1991-08-01 |
08331-41479-000 |
from US $2.56 |
||
|
22
|
22
09380-19004-000 RING,SNAP4WD:2X4MT; 1990-01-01~1991-08-01 |
09380-19004-000 |
from US $1.64 |
||
|
23
|
23
09380-17008-000 CIRCLIP4WD:2X4MT; 1990-01-01~1991-08-01 |
09380-17008-000 |
US $1.92 |
||
|
24
|
24
09264-32012-000
ベアリング,32.5X49X15
4WD:2X4MT; 1990-01-01~1991-08-01 |
09264-32012-000 |
— | ||
| replacement | |||||
|
24
|
24
09264-32011-000
BEARING(32.5X49X13)
4WD:2X4MT; 1990-01-01~1991-08-01 |
09264-32011-000 |
— | ||
|
25
|
25
09241-47002-000
PLUG
4WD:2X4MT; 1990-01-01~1991-08-01 |
09241-47002-000 |
— | ||
| replacement | |||||
|
25
|
25
09241-47009-000 PLUG4WD:2X4MT; 1990-01-01~1991-08-01 |
09241-47009-000 |
US $4.10 |
||
|
26
|
26
24400-73D00-000
HUB ASSY,LOW SPEED SYNC
4WD:2X4MT; 1990-01-01~1991-08-01 |
24400-73D00-000 |
— | ||
|
27
|
27
24431-70D00-000
リング,ロースピードシンクロナイザ
4WD:2X4MT; 1990-01-01~1991-08-01 |
24431-70D00-000 |
— | ||
| replacement | |||||
|
27
|
27
24431-85020-000 RING,LOW SPEED SYNC4WD:2X4MT; 1990-01-01~1991-08-01 |
24431-85020-000 |
US $72.80 |
||
|
28
|
28
24436-84200-000 SPRING,SYNC RING LOWCHKK; 4WD:2X4MT; 1990-01-01~1991-08-01 |
24436-84200-000 |
US $13.28 |
||
|
29
|
29
09388-00020-000 SPRINGCHKK; 4WD:2X4MT; 1990-01-01~1991-08-01 |
09388-00020-000 |
US $1.82 |
||
|
30
|
30
24472-60B00-000 KEY,SYNCHRONIZERKey, low speed sync 4WD:2X4MT; 1990-01-01~1991-08-01 |
24472-60B00-000 |
from US $1.92 |
||
|
31
|
31
24410-73D00-000
ハブアッシ,ハイスピードシンクロナイザ
4WD:2X4MT; 1990-01-01~1991-03-01 |
24410-73D00-000 |
— | ||
| replacement | |||||
|
31
|
31
24400-73850-000 HUB ASSY,HIGH SPEED SYNC4WD:2X4MT; 1990-01-01~1991-03-01 |
24400-73850-000 |
US $200.56 |
||
|
31
|
31
24410-73D10-000
ハブアッシ,ハイスピードシンクロナイザ
4WD:2X4MT; 1991-03-01~1991-08-01 |
24410-73D10-000 |
— | ||
| replacement | |||||
|
31
|
31
24400-73850-000 HUB ASSY,HIGH SPEED SYNC4WD:2X4MT; 1991-03-01~1991-08-01 |
24400-73850-000 |
US $200.56 |
||
|
32
|
32
24432-70D00-000
リング,ハイスピードシンクロナイザ
4WD:2X4MT; 1990-01-01~1991-03-01 |
24432-70D00-000 |
— | ||
| replacement | |||||
|
32
|
32
24432-73D00-000 RING,HIGH SPEED SYNC4WD:2X4MT; 1990-01-01~1991-03-01 |
24432-73D00-000 |
US $57.60 |
||
|
32
|
32
24432-73D00-000 RING,HIGH SPEED SYNC4WD:2X4MT; 1991-03-01~1991-08-01 |
24432-73D00-000 |
US $57.60 |
||
|
33
|
33
24442-60B00-000 SPRING,HIGH SPEED SYNCCHKK; 4WD:2X4MT; 1990-01-01~1991-02-01 |
24442-60B00-000 |
from US $1.58 |
||
|
33
|
33
24442-60B20-000
Spring,sync high speed
CHKK; 4WD:2X4MT; 1991-02-01~1991-08-01 |
24442-60B20-000 |
— | ||
|
34
|
34
24472-60B00-000 KEY,SYNCHRONIZERKey, low speed sync 4WD:2X4MT; 1990-01-01~1991-08-01 |
24472-60B00-000 |
from US $1.92 |
||
|
35
|
35
09380-22013-000 RING,SNAP4WD:2X4MT; 1990-01-01~1991-08-01 |
09380-22013-000 |
US $23.20 |
||
|
36
|
36
24551-85051-000 SHAFT,REVERSE IDLE GEAR4WD:2X4MT; 1990-01-01~1991-08-01 |
24551-85051-000 |
US $32 |
||
|
37
|
37
24560-85411-000
Gear,reverse idle
NT:22; 4WD:2X4MT; 1990-01-01~1991-08-01 |
24560-85411-000 |
— | ||
|
38
|
38
09166-14012-000 WASHER4WD:2X4MT; 1990-01-01~1991-08-01 |
09166-14012-000 |
US $1.12 |
||
|
39
|
39
25482-85411-000
プレート,リバースギヤシャフトストップ
4WD:2X4MT; 1990-01-01~1991-08-01 |
25482-85411-000 |
— | ||
|
40
|
40
01937-06166-000
ボルト
4WD:2X4MT; 1990-01-01~1991-08-01 |
01937-06166-000 |
— | ||
| replacement | |||||
|
40
|
40
01570-0616B-000 Bolt4WD:2X4MT; 1990-01-01~1991-08-01 |
01570-0616B-000 |
from US $0.80 |
||
|
41
|
41
24681-85611-000
ギヤ,メインシャフトリバース
NT:35; 4WD:2X4MT; 1990-01-01~1991-08-01 |
24681-85611-000 |
— | ||
|
42
|
42
09263-30031-000 BEARING(30X35X26.8)4WD:2X4MT; 1990-01-01~1991-08-01 |
09263-30031-000 |
from US $8.16 |
||
|
43
|
43
24564-63C00-000
BUSH,MAIN SHAFT REV GEAR
4WD:2X4MT; 1990-01-01~1991-08-01 |
24564-63C00-000 |
— | ||
|
44
|
44
24413-85610-000
ハブ,リバースクラッチ
4WD:2X4MT; 1990-01-01~1991-08-01 |
24413-85610-000 |
— | ||
| replacement | |||||
|
44
|
44
24420-85610-000
ハブセット,リバースクラッチ
4WD:2X4MT; 1990-01-01~1991-08-01 |
24420-85610-000 |
— | ||
|
45
|
45
29241-85400-000
スリーブ
4WD:2X4MT; 1990-01-01~1991-08-01 |
29241-85400-000 |
— | ||
|
46
|
46
24415-85610-000
プレート,リバースハブ
4WD:2X4MT; 1990-01-01~1991-08-01 |
24415-85610-000 |
— | ||
