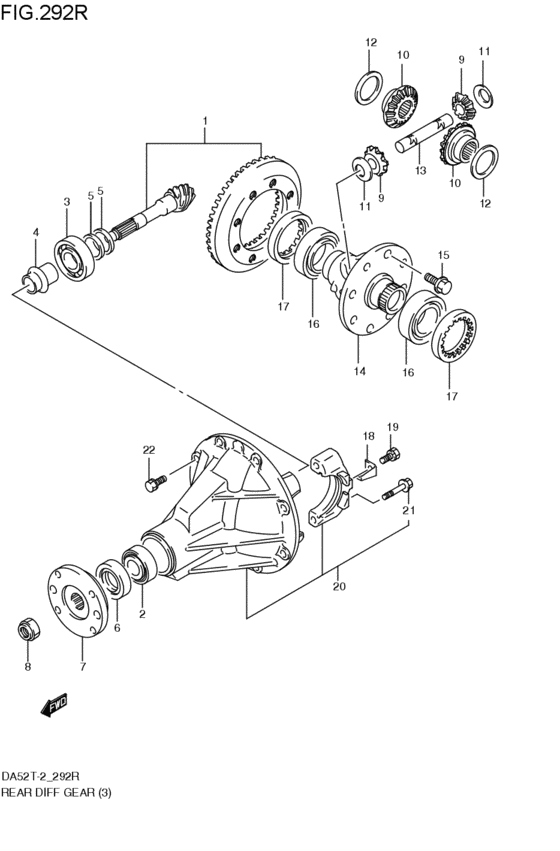

リヤデファレンシャルギヤ (4V:KL; 1999-11-01~2000-06-01) Diagram Suzuki CARRY/EVERY
- Year
- 1999 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 4WD
- transmission
- MT
- grade
- KL
- number of the gears
- 5MT
- body
- T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27300-71830-000
Bevel pinion & gear set
4V:KL; 1999-11-01~2000-06-01 |
27300-71830-000 |
— | ||
| replacements | |||||
|
1
|
1
27300-71832-000 BEVEL PINION & GEAR SET4V:KL; 1999-11-01~2000-06-01 |
27300-71832-000 |
US $1,041.60 |
||
|
1
|
1
09159-16021-000 NUT4V:KL; 1999-11-01~2000-06-01 |
09159-16021-000 |
from US $4.96 |
||
|
2
|
2
09265-20001-000 BEARING(20X47X15.25)4V:KL; 1999-11-01~2000-06-01 |
09265-20001-000 |
US $18.40 |
||
|
3
|
3
09265-25037-000 BEARING(25X62X25.25)4V:KL; 1999-11-01~2000-06-01 |
09265-25037-000 |
US $74.40 |
||
|
4
|
4
27315-60C10-000 SPACER,BEVEL PINION4V:KL; 1999-11-01~2000-06-01 |
27315-60C10-000 |
from US $23.33 |
||
|
5
|
5
09181-25031-000 SHIM(25.5X31.5X0.3)4V:KL; 1999-11-01~2000-06-01 |
09181-25031-000 |
US $16.20 |
||
|
5
|
5
09181-25139-000 SHIM(25X32X1)Washer, shift cam spring 4V:KL; 1999-11-01~2000-06-01 |
09181-25139-000 |
from US $4.19 |
||
|
5
|
5
09181-25140-000 SHIM(25X32X1.03)4V:KL; 1999-11-01~2000-06-01 |
09181-25140-000 |
US $16.20 |
||
|
5
|
5
09181-25142-000 SHIM(25X32X1.06)4V:KL; 1999-11-01~2000-06-01 |
09181-25142-000 |
US $16.20 |
||
|
5
|
5
09181-25143-000 SHIM(25X32X1.09)4V:KL; 1999-11-01~2000-06-01 |
09181-25143-000 |
from US $4.76 |
||
|
5
|
5
09181-25145-000 SHIM(25X32X1.12)4V:KL; 1999-11-01~2000-06-01 |
09181-25145-000 |
US $1.76 |
||
|
5
|
5
09181-25146-000 SHIM(25X32X1.15)4V:KL; 1999-11-01~2000-06-01 |
09181-25146-000 |
US $16.20 |
||
|
5
|
5
09181-25147-000 SHIM(25X32X1.18)4V:KL; 1999-11-01~2000-06-01 |
09181-25147-000 |
from US $1.22 |
||
|
5
|
5
09181-25149-000 SHIM(25X32X1.21)4V:KL; 1999-11-01~2000-06-01 |
09181-25149-000 |
from US $4.76 |
||
|
5
|
5
09181-25150-000 SHIM(25X32X1.24)4V:KL; 1999-11-01~2000-06-01 |
09181-25150-000 |
from US $1.22 |
||
|
5
|
5
09181-25152-000 SHIM(25X32X1.27)4V:KL; 1999-11-01~2000-06-01 |
09181-25152-000 |
US $16.20 |
||
|
5
|
5
09181-25153-000 SHIM(25X32X1.3)4V:KL; 1999-11-01~2000-06-01 |
09181-25153-000 |
US $1.76 |
||
|
6
|
6
09283-28022-000 SEAL,OIL(28X47X7)4V:KL; 1999-11-01~2000-06-01 |
09283-28022-000 |
from US $12.38 |
||
|
7
|
7
27110-70D10-000 FLANGE,UNIVERSAL JOINT4V:KL; 1999-11-01~2000-06-01 |
27110-70D10-000 |
US $46.40 |
||
|
8
|
8
09159-16018-000 NUT4V:KL; 1999-11-01~2000-06-01 |
09159-16018-000 |
from US $2.24 |
||
|
9
|
9
27331-83020-000 PINION,DIFFERENTIAL4V:KL; 1999-11-01~2000-06-01 |
27331-83020-000 |
from US $31.59 |
||
| replacements | |||||
|
9
|
9
27331-76A20-000
PINION,DIFFERENTIAL
4V:KL; 1999-11-01~2000-06-01 |
27331-76A20-000 |
— | ||
|
9
|
9
27331-76A21-000 Pinion,differential4V:KL; 1999-11-01~2000-06-01 |
27331-76A21-000 |
from US $31.91 |
||
|
10
|
10
27341-60C20-000
ギヤ,リヤディファレンシャルサイド
4V:KL; 1999-11-01~2000-06-01 |
27341-60C20-000 |
— | ||
| replacement | |||||
|
10
|
10
27340-60820-000 GEAR SET,DIFF4V:KL; 1999-11-01~2000-06-01 |
27340-60820-000 |
US $128.06 |
||
|
11
|
11
09164-15006-000 WASHER4V:KL; 1999-11-01~2000-06-01 |
09164-15006-000 |
from US $1.67 |
||
|
12
|
12
09160-30008-000 WASHER(30.3X41X1.2)4V:KL; 1999-11-01~2000-06-01 |
09160-30008-000 |
US $21.70 |
||
|
12
|
12
09160-30022-000 WASHER(30X41X1.1)Thrust washer (t:2.5) 4V:KL; 1999-11-01~2000-06-01 |
09160-30022-000 |
US $26.50 |
||
|
12
|
12
09160-30025-000 WASHER(30X42X0.9)4V:KL; 1999-11-01~2000-06-01 |
09160-30025-000 |
US $26.50 |
||
|
13
|
13
27351-78A00-000
シャフト,ディファレンシャルピニオン
4V:KL; 1999-11-01~2000-06-01 |
27351-78A00-000 |
— | ||
| replacement | |||||
|
13
|
13
27351-78A02-000 SHAFT,DIFF PINION4V:KL; 1999-11-01~2000-06-01 |
27351-78A02-000 |
US $26.40 |
||
|
14
|
14
27411-79D30-000
ケース,ディファレンシャル
4V:KL; 1999-11-01~2000-06-01 |
27411-79D30-000 |
— | ||
| replacement | |||||
|
14
|
14
27411-79D32-000 CASE,DIFF4V:KL; 1999-11-01~2000-06-01 |
27411-79D32-000 |
US $180.69 |
||
|
15
|
15
09103-10309-000 BOLT(10X16)4V:KL; 1999-11-01~2000-06-01 |
09103-10309-000 |
from US $1.67 |
||
|
16
|
16
09265-40002-000 BEARING(40X68X19)4V:KL; 1999-11-01~2000-06-01 |
09265-40002-000 |
from US $24.64 |
||
|
17
|
17
27461-85600-000 ADJUSTER,DIFF SIDE BEARING4V:KL; 1999-11-01~2000-06-01 |
27461-85600-000 |
US $14.90 |
||
|
18
|
18
27462-85600-000 PLATE,DIFF SIDE BRG LOCK4V:KL; 1999-11-01~2000-06-01 |
27462-85600-000 |
US $1.62 |
||
|
19
|
19
01550-08123-000
Bolt
4V:KL; 1999-11-01~2000-06-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0812B-000 BoltPlug, drain 4V:KL; 1999-11-01~2000-06-01 |
01550-0812B-000 |
from US $0.96 |
||
|
19
|
19
01550-0812A-000 Bolt4V:KL; 1999-11-01~2000-06-01 |
01550-0812A-000 |
from US $0.91 |
||
|
20
|
20
27450-72D01-000 CARRIER ASSY,DIFF4V:KL; 1999-11-01~2000-06-01 |
27450-72D01-000 |
US $264.96 |
||
|
21
|
21
09111-08082-000 BOLT(8X49.5)4V:KL; 1999-11-01~2000-06-01 |
09111-08082-000 |
US $18.40 |
||
|
22
|
22
27458-76A00-000
ボルト,ディファレンシャルキャリア
4V:KL; 1999-11-01~2000-06-01 |
27458-76A00-000 |
— | ||
| replacement | |||||
|
22
|
22
09112-08011-000 BOLT(8X25)4V:KL; 1999-11-01~2000-06-01 |
09112-08011-000 |
US $19.50 |
||
