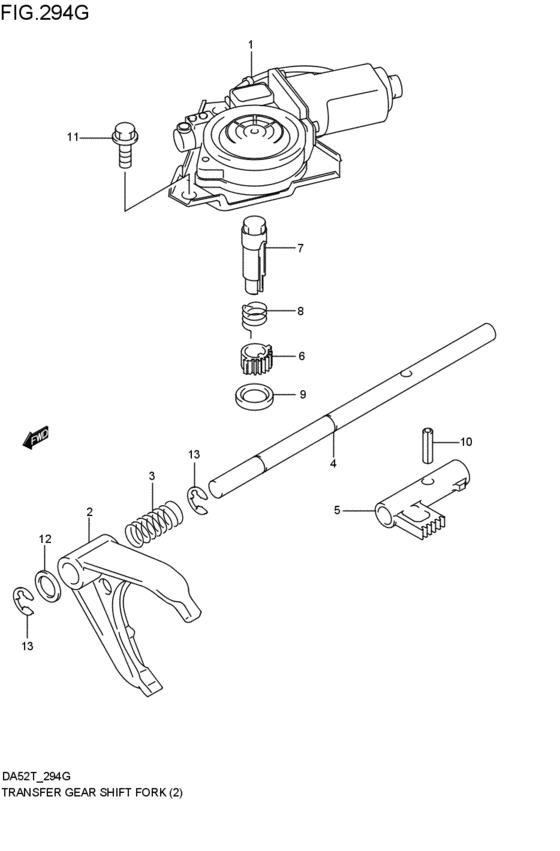

transfer gearlever fork (MT:4WD:VW; 1998-12-01~2000-06-01) Diagram Suzuki CARRY/EVERY
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- 4V
- supercharge
- EPI
- drive
- 4WD
- transmission
- MT
- grade
- PA
- body
- DB52V
- air bag
- NAB
- abs
- NABS
- power steering
- NPWST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29310-79A00-000
MOTOR ASSY,T/F SHIFT
MT:4WD:VW; 1998-12-01~2000-06-01 |
29310-79A00-000 |
— | ||
|
2
|
2
29311-79A40-000 FORK,FRONT DRIVE SHIFTMT:4WD:VW; 1998-12-01~2000-06-01 |
29311-79A40-000 |
US $38.64 |
||
|
3
|
3
29316-79A01-000 SPRING,FRONT DRIVE SHIFT FORKCHKK; MT:4WD:VW; 1998-12-01~2000-06-01 |
29316-79A01-000 |
US $3.02 |
||
|
4
|
4
29331-79A30-000 SHAFT,FRONT DRIVE SHIFTMT:4WD:VW; 1998-12-01~2000-06-01 |
29331-79A30-000 |
US $24.29 |
||
|
5
|
5
29721-79A00-000 YOKE,T/F GEAR SHIFTMT:4WD:VW; 1998-12-01~2000-06-01 |
29721-79A00-000 |
US $42.69 |
||
|
6
|
6
29731-79A00-000 GEAR,T/F GR SHIFT PINIONMT:4WD:VW; 1998-12-01~2000-06-01 |
29731-79A00-000 |
US $3.64 |
||
|
7
|
7
29741-79A00-000
シャフト,トランスファギヤシフトピニオン
MT:4WD:VW; 1998-12-01~1999-07-01 |
29741-79A00-000 |
— | ||
|
7
|
7
29741-79A01-000 SHAFT,T/F GEAR SHF PINIONMT:4WD:VW; 1999-05-01~2000-06-01 |
29741-79A01-000 |
US $14.32 |
||
|
8
|
8
29761-79A00-000 SPRING,T/F GEAR SHIFTMT:4WD:VW; 1998-12-01~2000-06-01 |
29761-79A00-000 |
US $2.83 |
||
|
9
|
9
09181-10158-000 SHIM(10X18X0.5)Washer, pump driven gear MT:4WD:VW; 1998-12-01~2000-06-01 |
09181-10158-000 |
from US $1.76 |
||
|
10
|
10
09205-05012-000 PIN,SPRING(5X25)MT:4WD:VW; 1998-12-01~2000-06-01 |
09205-05012-000 |
US $1.22 |
||
|
11
|
11
01550-08163-000
Bolt, holder
MT:4WD:VW; 1998-12-01~2000-06-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0816B-000 BOLTMT:4WD:VW; 1998-12-01~2000-06-01 |
01550-0816B-000 |
from US $0.91 |
||
|
11
|
11
01550-0816A-000 BOLTBolt, rear MT:4WD:VW; 1998-12-01~2000-06-01 |
01550-0816A-000 |
from US $0.91 |
||
|
12
|
12
08212-12201-000 WASHERWasher MT:4WD:VW; 1998-12-01~2000-06-01 |
08212-12201-000 |
from US $0.91 |
||
|
13
|
13
08332-11106-000
E ring
MT:4WD:VW; 1998-12-01~2000-06-01 |
08332-11106-000 |
— | ||
| replacement | |||||
|
13
|
13
08332-1110A-000 E RINGMT:4WD:VW; 1998-12-01~2000-06-01 |
08332-1110A-000 |
from US $0.96 |
||
