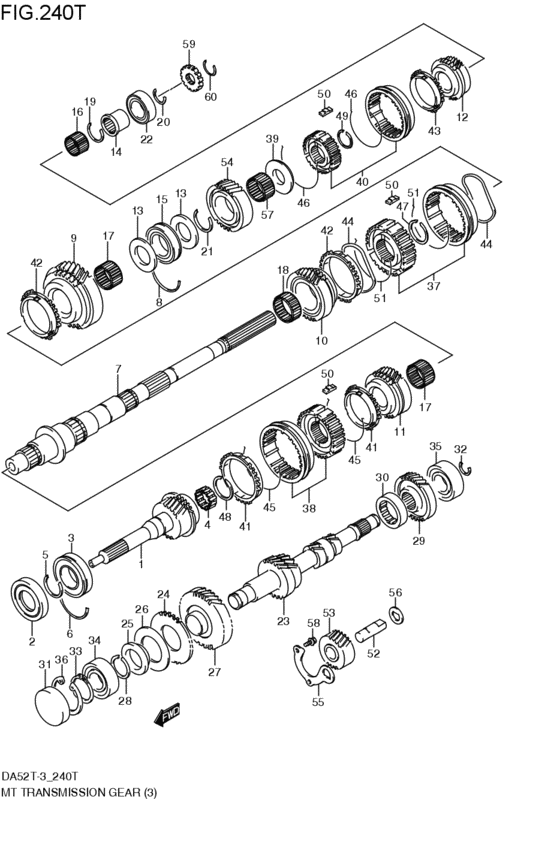

mt - transmission gear (メインシャフト / カウンタシャフト,インプットシャフト; MT:4WD:(V,W); 2000-05-01~2001-10-01) Diagram Suzuki CARRY/EVERY
- Year
- 2000 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 4WD
- transmission
- MT
- grade
- PAS
- number of the gears
- 5MT
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24110-60H00-000 SHAFT,T/M INPUTMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24110-60H00-000 |
US $337.60 |
||
|
2
|
2
24151-78A20-000 SEAL,INPUT SHAFT OILMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24151-78A20-000 |
US $15.04 |
||
|
3
|
3
09262-25130-000
ベアリング,25X52X15
MT:4WD:(V,W); 2000-05-01~2001-10-01 |
09262-25130-000 |
— | ||
| replacement | |||||
|
3
|
3
09262-25129-000 BEARING(25X52X15)MT:4WD:(V,W); 2000-05-01~2001-10-01 |
09262-25129-000 |
US $45.60 |
||
|
4
|
4
09263-20056-000 BEARING(20X26X17)MT:4WD:(V,W); 2000-05-01~2001-10-01 |
09263-20056-000 |
US $8.64 |
||
|
5
|
5
09380-25011-000 RING,SNAPMT:4WD:(V,W); 2000-05-01~2001-10-01 |
09380-25011-000 |
US $2.08 |
||
|
6
|
6
09390-52003-000 C RINGMT:4WD:(V,W); 2000-05-01~2001-10-01 |
09390-52003-000 |
from US $3.47 |
||
|
7
|
7
24121-79A01-000
シャフト,トランスミッションメイン
MT:4WD:(V,W); 2000-05-01~2001-10-01 |
24121-79A01-000 |
— | ||
| replacement | |||||
|
7
|
7
24121-79A03-000
シャフト,トランスミッションメイン
MT:4WD:(V,W); 2000-05-01~2001-10-01 |
24121-79A03-000 |
— | ||
|
8
|
8
24158-78A20-000 C RINGMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24158-78A20-000 |
US $2.36 |
||
|
9
|
9
24211-78A20-000 GEAR,MAIN SFT LOWMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24211-78A20-000 |
US $168.91 |
||
|
10
|
10
24221-78A20-000
ギヤ,メインシャフト,セカンド
MT:4WD:(V,W); 2000-05-01~2001-10-01 |
24221-78A20-000 |
— | ||
| replacement | |||||
|
10
|
10
24221-78A21-000 GEAR,MAIN SFT 2NDMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24221-78A21-000 |
US $251.20 |
||
|
11
|
11
24231-81A80-000 GEAR,MAIN SFT 3RDMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24231-81A80-000 |
US $151.62 |
||
|
12
|
12
24250-78A22-000 GEAR,MAIN SFT 5THMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24250-78A22-000 |
US $132.48 |
||
|
13
|
13
24271-78A20-000 WASHER,MAIN SFT BEARINGMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24271-78A20-000 |
US $14.87 |
||
|
14
|
14
24418-79A00-000
スペーサ,メインシャフト,フィフス
MT:4WD:(V,W); 2000-05-01~2001-10-01 |
24418-79A00-000 |
— | ||
|
15
|
15
09262-27002-000
Bearing,27x55x13
(MT:4WD:(V,W)):4V; 2000-05-01~2001-10-01 |
09262-27002-000 |
— | ||
| replacement | |||||
|
15
|
15
09262-27001-000 BEARING(27X55X13)(MT:4WD:(V,W)):4V; 2000-05-01~2001-10-01 |
09262-27001-000 |
US $61.60 |
||
|
16
|
16
09263-22058-000
ベアリング,22X26X22.8
MT:4WD:(V,W); 2000-05-01~2001-10-01 |
09263-22058-000 |
— | ||
|
17
|
17
09263-30032-000 BEARING(30X35X21)MT:4WD:(V,W); 2000-05-01~2001-10-01 |
09263-30032-000 |
US $21.60 |
||
|
18
|
18
09263-35033-000 BEARING(35X40X21.8)MT:4WD:(V,W); 2000-05-01~2001-10-01 |
09263-35033-000 |
US $20 |
||
|
19
|
19
09380-22010-000 CIRCLIPMT:4WD:(V,W); 2000-05-01~2001-10-01 |
09380-22010-000 |
US $1.92 |
||
|
20
|
20
09380-25011-000 RING,SNAPMT:4WD:(V,W); 2000-05-01~2001-10-01 |
09380-25011-000 |
US $2.08 |
||
|
21
|
21
09380-27005-000 CIRCLIPMT:4WD:(V,W); 2000-05-01~2001-10-01 |
09380-27005-000 |
US $30.20 |
||
|
22
|
22
08113-60050-000 BEARINGBearing, lh MT:4WD:(V,W); 2000-05-01~2001-10-01 |
08113-60050-000 |
from US $10.72 |
||
|
23
|
23
24131-81A82-000 SHAFT,T/M COUNTERMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24131-81A82-000 |
US $614.08 |
||
|
24
|
24
24137-80F00-000 GEAR,T/M FRICTIONMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24137-80F00-000 |
US $30.73 |
||
|
25
|
25
24138-80F01-000 RETAINER,T/M FRICTION GEARMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24138-80F01-000 |
US $20.79 |
||
|
26
|
26
24139-80F00-000 SPRING,T/M FRICTION GEARMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24139-80F00-000 |
US $20 |
||
|
27
|
27
24371-80F01-000 GEAR,CTSHFT DRIVEMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24371-80F01-000 |
US $96.42 |
||
|
28
|
28
24451-60B00-000 CIRCLIPMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24451-60B00-000 |
US $1.60 |
||
|
29
|
29
24351-78A21-000
GEAR,CTSHFT 5TH
MT:4WD:(V,W); 2000-05-01~2001-10-01 |
24351-78A21-000 |
— | ||
|
30
|
30
24381-78A21-000 BEARING,COUNTER SHAFT CTRMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24381-78A21-000 |
US $48 |
||
|
31
|
31
09241-47002-000
PLUG
MT:4WD:(V,W); 2000-05-01~2001-10-01 |
09241-47002-000 |
— | ||
| replacement | |||||
|
31
|
31
09241-47009-000 PLUGMT:4WD:(V,W); 2000-05-01~2001-10-01 |
09241-47009-000 |
US $4.10 |
||
|
32
|
32
09380-17008-000 CIRCLIPMT:4WD:(V,W); 2000-05-01~2001-10-01 |
09380-17008-000 |
US $1.92 |
||
|
33
|
33
09380-19004-000 RING,SNAPMT:4WD:(V,W); 2000-05-01~2001-10-01 |
09380-19004-000 |
US $1.76 |
||
|
34
|
34
09262-20069-000 BEARING(20X47X14)(MT:4WD:(V,W)):4V; 2000-05-01~2001-10-01 |
09262-20069-000 |
from US $11.52 |
||
|
35
|
35
08113-63030-000 BEARINGBearing MT:4WD:(V,W); 2000-05-01~2001-10-01 |
08113-63030-000 |
from US $10.88 |
||
|
36
|
36
08331-41479-000 CIRCLIPMT:4WD:(V,W); 2000-05-01~2001-10-01 |
08331-41479-000 |
from US $2.56 |
||
|
37
|
37
24400-78A20-000 HUB ASSY,LOW SPEED SYNCMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24400-78A20-000 |
US $294.40 |
||
|
38
|
38
24410-78A20-000 HUB ASSY,HIGH SPEED SYNCMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24410-78A20-000 |
US $342.40 |
||
|
39
|
39
24417-78A21-000
プレート,フィフスシンクロナイザハブ
MT:4WD:(V,W); 2000-05-01~2001-10-01 |
24417-78A21-000 |
— | ||
| replacement | |||||
|
39
|
39
24417-78A22-000 PLATE,5TH SYNC HUBMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24417-78A22-000 |
US $7.51 |
||
|
40
|
40
24420-78A21-000 HUB ASSY,5TH SPEED SYNCMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24420-78A21-000 |
from US $223.56 |
||
|
41
|
41
24431-63B20-000 RING,2ND GEAR SYNCMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24431-63B20-000 |
US $72 |
||
|
42
|
42
24431-85020-000 RING,LOW SPEED SYNCMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24431-85020-000 |
US $72.80 |
||
|
43
|
43
24432-73D00-000 RING,HIGH SPEED SYNCMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24432-73D00-000 |
US $57.60 |
||
|
44
|
44
24436-60H00-000 SPRING,SYNC RING LOWMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24436-60H00-000 |
US $14.72 |
||
|
45
|
45
24441-60B00-000 SPRING,LOW SPEED SYNCMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24441-60B00-000 |
US $1.76 |
||
|
46
|
46
24443-80F00-000 SPRING,5TH SYNCMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24443-80F00-000 |
US $1.60 |
||
|
47
|
47
24451-60B00-000 CIRCLIPMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24451-60B00-000 |
US $1.60 |
||
|
48
|
48
24452-60B00-000 CIRCLIP,HIGH SPEED SYNC HUBMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24452-60B00-000 |
US $1.60 |
||
|
49
|
49
24453-78A21-000 CIRCLIP,SYNC HUBMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24453-78A21-000 |
US $2.65 |
||
|
50
|
50
24472-60B00-000 KEY,SYNCHRONIZERKey, low speed sync MT:4WD:(V,W); 2000-05-01~2001-10-01 |
24472-60B00-000 |
from US $1.92 |
||
|
51
|
51
09388-00020-000 SPRINGMT:4WD:(V,W); 2000-05-01~2001-10-01 |
09388-00020-000 |
US $1.82 |
||
|
52
|
52
24551-85051-000 SHAFT,REVERSE IDLE GEARMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24551-85051-000 |
US $32 |
||
|
53
|
53
24560-78A20-000
ギヤ,リバースアイドル
MT:4WD:(V,W); 2000-05-01~2001-10-01 |
24560-78A20-000 |
— | ||
| replacement | |||||
|
53
|
53
24560-78A60-000 GEAR,REV IDLEMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24560-78A60-000 |
US $114.40 |
||
|
54
|
54
24681-78A21-000 GEAR,MAIN SFT REVMT:4WD:(V,W); 2000-05-01~2001-10-01 |
24681-78A21-000 |
US $188.80 |
||
|
55
|
55
25482-78A20-000 PLATE,REV GEAR SHAFT STOPMT:4WD:(V,W); 2000-05-01~2001-10-01 |
25482-78A20-000 |
US $9.44 |
||
|
56
|
56
09166-14012-000 WASHERMT:4WD:(V,W); 2000-05-01~2001-10-01 |
09166-14012-000 |
US $1.12 |
||
|
57
|
57
09263-27011-000 BEARING(27X32X23.8)MT:4WD:(V,W); 2000-05-01~2001-10-01 |
09263-27011-000 |
US $9.28 |
||
|
58
|
58
01570-06163-000
Bolt
MT:4WD:(V,W); 2000-05-01~2001-10-01 |
01570-06163-000 |
— | ||
| replacements | |||||
|
58
|
58
01570-0616B-000 BoltMT:4WD:(V,W); 2000-05-01~2001-10-01 |
01570-0616B-000 |
from US $0.80 |
||
|
58
|
58
01570-0616A-000 BoltMT:4WD:(V,W); 2000-05-01~2001-10-01 |
01570-0616A-000 |
from US $0.80 |
||
|
59
|
59
26121-76A00-000
Ring, exciter
MT:4WD:(V,W); 2000-05-01~2001-10-01 |
26121-76A00-000 |
— | ||
| replacement | |||||
|
59
|
59
26121-76A01-000 RING,SPEEDOMETER EXCITERMT:4WD:(V,W); 2000-05-01~2001-10-01 |
26121-76A01-000 |
US $10.40 |
||
|
60
|
60
09380-22010-000 CIRCLIPMT:4WD:(V,W); 2000-05-01~2001-10-01 |
09380-22010-000 |
US $1.92 |
||
