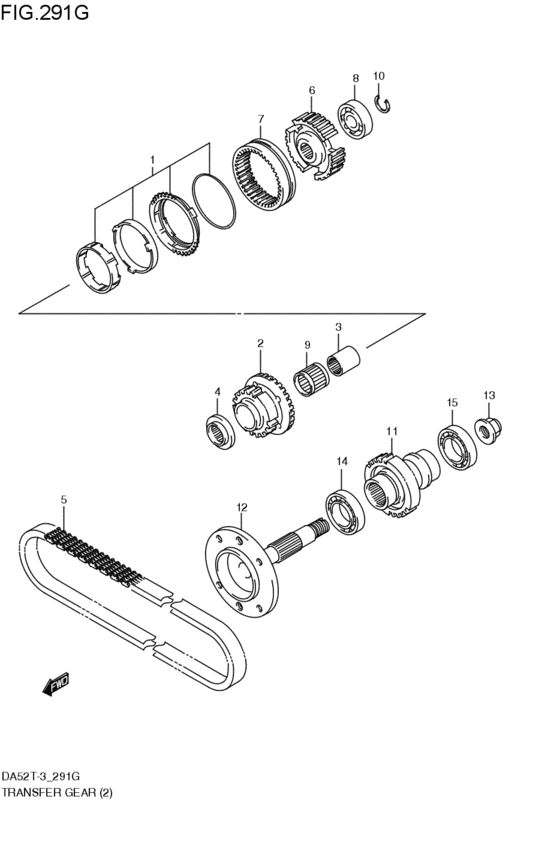

transfer gear (MT:4WD:V:4V; 2000-05-01~2001-10-01) Diagram Suzuki CARRY/EVERY
- Year
- 2000 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 4WD
- transmission
- MT
- grade
- PAS
- number of the gears
- 5MT
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24430-79A01-000 RING ASSY,T/F DRIVE SYNCMT:4WD:V:4V; 2000-05-01~2001-10-01 |
24430-79A01-000 |
US $106.72 |
||
|
2
|
2
29221-79A12-000 SPROCKET,T/F DRIVEMT:4WD:V:4V; 2000-05-01~2001-10-01 |
29221-79A12-000 |
US $86.85 |
||
|
3
|
3
29222-79A00-000 BUSH,T/F SPROCKET NDLMT:4WD:V:4V; 2000-05-01~2001-10-01 |
29222-79A00-000 |
US $9.79 |
||
|
4
|
4
29223-79A00-000 WASHER,T/F SPROCKETMT:4WD:V:4V; 2000-05-01~2001-10-01 |
29223-79A00-000 |
US $11.30 |
||
|
5
|
5
29225-79A02-000 CHAIN,FR DRIVEMT:4WD:V:4V; 2000-05-01~2001-10-01 |
29225-79A02-000 |
US $163.20 |
||
|
6
|
6
29231-79A01-000 HUB,T/F FR DRIVE SYNCMT:4WD:V:4V; 2000-05-01~2001-10-01 |
29231-79A01-000 |
US $52.62 |
||
|
7
|
7
29232-79A01-000 SLEEVE,FRONT DRIVE SYNCMT:4WD:V:4V; 2000-05-01~2001-10-01 |
29232-79A01-000 |
US $58.88 |
||
|
8
|
8
09262-22031-000 BEARING(22X52X15)MT:4WD:V:4V; 2000-05-01~2001-10-01 |
09262-22031-000 |
from US $12 |
||
|
9
|
9
09263-32014-000 BEARING(32X37X29.9)MT:4WD:V:4V; 2000-05-01~2001-10-01 |
09263-32014-000 |
US $11.20 |
||
|
10
|
10
09380-22010-000 CIRCLIPMT:4WD:V:4V; 2000-05-01~2001-10-01 |
09380-22010-000 |
US $1.92 |
||
|
11
|
11
29131-79A01-000 SPROCKET,T/F OUTPUT FRONTMT:4WD:V:4V; 2000-05-01~2001-10-01 |
29131-79A01-000 |
US $48.94 |
||
|
12
|
12
29150-79A20-000
シャフト,トランスファアウトプツト,フロント
MT:4WD:V:4V; 2001-02-01~2001-10-01 |
29150-79A20-000 |
— | ||
|
12
|
12
29151-79A10-000 SHAFT,T/F OUTPUT FRMT:4WD:V:4V; 2000-05-01~2001-02-01 |
29151-79A10-000 |
US $96.05 |
||
|
13
|
13
09159-20012-000 NUTMT:4WD:V:4V; 2000-05-01~2001-10-01 |
09159-20012-000 |
US $89.10 |
||
|
14
|
14
09262-30083-000 BEARING(30X55X13)MT:4WD:V:4V; 2000-05-01~2001-10-01 |
09262-30083-000 |
US $30.40 |
||
|
15
|
15
09262-25003-000 BEARING(25X52X15)Bearing (25x52x15) MT:4WD:V:4V; 2000-05-01~2001-10-01 |
09262-25003-000 |
from US $12.80 |
