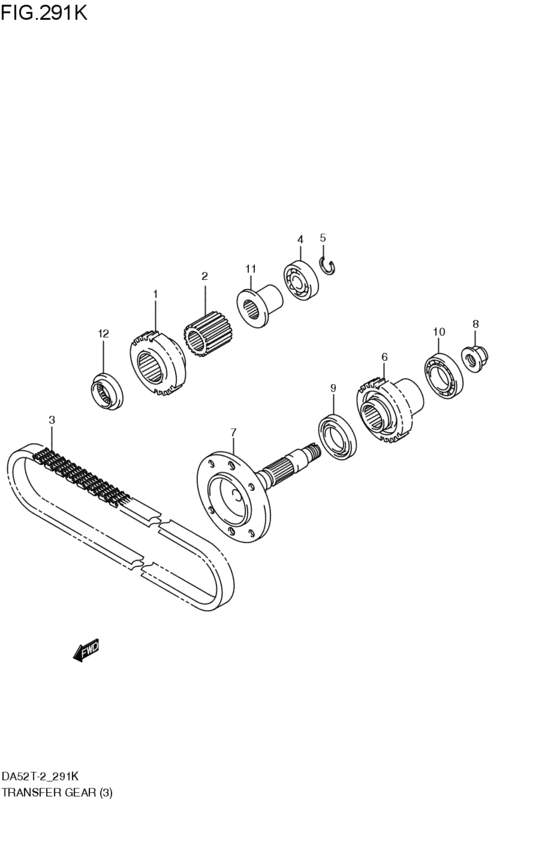

transfer gear (MT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01) Diagram Suzuki CARRY/EVERY
- Year
- 1999 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 4WD
- transmission
- MT
- grade
- PX
- number of the gears
- 5MT
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29221-76A21-000 SPROCKET,FRONT DRIVEMT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
29221-76A21-000 |
US $45.63 |
||
|
2
|
2
29222-76A20-000 BUSH,T/F SPROCKETMT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
29222-76A20-000 |
US $16.23 |
||
|
3
|
3
29225-79A01-000
チェーン,フロントドライブ
MT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
29225-79A01-000 |
— | ||
| replacement | |||||
|
3
|
3
29225-79A02-000 CHAIN,FR DRIVEMT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
29225-79A02-000 |
US $163.20 |
||
|
4
|
4
09262-22031-000 BEARING(22X52X15)MT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
09262-22031-000 |
from US $12 |
||
|
5
|
5
09380-22010-000 CIRCLIPMT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
09380-22010-000 |
US $1.92 |
||
|
6
|
6
29131-79A01-000 SPROCKET,T/F OUTPUT FRONTMT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
29131-79A01-000 |
US $48.94 |
||
|
7
|
7
29151-79A10-000 SHAFT,T/F OUTPUT FRMT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
29151-79A10-000 |
US $96.05 |
||
|
8
|
8
09159-20012-000 NUTMT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
09159-20012-000 |
US $89.10 |
||
|
9
|
9
09262-30083-000 BEARING(30X55X13)MT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
09262-30083-000 |
US $30.40 |
||
|
10
|
10
09262-25003-000 BEARING(25X52X15)Bearing (25x52x15) MT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
09262-25003-000 |
from US $12.80 |
||
|
11
|
11
29224-76A20-000 SPACER,T/F SPROCKETMT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
29224-76A20-000 |
US $9.79 |
||
|
12
|
12
29223-79A00-000 WASHER,T/F SPROCKETMT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
29223-79A00-000 |
US $11.30 |
||
