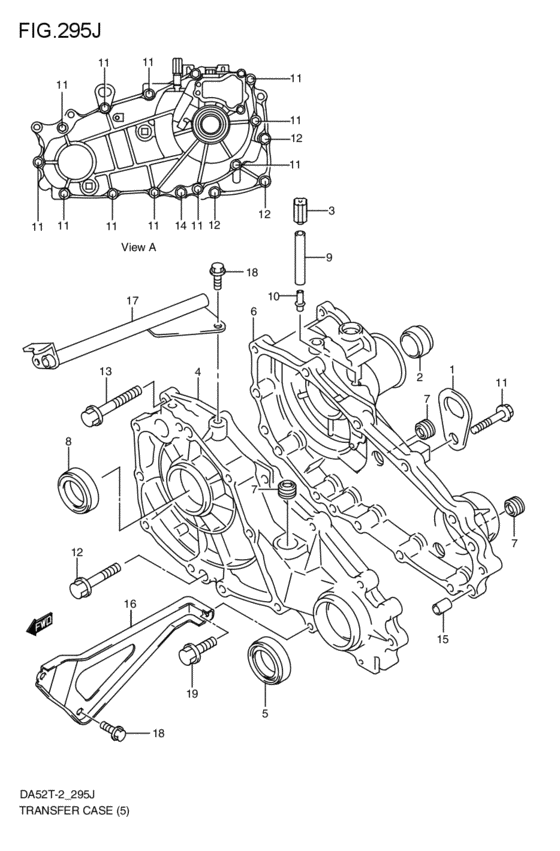

transfer case (AT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01) Diagram Suzuki CARRY/EVERY
- Year
- 1999 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 4WD
- transmission
- AT
- grade
- PXL
- number of the gears
- 4AT
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11851-72B21-000 HOOK,ENGINEAT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
11851-72B21-000 |
US $2.80 |
||
|
2
|
2
24780-78A00-000 SEAL,EXTENSION CASEAT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
24780-78A00-000 |
from US $5.51 |
||
|
3
|
3
27991-65D01-000 PLUG,BREATHERAT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
27991-65D01-000 |
from US $1.92 |
||
|
4
|
4
29511-79A31-000
ケース,トランスファ,フロント
AT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
29511-79A31-000 |
— | ||
| replacements | |||||
|
4
|
4
29150-79A20-000
シャフト,トランスファアウトプツト,フロント
AT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
29150-79A20-000 |
— | ||
|
4
|
4
29511-79A33-000 CASE,T/F,FRAT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
29511-79A33-000 |
US $183.26 |
||
|
5
|
5
29515-79A00-000 SEAL,T/F FR CASE OILAT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
29515-79A00-000 |
US $9.92 |
||
|
6
|
6
29520-79A21-000
ケース,トランスファ,リヤ
AT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
29520-79A21-000 |
— | ||
| replacement | |||||
|
6
|
6
29520-79A23-000
CASE,T/F,RR
AT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
29520-79A23-000 |
— | ||
|
7
|
7
09246-16010-000 PLUGAT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
7
|
7
09246-16021-000 Plug,t/m Oil DrainAT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
09246-16021-000 |
from US $4.01 |
||
|
8
|
8
09282-35002-000 SEAL,OIL(35X55X9)AT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
09282-35002-000 |
from US $10.08 |
||
|
9
|
9
09352-70113-600
HOSE(7X11X600)
L:600>40; AT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
09352-70113-600 |
— | ||
| replacement | |||||
|
9
|
9
09352-70119-600 Hose(7X11X600)L:600>40; AT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
09352-70119-600 |
from US $4.64 |
||
|
10
|
10
09364-08004-000 UNIONAT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
09364-08004-000 |
US $14.40 |
||
|
11
|
11
01550-08403-000
Bolt
AT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0840B-000 BoltAT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
01550-0840B-000 |
from US $1.12 |
||
|
11
|
11
01550-0840A-000 BOLTAT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
01550-0840A-000 |
from US $1.12 |
||
|
12
|
12
01550-10403-000
Bolt
AT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
01550-10403-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-1040B-000 BOLTAT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
01550-1040B-000 |
from US $3.74 |
||
|
12
|
12
01550-1040A-000 BOLTAT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
01550-1040A-000 |
from US $1.12 |
||
|
13
|
13
01550-10603-000
Bolt
AT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
01550-10603-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-1060B-000 BoltAT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
01550-1060B-000 |
US $1.60 |
||
|
13
|
13
01550-1060A-000 BoltAT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
01550-1060A-000 |
from US $1.60 |
||
|
14
|
14
01550-10953-000
Bolt
AT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
01550-10953-000 |
— | ||
| replacement | |||||
|
14
|
14
01550-1095A-000 BoltAT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
01550-1095A-000 |
US $24.70 |
||
|
15
|
15
04211-13149-000 PINAT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
04211-13149-000 |
from US $1.28 |
||
|
16
|
16
29621-60H10-000
スチフナ,レフト
AT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
29621-60H10-000 |
— | ||
|
17
|
17
29630-60H10-000
スチフナ,ライト
AT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
29630-60H10-000 |
— | ||
| replacement | |||||
|
17
|
17
29630-60H11-000
スチフナ,ライト
AT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
29630-60H11-000 |
— | ||
|
18
|
18
01550-08203-000
Bolt
AT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0820B-000 BoltAT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
01550-0820B-000 |
from US $0.91 |
||
|
18
|
18
01550-0820A-000 BOLTBolt, funnel bracket AT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
01550-0820A-000 |
from US $0.96 |
||
|
19
|
19
01550-10253-000
Bolt
AT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
01550-10253-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-1025B-000 BoltBolt, rr swgarm bracket, l AT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
01550-1025B-000 |
from US $5.59 |
||
|
19
|
19
01550-1025A-000 BOLTBolt, drive gear AT:4AT:4WD:(V:TURBO,W); 1999-11-01~2000-06-01 |
01550-1025A-000 |
from US $1.06 |
||
