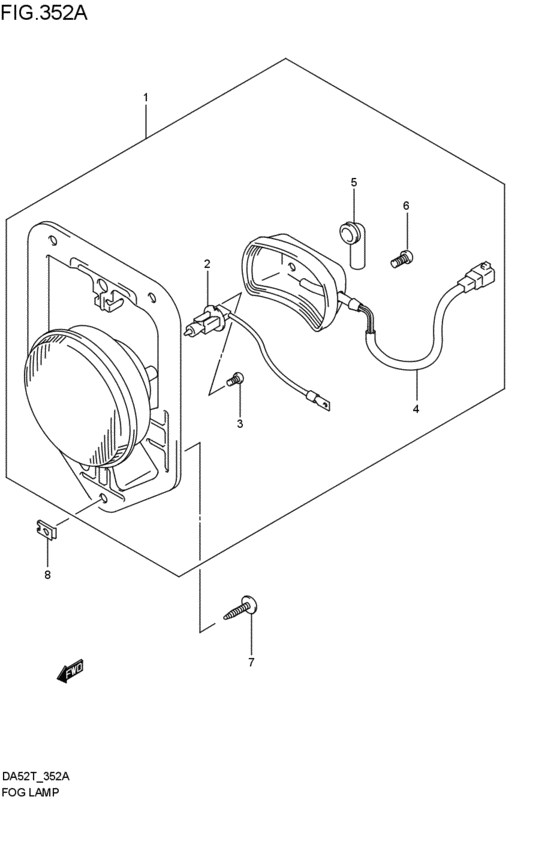

fog light (PY,PZ; 1998-12-01~2000-06-01) Diagram Suzuki CARRY/EVERY
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- TURBO
- supercharge
- TEPI
- drive
- 4WD
- transmission
- AT
- grade
- PY
- body
- DB52V
- air bag
- NAB
- abs
- NABS
- power steering
- PWST
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35500-79A00-000
ランプアッシ,フォグ
PY,PZ; 1998-12-01~2000-06-01 |
35500-79A00-000 |
— | ||
|
2
|
2
09471-12120-000
BULB(12V35W H3)
PY,PZ; 1998-12-01~2000-06-01 |
09471-12120-000 |
— | ||
|
3
|
3
02112-03063-000
Screw 3x6
PY,PZ; 1998-12-01~2000-06-01 |
02112-03063-000 |
— | ||
| replacement | |||||
|
3
|
3
02112-0306B-000 SCREWPY,PZ; 1998-12-01~2000-06-01 |
02112-0306B-000 |
from US $2.52 |
||
|
4
|
4
35532-77A00-000
Socket & cord assy,fog lamp
PY,PZ; 1998-12-01~2000-06-01 |
35532-77A00-000 |
— | ||
|
5
|
5
35529-77A00-000
TUBE
PY,PZ; 1998-12-01~2000-06-01 |
35529-77A00-000 |
— | ||
|
6
|
6
35546-77A00-000
SCREW
PY,PZ; 1998-12-01~2000-06-01 |
35546-77A00-000 |
— | ||
|
7
|
7
03541-05163-000
Screw
PY,PZ; 1998-12-01~2000-06-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
7
|
7
03541-0516A-000 SCREWPY,PZ; 1998-12-01~2000-06-01 |
03541-0516A-000 |
from US $0.68 |
||
|
8
|
8
09148-05038-000 NUTNut, inner PY,PZ; 1998-12-01~2000-06-01 |
09148-05038-000 |
from US $0.91 |
||
