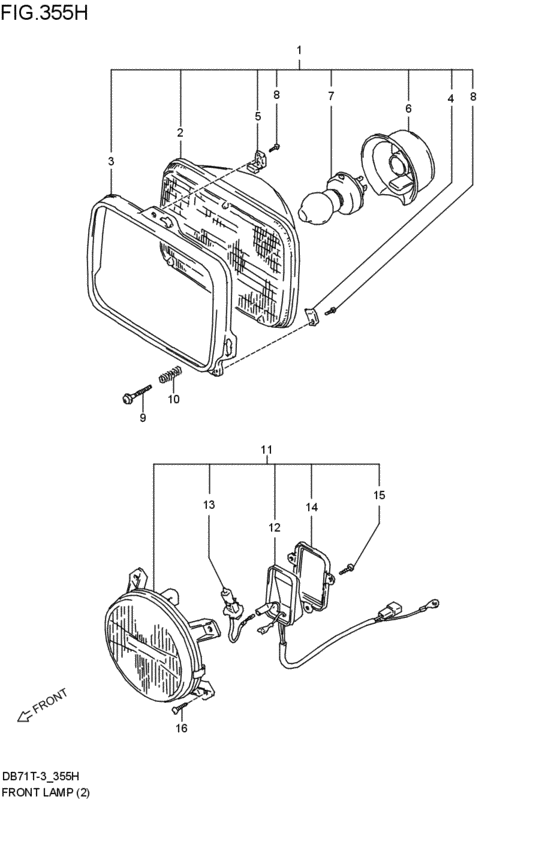

front lamp (S; 1987-08-01~1989-04-01) Diagram Suzuki CARRY/EVERY
- Year
- 1987 - 1989
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- transmission
- 5MT
- grade
- PS
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35100-85150-000
ヘッドランプアッシ
S; 1987-08-01~1989-04-01 |
35100-85150-000 |
— | ||
|
2
|
2
35121-84060-000
ユニット,ヘッドランプ
S; 1987-08-01~1989-04-01 |
35121-84060-000 |
— | ||
|
3
|
3
35131-85020-000 RIMS; 1987-08-01~1989-04-01 |
35131-85020-000 |
US $30.36 |
||
|
4
|
4
35136-85020-000 PLATES; 1987-08-01~1989-04-01 |
35136-85020-000 |
US $2.17 |
||
|
5
|
5
35137-85020-000 PLATES; 1987-08-01~1989-04-01 |
35137-85020-000 |
US $2.17 |
||
|
6
|
6
35173-49200-000
Socket cover
S; 1987-08-01~1989-04-01 |
35173-49200-000 |
— | ||
| replacement | |||||
|
6
|
6
35173-38A00-000 COVER,SOCKETSocket cover S; 1987-08-01~1989-04-01 |
35173-38A00-000 |
from US $8.76 |
||
|
7
|
7
09471-12061-000
Bulb (12v, 60/55w, h4)
STANLEY,14-0182; S; 1987-08-01~1989-04-01 |
09471-12061-000 |
— | ||
| replacement | |||||
|
7
|
7
09471-12144-000 BULB(12V60/55W ,YELLOW)STANLEY,14-0182; S; 1987-08-01~1989-04-01 |
09471-12144-000 |
US $758.10 |
||
|
8
|
8
03212-04087-000
SCREW
S; 1987-08-01~1989-04-01 |
03212-04087-000 |
— | ||
| replacement | |||||
|
8
|
8
03212-04089-000
Screw 4x8
S; 1987-08-01~1989-04-01 |
03212-04089-000 |
— | ||
|
9
|
9
09136-05031-000 SCREW(5X35)S; 1987-08-01~1989-04-01 |
09136-05031-000 |
US $1.28 |
||
|
10
|
10
09440-09020-000 SPRINGS; 1987-08-01~1989-04-01 |
09440-09020-000 |
US $1.28 |
||
|
11
|
11
35500-85500-000
ランプアッシ,フォグ
S; 1987-08-01~1989-04-01 |
35500-85500-000 |
— | ||
|
12
|
12
35530-85500-000
コード,フォグランプ
S; 1987-08-01~1989-04-01 |
35530-85500-000 |
— | ||
|
13
|
13
09471-12123-000
Bulb,12v35w,h3
S; 1987-08-01~1989-04-01 |
09471-12123-000 |
— | ||
|
14
|
14
35524-85500-000
プレート,ソケットカバー
S; 1987-08-01~1989-04-01 |
35524-85500-000 |
— | ||
|
15
|
15
03541-05166-000
スクリュ
S; 1987-08-01~1989-04-01 |
03541-05166-000 |
— | ||
| replacement | |||||
|
15
|
15
03541-0516A-000 SCREWS; 1987-08-01~1989-04-01 |
03541-0516A-000 |
from US $0.76 |
||
|
16
|
16
03541-05166-000
スクリュ
S; 1987-08-01~1989-04-01 |
03541-05166-000 |
— | ||
| replacement | |||||
|
16
|
16
03541-0516A-000 SCREWS; 1987-08-01~1989-04-01 |
03541-0516A-000 |
from US $0.76 |
||
