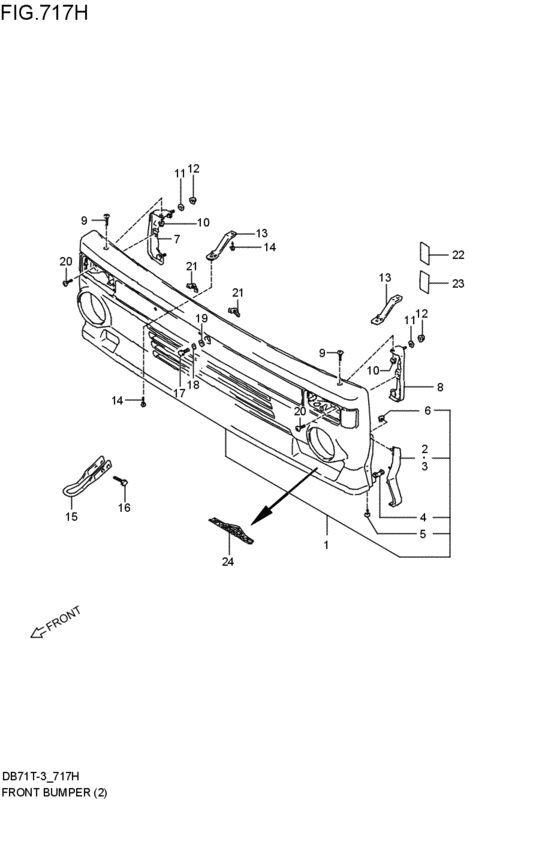

front bumper (S; 1987-08-01~1989-04-01) Diagram Suzuki CARRY/EVERY
- Year
- 1987 - 1989
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- transmission
- 5MT
- grade
- PS
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71710-85560-8KP
バー,フロントバンパ
ホワイト/ブラック; S; 1987-08-01~1989-04-01 |
71710-85560-8KP |
— | ||
| replacement | |||||
|
1
|
1
71724-60C00-000 RETAINER,FR LICENSE PLATEホワイト/ブラック; S; 1987-08-01~1989-04-01 |
71724-60C00-000 |
US $1.60 |
||
|
2
|
2
71712-85560-8KP
エクステンション,ライト
ホワイト/ブラック; S; 1987-08-01~1989-04-01 |
71712-85560-8KP |
— | ||
|
3
|
3
71713-85560-8KP
エクステンション,レフト
ホワイト/ブラック; S; 1987-08-01~1989-04-01 |
71713-85560-8KP |
— | ||
|
4
|
4
71714-85560-000
リンフォースメント
S; 1987-08-01~1989-04-01 |
71714-85560-000 |
— | ||
|
5
|
5
02142-06126-000
Screw, front fender rear
S; 1987-08-01~1989-04-01 |
02142-06126-000 |
— | ||
| replacements | |||||
|
5
|
5
02142-0612B-000 SCREWS; 1987-08-01~1989-04-01 |
02142-0612B-000 |
from US $0.76 |
||
|
5
|
5
02142-0612A-000 SCREWS; 1987-08-01~1989-04-01 |
02142-0612A-000 |
from US $0.80 |
||
|
6
|
6
09148-03004-000
Nut
S; 1987-08-01~1989-04-01 |
09148-03004-000 |
— | ||
| replacement | |||||
|
6
|
6
09148-03011-000 NUTS; 1987-08-01~1989-04-01 |
09148-03011-000 |
from US $2.84 |
||
|
7
|
7
71721-85560-000
ステー,フロントバンパ,ライト
S; 1987-08-01~1989-04-01 |
71721-85560-000 |
— | ||
|
8
|
8
71731-85560-000
ステー,フロントバンパ,レフト
S; 1987-08-01~1989-04-01 |
71731-85560-000 |
— | ||
|
9
|
9
57439-79001-000
ボルト,バンパ
S; 1987-08-01~1989-04-01 |
57439-79001-000 |
— | ||
| replacement | |||||
|
9
|
9
57439-79003-000 BOLT,FR BUMPERS; 1987-08-01~1989-04-01 |
57439-79003-000 |
US $1.92 |
||
|
10
|
10
08316-16066-000
Nut
S; 1987-08-01~1989-04-01 |
08316-16066-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1006B-000 NUTS; 1987-08-01~1989-04-01 |
08316-1006B-000 |
from US $0.76 |
||
|
11
|
11
09161-07008-000 WASHER(7.5X22X1)S; 1987-08-01~1989-04-01 |
09161-07008-000 |
US $11.80 |
||
|
12
|
12
08316-16086-000
Nut, reverse lever pivot
S; 1987-08-01~1989-04-01 |
08316-16086-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-1008B-000 NUTS; 1987-08-01~1989-04-01 |
08316-1008B-000 |
from US $0.76 |
||
|
13
|
13
71722-85570-000
ステー,フロントバンパ,ロア
S; 1987-08-01~1989-04-01 |
71722-85570-000 |
— | ||
|
14
|
14
03141-05163-000
Screw
S; 1987-08-01~1989-04-01 |
03141-05163-000 |
— | ||
| replacement | |||||
|
14
|
14
03141-0516A-000 SCREWS; 1987-08-01~1989-04-01 |
03141-0516A-000 |
from US $0.80 |
||
|
15
|
15
71723-85560-000
フック,フロントトーイング
S; 1987-08-01~1989-04-01 |
71723-85560-000 |
— | ||
|
16
|
16
01107-08458-000
Bolt
S; 1987-08-01~1989-04-01 |
01107-08458-000 |
— | ||
| replacement | |||||
|
16
|
16
01500-08453-000 BoltBolt, lower bracket S; 1987-08-01~1989-04-01 |
01500-08453-000 |
from US $1.22 |
||
|
17
|
17
01107-08166-000
Bolt m8x1.25x16
S; 1987-08-01~1989-04-01 |
01107-08166-000 |
— | ||
| replacement | |||||
|
17
|
17
01500-0816B-000 BoltBolt S; 1987-08-01~1989-04-01 |
01500-0816B-000 |
from US $0.80 |
||
|
18
|
18
08321-21086-000
Wsherlck8.2x15.2x1.6
S; 1987-08-01~1989-04-01 |
08321-21086-000 |
— | ||
| replacements | |||||
|
18
|
18
08321-0108B-000 WASHER,LOCKS; 1987-08-01~1989-04-01 |
08321-0108B-000 |
from US $0.76 |
||
|
18
|
18
08321-0108A-000 WASHER,LOCKS; 1987-08-01~1989-04-01 |
08321-0108A-000 |
from US $0.80 |
||
|
19
|
19
08322-11086-000
Washer
S; 1987-08-01~1989-04-01 |
08322-11086-000 |
— | ||
| replacements | |||||
|
19
|
19
08322-0108B-000 WASHERS; 1987-08-01~1989-04-01 |
08322-0108B-000 |
from US $0.80 |
||
|
19
|
19
08322-0108A-000 WASHERS; 1987-08-01~1989-04-01 |
08322-0108A-000 |
from US $0.80 |
||
|
20
|
20
02142-06125-000
Screw
S; 1987-08-01~1989-04-01 |
02142-06125-000 |
— | ||
| replacements | |||||
|
20
|
20
02142-0612B-000 SCREWS; 1987-08-01~1989-04-01 |
02142-0612B-000 |
from US $0.76 |
||
|
20
|
20
02142-0612A-000 SCREWS; 1987-08-01~1989-04-01 |
02142-0612A-000 |
from US $0.80 |
||
|
21
|
21
57515-79001-000
RETAINER,LICENSE PLATE
S; 1987-08-01~1989-04-01 |
57515-79001-000 |
— | ||
|
22
|
22
72131-85000-000 SEAL,FR DOOR HINGE HOLES; 1987-08-01~1989-04-01 |
72131-85000-000 |
US $1.60 |
||
|
23
|
23
72132-85000-000
シール,フロントドアヒンジホール,ロア
ブラック; S; 1987-08-01~1989-04-01 |
72132-85000-000 |
— | ||
| replacement | |||||
|
23
|
23
72131-85000-000 SEAL,FR DOOR HINGE HOLEブラック; S; 1987-08-01~1989-04-01 |
72131-85000-000 |
US $1.60 |
||
|
24
|
24
77671-85580-2CN
マーク,インタクーラ
レッド/ブルー; S; 1987-08-01~1989-04-01 |
77671-85580-2CN |
— | ||
| replacement | |||||
|
24
|
24
77671-85580-8FY
マーク,インタクーラ
レッド/ブルー; S; 1987-08-01~1989-04-01 |
77671-85580-8FY |
— | ||
