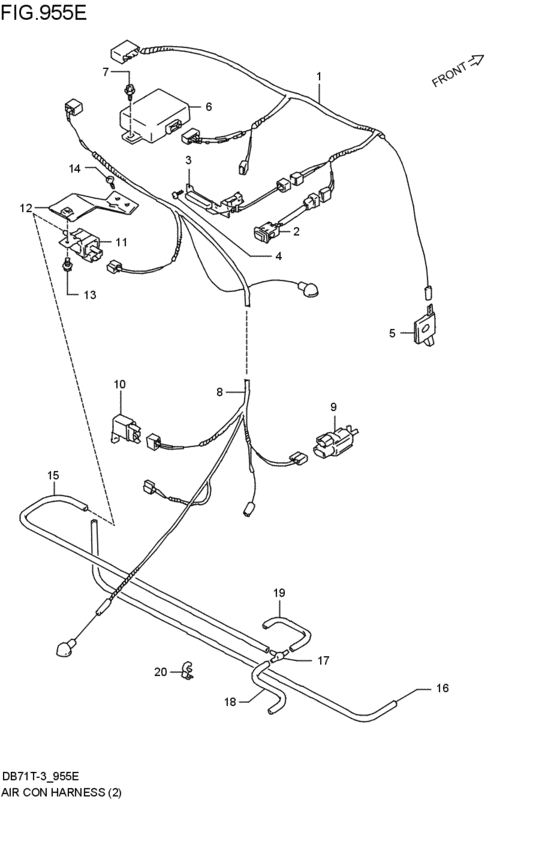

air-conditioner harness (V:SA; 1987-08-01~1989-04-01) Diagram Suzuki CARRY/EVERY
- Year
- 1987 - 1989
- Sales region
- Japan
- Engine
- 3V
- supercharge
- CARB
- transmission
- 5MT
- grade
- SA
- body
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95581-85121-000
ハーネス,ワイヤリング,NO.1
V:SA; 1987-08-01~1989-04-01 |
95581-85121-000 |
— | ||
|
2
|
2
95571-85500-000
スイッチ,エアコン
V:SA; 1987-08-01~1989-04-01 |
95571-85500-000 |
— | ||
| replacement | |||||
|
2
|
2
95571-85501-000
SWITCH,AIR CON
V:SA; 1987-08-01~1989-04-01 |
95571-85501-000 |
— | ||
|
3
|
3
95590-85523-000 VOLUME ASSY,A/CV:SA; 1987-08-01~1989-04-01 |
95590-85523-000 |
US $67.71 |
||
|
4
|
4
03241-04126-000
Screw l:12
V:SA; 1987-08-01~1989-04-01 |
03241-04126-000 |
— | ||
| replacement | |||||
|
4
|
4
03242-0412B-000 SCREWV:SA; 1987-08-01~1989-04-01 |
03242-0412B-000 |
from US $0.80 |
||
|
5
|
5
95579-85000-000
スイッチアッシ,アクセルオフ
V:SA; 1987-08-01~1989-04-01 |
95579-85000-000 |
— | ||
|
6
|
6
95575-85122-000
コントローラアッシ,エアコン
V:SA; 1987-08-01~1989-04-01 |
95575-85122-000 |
— | ||
| replacement | |||||
|
6
|
6
95575-85123-000
CONTROLLER,A/C
V:SA; 1987-08-01~1989-04-01 |
95575-85123-000 |
— | ||
|
7
|
7
09132-06010-000 SCREW(6X16)V:SA; 1987-08-01~1989-04-01 |
09132-06010-000 |
from US $1.08 |
||
|
8
|
8
95582-85120-000
ハーネス,ワイヤリング,NO.2
V:SA; 1987-08-01~1989-04-01 |
95582-85120-000 |
— | ||
|
9
|
9
95551-79640-000
バルブ,アイドルアップ
V:SA; 1987-08-01~1989-04-01 |
95551-79640-000 |
— | ||
| replacement | |||||
|
9
|
9
95160-70B00-000 VSV,IDLE UPV:SA; 1987-08-01~1989-04-01 |
95160-70B00-000 |
US $59.98 |
||
|
10
|
10
95572-79641-000 RELAY,A/CV:SA; 1987-08-01~1989-04-01 |
95572-79641-000 |
US $42.69 |
||
|
11
|
11
18117-79501-000
バルブ,3ウェイソレノイド
V:SA; 1987-08-01~1989-04-01 |
18117-79501-000 |
— | ||
|
12
|
12
18417-85560-000
ブラケット,バキュームバルブ
V:SA; 1987-08-01~1989-04-01 |
18417-85560-000 |
— | ||
|
13
|
13
01517-06103-000
ボルト
V:SA; 1987-08-01~1989-04-01 |
01517-06103-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0610A-000 BOLTV:SA; 1987-08-01~1989-04-01 |
01550-0610A-000 |
from US $0.80 |
||
|
13
|
13
01550-0610B-000 BoltBolt V:SA; 1987-08-01~1989-04-01 |
01550-0610B-000 |
from US $0.80 |
||
|
14
|
14
03141-06103-000
Screw
V:SA; 1987-08-01~1989-04-01 |
03141-06103-000 |
— | ||
| replacement | |||||
|
14
|
14
03141-0610A-000 SCREWV:SA; 1987-08-01~1989-04-01 |
03141-0610A-000 |
US $0.80 |
||
|
15
|
15
09358-35752-600
ホース,3.5X7.5X600
V:SA; 1987-08-01~1989-04-01 |
09358-35752-600 |
— | ||
| replacements | |||||
|
15
|
15
09355-35754-601
HOSE(3.5X7.5X601)
V:SA; 1987-08-01~1989-04-01 |
09355-35754-601 |
— | ||
|
15
|
15
09355-35006-601 Hose(3.5X7.5X601)V:SA; 1987-08-01~1989-04-01 |
09355-35006-601 |
from US $5.78 |
||
|
16
|
16
09358-35752-00A
ホース,3.5X7.5X1000
グレ-,L:1000>820; V:SA; 1987-08-01~1989-04-01 |
09358-35752-00A |
— | ||
| replacements | |||||
|
16
|
16
09355-35754-00B
HOSE(3.5X7.5X2000)
グレ-,L:1000>820; V:SA; 1987-08-01~1989-04-01 |
09355-35754-00B |
— | ||
|
16
|
16
09355-35006-00B Hose(3.5X7.5X2000)グレ-,L:1000>820; V:SA; 1987-08-01~1989-04-01 |
09355-35006-00B |
US $28.80 |
||
|
17
|
17
09367-04002-000 CONNECTORV:SA; 1987-08-01~1989-04-01 |
09367-04002-000 |
US $4.80 |
||
|
18
|
18
09358-35752-300
ホース,3.5X7.5X300
L:300>140; V:SA; 1987-08-01~1989-04-01 |
09358-35752-300 |
— | ||
| replacements | |||||
|
18
|
18
09355-35754-601
HOSE(3.5X7.5X601)
L:300>140; V:SA; 1987-08-01~1989-04-01 |
09355-35754-601 |
— | ||
|
18
|
18
09355-35006-601 Hose(3.5X7.5X601)L:300>140; V:SA; 1987-08-01~1989-04-01 |
09355-35006-601 |
from US $5.78 |
||
|
19
|
19
09343-03077-000
ホース,#30/3.5X7.5X40
V:SA; 1987-08-01~1989-04-01 |
09343-03077-000 |
— | ||
| replacements | |||||
|
19
|
19
09355-35754-601
HOSE(3.5X7.5X601)
V:SA; 1987-08-01~1989-04-01 |
09355-35754-601 |
— | ||
|
19
|
19
09355-35006-601 Hose(3.5X7.5X601)V:SA; 1987-08-01~1989-04-01 |
09355-35006-601 |
from US $5.78 |
||
|
20
|
20
09408-00033-000 CLAMPClamp V:SA; 1987-08-01~1989-04-01 |
09408-00033-000 |
from US $1.60 |
||
