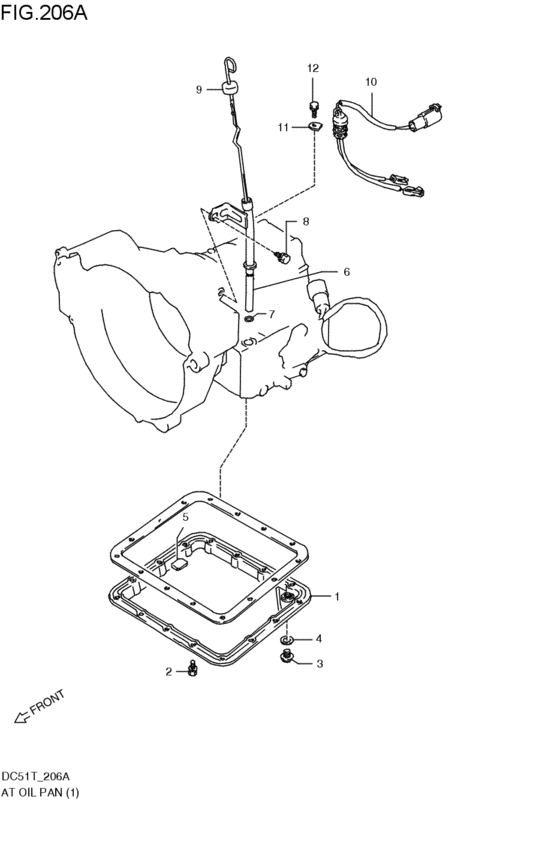

at - oil pan (C:3AT:2WD; 1991-09-01~1997-03-01) Diagram Suzuki CARRY/EVERY
- Year
- 1993
- Sales region
- Japan
- supercharge
- CARB
- drive
- 2WD
- transmission
- AT
- grade
- NSB
- number of the gears
- 3AT
- type
- TYPE2
- body
- K
- valve
- 4V
- air-conditioner
- AIRCON-N
- アングル
- NANGL
- 農繁
- NNOUHAN
- 郵政
- NYUSEI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24761-85500-000 PAN,T/M OILC:3AT:2WD; 1991-09-01~1997-03-01 |
24761-85500-000 |
US $125.86 |
||
|
2
|
2
24882-85501-000 BOLT,T/M OIL PANC:3AT:2WD; 1991-09-01~1997-03-01 |
24882-85501-000 |
US $1.52 |
||
|
3
|
3
09247-10007-000 PLUGC:3AT:2WD; 1991-09-01~1997-03-01 |
09247-10007-000 |
from US $2.43 |
||
|
4
|
4
09168-12009-000 GASKET(12X16.7X2)C:3AT:2WD; 1991-09-01~1997-03-01 |
09168-12009-000 |
US $1.22 |
||
|
5
|
5
24861-78230-000 MAGNET,OIL CLEANERC:3AT:2WD; 1991-09-01~1997-03-01 |
24861-78230-000 |
US $2.58 |
||
|
6
|
6
24785-85500-000
Tube assy,t/m oil filler
C:3AT:2WD; 1991-09-01~1997-03-01 |
24785-85500-000 |
— | ||
|
7
|
7
24785-82300-000 O-RING,OIL FILLER TUBEC:3AT:2WD; 1991-09-01~1997-03-01 |
24785-82300-000 |
US $1.62 |
||
|
8
|
8
01570-08163-000
Bolt
C:3AT:2WD; 1991-09-01~1997-03-01 |
01570-08163-000 |
— | ||
| replacement | |||||
|
8
|
8
01570-0816A-000 BOLTC:3AT:2WD; 1991-09-01~1997-03-01 |
01570-0816A-000 |
from US $0.96 |
||
|
9
|
9
24830-85500-000
GAUGE,T/M OIL LEVEL
C:3AT:2WD; 1991-09-01~1997-03-01 |
24830-85500-000 |
— | ||
|
10
|
10
24751-85500-000 HARNESS,SOLENOID WIREC:3AT:2WD; 1991-09-01~1997-03-01 |
24751-85500-000 |
US $161.60 |
||
|
11
|
11
24742-82300-000 PLATE,SOLENOID WIRE HARN HOLDC:3AT:2WD; 1991-09-01~1997-03-01 |
24742-82300-000 |
US $2.13 |
||
|
12
|
12
01570-06163-000
Bolt
C:3AT:2WD; 1991-09-01~1997-03-01 |
01570-06163-000 |
— | ||
| replacements | |||||
|
12
|
12
01570-0616B-000 BoltC:3AT:2WD; 1991-09-01~1997-03-01 |
01570-0616B-000 |
from US $0.80 |
||
|
12
|
12
01570-0616A-000 BoltC:3AT:2WD; 1991-09-01~1997-03-01 |
01570-0616A-000 |
from US $0.80 |
||
