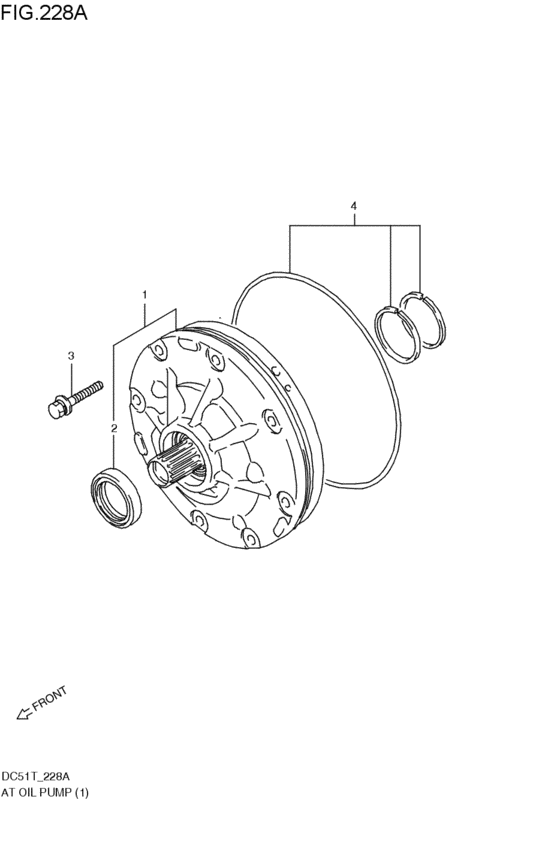

at - oil pump (C:3AT; 1991-09-01~1997-03-01) Diagram Suzuki CARRY/EVERY
- Year
- 1993
- Sales region
- Japan
- supercharge
- CARB
- drive
- 2WD
- transmission
- AT
- grade
- NSB
- number of the gears
- 3AT
- type
- TYPE2
- body
- K
- valve
- 4V
- air-conditioner
- AIRCON-N
- アングル
- NANGL
- 農繁
- NNOUHAN
- 郵政
- NYUSEI
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22800-52F00-000
ポンプアッシ,オイル
C:3AT; 1991-09-01~1993-12-01 |
22800-52F00-000 |
— | ||
|
1
|
1
22800-83C00-000
ポンプアッシ,オイル
C:3AT; 1993-12-01~1997-03-01 |
22800-83C00-000 |
— | ||
| replacement | |||||
|
1
|
1
22800-78A12-000 PUMP ASSY,OILC:3AT; 1993-12-01~1997-03-01 |
22800-78A12-000 |
US $651.20 |
||
|
2
|
2
22881-72B20-000 SEAL,OIL PUMP BODY OILC:3AT; 1993-12-01~1997-03-01 |
22881-72B20-000 |
from US $12.76 |
||
|
2
|
2
22881-78230-000 SEAL,OIL PUMP OILC:3AT; 1991-09-01~1993-12-01 |
22881-78230-000 |
US $18.36 |
||
|
3
|
3
22883-55A00-000 BoltC:3AT; 1991-09-01~1997-03-01 |
22883-55A00-000 |
US $2.02 |
||
|
4
|
4
22860-62DT0-000 SEAL RING SET,OIL PUMPC:3AT; 1991-09-01~1997-03-01 |
22860-62DT0-000 |
US $39.20 |
||
