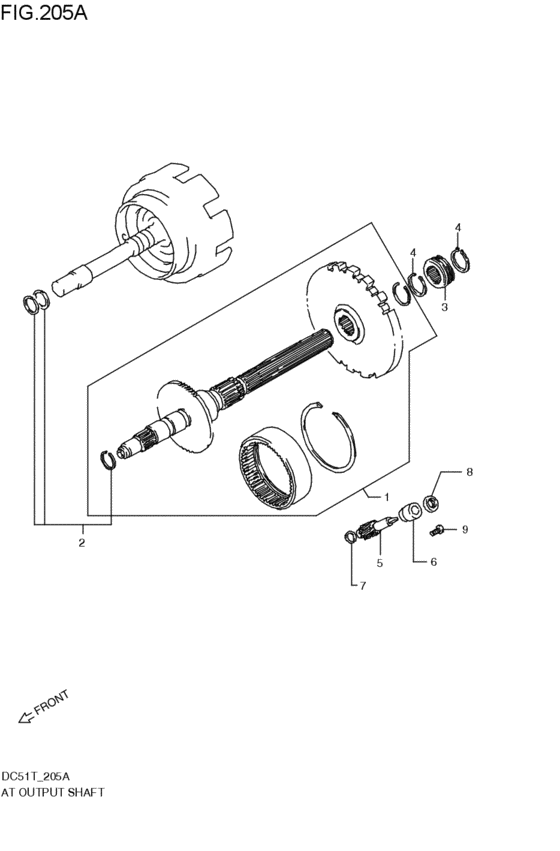

at - output shaft (C:3AT; 1991-09-01~1997-03-01) Diagram Suzuki CARRY/EVERY
- Year
- 1993
- Sales region
- Japan
- supercharge
- CARB
- drive
- 2WD
- transmission
- AT
- grade
- NSB
- number of the gears
- 3AT
- type
- TYPE2
- body
- K
- valve
- 4V
- air-conditioner
- AIRCON-N
- アングル
- NANGL
- 農繁
- NNOUHAN
- 郵政
- NYUSEI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24120-52FT0-000
シャフトセット,アウトプツト
C:3AT; 1993-12-01~1997-03-01 |
24120-52FT0-000 |
— | ||
|
1
|
1
24120-855T0-000
シャフトセット,アウトプツト
C:3AT; 1991-09-01~1993-12-01 |
24120-855T0-000 |
— | ||
|
2
|
2
24122-55AT0-000
シールリングセット,シャフト
C:3AT; 1991-09-01~1993-12-01 |
24122-55AT0-000 |
— | ||
|
2
|
2
24122-72BT0-000 SEAL RING SET,SHAFTC:3AT; 1993-12-01~1997-03-01 |
24122-72BT0-000 |
US $20.80 |
||
|
3
|
3
26121-78D00-000
GEAR,SPDOM DRIVE
C:3AT; 1991-09-01~1997-03-01 |
26121-78D00-000 |
— | ||
|
4
|
4
09380-19004-000 RING,SNAPC:3AT; 1991-09-01~1997-03-01 |
09380-19004-000 |
from US $1.64 |
||
|
5
|
5
26131-78D00-000
Gear,speedometer driven
C:3AT; 1991-09-01~1997-03-01 |
26131-78D00-000 |
— | ||
|
6
|
6
09300-08017-000 BUSH(8X16X18)C:3AT; 1991-09-01~1997-03-01 |
09300-08017-000 |
US $25.80 |
||
|
7
|
7
09160-08003-000 WASHER(8X13.7X1)Washer (8x13.7x1) C:3AT:(TYPE1,TYPE2); 1991-09-01~1993-10-01 |
09160-08003-000 |
from US $1.60 |
||
|
8
|
8
09282-08001-000 SEAL,OIL(8X16X5)C:3AT; 1991-09-01~1997-03-01 |
09282-08001-000 |
US $2.31 |
||
|
9
|
9
01550-06163-000
Bolt
C:3AT; 1991-09-01~1997-03-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0616B-000 BOLTC:3AT; 1991-09-01~1997-03-01 |
01550-0616B-000 |
from US $0.76 |
||
|
9
|
9
01550-0616A-000 BOLTC:3AT; 1991-09-01~1997-03-01 |
01550-0616A-000 |
from US $0.76 |
||
