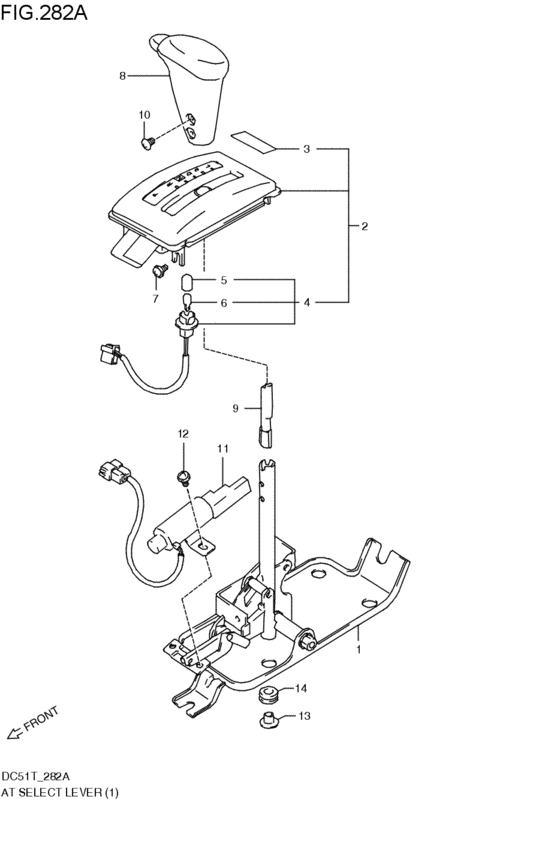

select lever (C:AT; 1991-09-01~1997-03-01) Diagram Suzuki CARRY/EVERY
- Year
- 1993
- Sales region
- Japan
- supercharge
- CARB
- drive
- 2WD
- transmission
- AT
- grade
- NSB
- number of the gears
- 3AT
- type
- TYPE2
- body
- K
- valve
- 4V
- air-conditioner
- AIRCON-N
- アングル
- NANGL
- 農繁
- NNOUHAN
- 郵政
- NYUSEI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28110-52F00-000
レバーアッシ,セレクト
C:AT:(TYPE1,TYPE2); 1991-09-01~1993-10-01 |
28110-52F00-000 |
— | ||
| replacements | |||||
|
1
|
1
28160-62B10-000
KNOB ASSY,SEL LEVER
C:AT:(TYPE1,TYPE2); 1991-09-01~1993-10-01 |
28160-62B10-000 |
— | ||
|
1
|
1
28160-62B11-000 KNOB ASSY,SEL LEVERC:AT:(TYPE1,TYPE2); 1991-09-01~1993-10-01 |
28160-62B11-000 |
US $30.91 |
||
|
2
|
2
28150-52F00-000
インジケータアッシ,セレクト
C:AT:(TYPE1,TYPE2,TYPE3); 1991-09-01~1995-04-01 |
28150-52F00-000 |
— | ||
|
3
|
3
28156-61A40-000 EMBLEM,SHIFT LOCKC:AT; 1991-09-01~1997-03-01 |
28156-61A40-000 |
US $2.83 |
||
|
4
|
4
28159-51F00-000
ランプアッシ,セレクタレバーイルミネーション
C:AT; 1991-09-01~1997-03-01 |
28159-51F00-000 |
— | ||
|
5
|
5
28182-51F00-000
Filter
C:AT; 1991-09-01~1997-03-01 |
28182-51F00-000 |
— | ||
| replacement | |||||
|
5
|
5
28180-51F00-000
LAMP ASSY
C:AT; 1991-09-01~1997-03-01 |
28180-51F00-000 |
— | ||
|
6
|
6
09471-12077-000 BULB(12V1.7W,T10,WB121)STANLEY,WB121; C:AT; 1991-09-01~1997-03-01 |
09471-12077-000 |
from US $1.52 |
||
|
7
|
7
02142-05103-000
Screw 5x10
C:AT; 1991-09-01~1997-03-01 |
02142-05103-000 |
— | ||
| replacement | |||||
|
7
|
7
02142-0510B-000 SCREWBolt C:AT; 1991-09-01~1997-03-01 |
02142-0510B-000 |
from US $0.76 |
||
|
8
|
8
28160-62B50-5ES
ノブアッシ,セレクタレバー(ブラック)
ブラック; C:AT:(TYPE1,TYPE2); 1991-09-01~1993-10-01 |
28160-62B50-5ES |
— | ||
| replacements | |||||
|
8
|
8
28160-62B50-000
KNOB ASSY,SEL LEVER
ブラック; C:AT:(TYPE1,TYPE2); 1991-09-01~1993-10-01 |
28160-62B50-000 |
— | ||
|
8
|
8
28160-62B51-000
KNOB ASSY,SEL LEVER
ブラック; C:AT:(TYPE1,TYPE2); 1991-09-01~1993-10-01 |
28160-62B51-000 |
— | ||
|
9
|
9
28164-62B50-000 GUIDE,DETENT RELEASE RODC:AT:(TYPE1,TYPE2); 1991-09-01~1993-10-01 |
28164-62B50-000 |
US $6.18 |
||
|
10
|
10
09125-05117-000 SCREW(5X6)Screw (5x6) C:AT; 1991-09-01~1997-03-01 |
09125-05117-000 |
from US $0.96 |
||
|
11
|
11
38890-52F00-000
ソレノイド,シフトロック
C:AT; 1991-09-01~1997-03-01 |
38890-52F00-000 |
— | ||
|
12
|
12
09138-05005-000 SCREW(5X10)C:AT; 1991-09-01~1997-03-01 |
09138-05005-000 |
US $12.90 |
||
|
13
|
13
09169-06048-000 WASHERC:AT; 1991-09-01~1997-03-01 |
09169-06048-000 |
US $0.96 |
||
|
14
|
14
09320-08041-000 CUSHIONC:AT; 1991-09-01~1997-03-01 |
09320-08041-000 |
US $1.76 |
||
