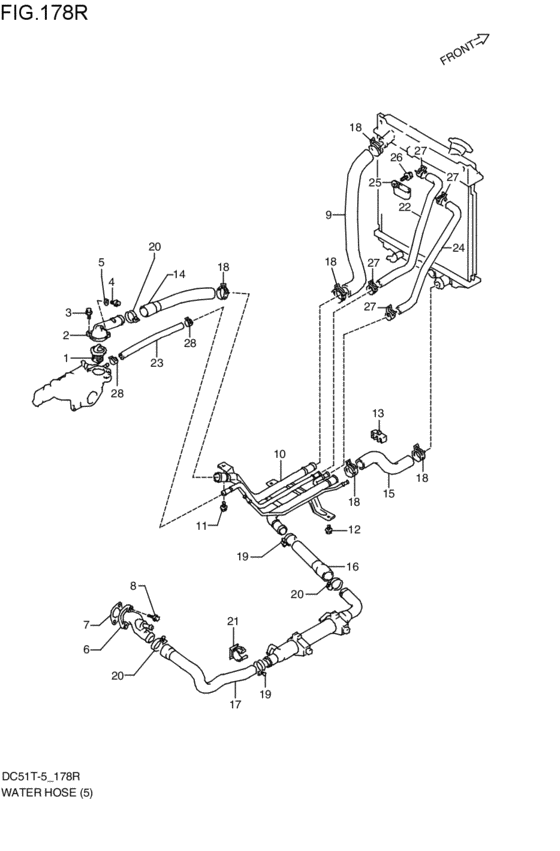

water hose (C:4V:AT; 1997-04-01~1998-11-01) Diagram Suzuki CARRY/EVERY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- 4V
- supercharge
- CARB
- drive
- 2WD
- transmission
- AT
- grade
- KC
- number of the gears
- 3AT
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17670-50G00-000 THERMOSTAT,WATER 82 DEGTheermostat (82яc) C:4V:AT; 1997-04-01~1998-11-01 |
17670-50G00-000 |
from US $22.39 |
||
|
2
|
2
17561-53F10-000
CAP,WATER THERMOSTAT
C:4V:AT; 1997-04-01~1998-11-01 |
17561-53F10-000 |
— | ||
|
3
|
3
01550-06253-000
Bolt (6x25)
C:4V:AT; 1997-04-01~1998-11-01 |
01550-06253-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0625B-000 BoltBolt, head cover C:4V:AT; 1997-04-01~1998-11-01 |
01550-0625B-000 |
from US $0.91 |
||
|
3
|
3
01550-0625A-000 BoltBolt C:4V:AT; 1997-04-01~1998-11-01 |
01550-0625A-000 |
from US $0.96 |
||
|
4
|
4
17568-50F00-000 UNION BOLT,AIR VENTBolt, thermostat cover C:4V:AT; 1997-04-01~1998-11-01 |
17568-50F00-000 |
from US $2.08 |
||
|
5
|
5
09168-06026-000 GASKET(6.4X11.5X0.8)C:4V:AT; 1997-04-01~1998-11-01 |
09168-06026-000 |
from US $0.91 |
||
|
6
|
6
17550-85X50-000
PIPE,WATER INLET
C:4V:AT; 1997-04-01~1998-11-01 |
17550-85X50-000 |
— | ||
|
7
|
7
17559-73000-H17
ガスケット,ウォータ,インレット
C:4V:AT; 1997-04-01~1998-11-01 |
17559-73000-H17 |
— | ||
| replacement | |||||
|
7
|
7
17559-73010-000 GASKET,WATER INLET PIPEC:4V:AT; 1997-04-01~1998-11-01 |
17559-73010-000 |
from US $1.52 |
||
|
8
|
8
01550-06203-000
Bolt
C:4V:AT; 1997-04-01~1998-11-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
8
|
8
01550-0620B-000 BoltBolt, inspection cap C:4V:AT; 1997-04-01~1998-11-01 |
01550-0620B-000 |
from US $0.76 |
||
|
9
|
9
17846-50F10-000 HOSE,RADIATOR INLETC:4V:AT; 1997-04-01~1998-11-01 |
17846-50F10-000 |
US $61.60 |
||
|
10
|
10
17820-53F20-000
パイプ,ウォータフロア
C:4V:AT; 1997-04-01~1998-11-01 |
17820-53F20-000 |
— | ||
| replacement | |||||
|
10
|
10
17820-53F2V-000 PIPE,WATER FLOORC:4V:AT; 1997-04-01~1998-11-01 |
17820-53F2V-000 |
US $87.22 |
||
|
11
|
11
02162-06123-000
Bolt (6x12)
C:4V:AT; 1997-04-01~1998-11-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
02162-0612B-000 SCREWBolt C:4V:AT; 1997-04-01~1998-11-01 |
02162-0612B-000 |
from US $0.80 |
||
|
11
|
11
02162-0612A-000 SCREWBolt, bracket C:4V:AT; 1997-04-01~1998-11-01 |
02162-0612A-000 |
from US $0.79 |
||
|
12
|
12
01550-08123-000
Bolt
C:4V:AT; 1997-04-01~1998-11-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0812B-000 BoltPlug, drain C:4V:AT; 1997-04-01~1998-11-01 |
01550-0812B-000 |
from US $0.96 |
||
|
12
|
12
01550-0812A-000 BoltC:4V:AT; 1997-04-01~1998-11-01 |
01550-0812A-000 |
from US $0.91 |
||
|
13
|
13
17829-50F00-000 Clamp, CableC:4V:AT; 1997-04-01~1998-11-01 |
17829-50F00-000 |
US $2.32 |
||
|
14
|
14
17847-53F30-000 HOSEC:4V:AT; 1997-04-01~1998-11-01 |
17847-53F30-000 |
US $42.40 |
||
|
15
|
15
17856-50F10-000 HOSE,RADIATORC:4V:AT; 1997-04-01~1998-11-01 |
17856-50F10-000 |
US $11.25 |
||
|
16
|
16
17847-53F30-000 HOSEC:4V:AT; 1997-04-01~1998-11-01 |
17847-53F30-000 |
US $42.40 |
||
|
17
|
17
17857-53F50-000 HOSE,RADIATOR OUTLET ENGC:4V:AT; 1997-04-01~1998-11-01 |
17857-53F50-000 |
US $17.11 |
||
|
18
|
18
09402-32511-000 CLAMPC:4V:AT; 1997-04-01~1998-11-01 |
09402-32511-000 |
from US $3.98 |
||
|
19
|
19
09400-33311-000
Сlamp
C:4V:AT; 1997-04-01~1998-11-01 |
09400-33311-000 |
— | ||
| replacement | |||||
|
19
|
19
09400-33311-XC0 CLAMPC:4V:AT; 1997-04-01~1998-11-01 |
09400-33311-XC0 |
US $2.08 |
||
|
20
|
20
09400-36312-000 CLAMPC:4V:AT; 1997-04-01~1998-11-01 |
09400-36312-000 |
from US $1.67 |
||
|
21
|
21
09403-32301-000 HOLDERC:4V:AT; 1997-04-01~1998-11-01 |
09403-32301-000 |
from US $0.81 |
||
|
22
|
22
17873-50F10-000
HOSE,HEATER INLET
C:4V:AT; 1997-04-01~1998-11-01 |
17873-50F10-000 |
— | ||
|
23
|
23
17872-72070-000 HOSE,HEATERL:1000>440 C:4V:AT; 1997-04-01~1998-11-01 |
17872-72070-000 |
US $31.20 |
||
|
24
|
24
17875-50F10-000
HOSE,HEATER OUTLET
C:4V:AT; 1997-04-01~1998-11-01 |
17875-50F10-000 |
— | ||
|
25
|
25
09403-19406-000 CLAMPC:4V:AT; 1997-04-01~1998-11-01 |
09403-19406-000 |
US $32.40 |
||
|
26
|
26
02162-06123-000
Bolt (6x12)
C:4V:AT; 1997-04-01~1998-11-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
26
|
26
02162-0612B-000 SCREWBolt C:4V:AT; 1997-04-01~1998-11-01 |
02162-0612B-000 |
from US $0.80 |
||
|
26
|
26
02162-0612A-000 SCREWBolt, bracket C:4V:AT; 1997-04-01~1998-11-01 |
02162-0612A-000 |
from US $0.79 |
||
|
27
|
27
09401-18404-000 CLIPC:4V:AT; 1997-04-01~1998-11-01 |
09401-18404-000 |
from US $1.26 |
||
|
28
|
28
09401-18403-000 CLIPClip, heater hose C:4V:AT; 1997-04-01~1998-11-01 |
09401-18403-000 |
from US $1.53 |
||
