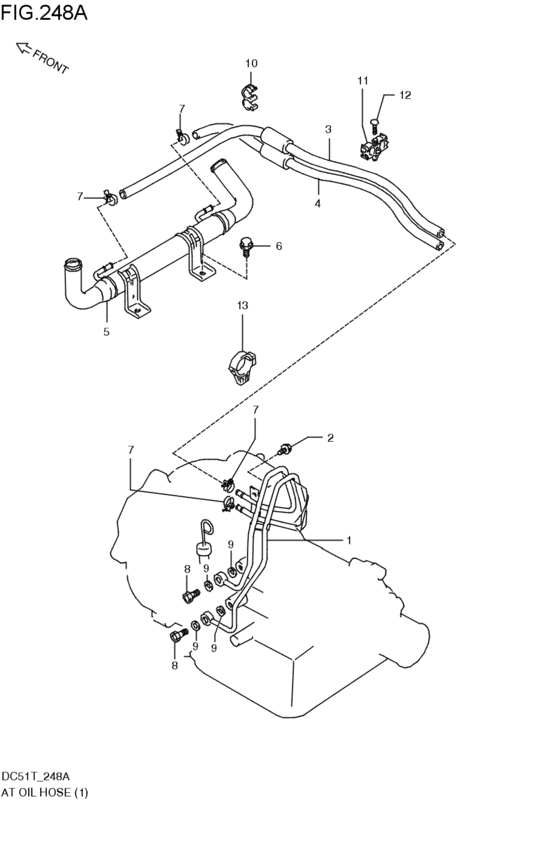

at - oil hose (C:3AT; 1991-09-01~1997-03-01) Diagram Suzuki CARRY/EVERY
- Year
- 1991 - 1992
- Sales region
- Japan
- supercharge
- CARB
- drive
- 2WD
- transmission
- AT
- grade
- NSB
- number of the gears
- 3AT
- type
- TYPE1
- body
- K
- valve
- 4V
- air-conditioner
- AIRCON-N
- アングル
- NANGL
- 農繁
- NNOUHAN
- 郵政
- NYUSEI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24891-52F00-000 PIPE,OILC:3AT; 1991-09-01~1997-03-01 |
24891-52F00-000 |
US $83.54 |
||
|
2
|
2
01550-06103-000
Bolt, front
C:3AT; 1991-09-01~1997-03-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0610B-000 BoltBolt C:3AT; 1991-09-01~1997-03-01 |
01550-0610B-000 |
from US $0.96 |
||
|
2
|
2
01550-0610A-000 BoltC:3AT; 1991-09-01~1997-03-01 |
01550-0610A-000 |
from US $0.96 |
||
|
3
|
3
24891-56X52-000 HOSE SETL:1000>750; C:3AT:(TYPE1,TYPE2,TYPE3); 1991-09-01~1995-04-01 |
24891-56X52-000 |
from US $26.96 |
||
|
4
|
4
24891-56X51-000 HOSE SETL:600>545; C:3AT; 1991-09-01~1997-03-01 |
24891-56X51-000 |
US $57.60 |
||
|
5
|
5
24921-52F00-000
クーラ,オイル
C:3AT:(TYPE1,TYPE2,TYPE3); 1991-09-01~1995-04-01 |
24921-52F00-000 |
— | ||
|
6
|
6
01550-08123-000
Bolt
C:3AT; 1991-09-01~1997-03-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0812B-000 BoltPlug, drain C:3AT; 1991-09-01~1997-03-01 |
01550-0812B-000 |
from US $0.96 |
||
|
6
|
6
01550-0812A-000 BoltC:3AT; 1991-09-01~1997-03-01 |
01550-0812A-000 |
from US $0.91 |
||
|
7
|
7
09400-15302-000
Clamp
C:3AT:(TYPE1,TYPE2,TYPE3); 1991-09-01~1995-04-01 |
09400-15302-000 |
— | ||
| replacement | |||||
|
7
|
7
09400-15311-000 CLAMPC:3AT:(TYPE1,TYPE2,TYPE3); 1991-09-01~1995-04-01 |
09400-15311-000 |
US $23.20 |
||
|
8
|
8
09360-10032-000
Bolt, union (10x24)
C:3AT; 1991-09-01~1997-03-01 |
09360-10032-000 |
— | ||
| replacement | |||||
|
8
|
8
09360-10055-000 UNIONBolt, oil pipe union C:3AT; 1991-09-01~1997-03-01 |
09360-10055-000 |
from US $2.45 |
||
|
9
|
9
09168-10028-000 GASKET(10X15X1)C:3AT; 1991-09-01~1997-03-01 |
09168-10028-000 |
US $12.90 |
||
|
10
|
10
09408-00155-000 CLAMPC:3AT; 1991-09-01~1997-03-01 |
09408-00155-000 |
from US $3.33 |
||
|
11
|
11
09403-14309-000 CLAMPC:3AT; 1991-09-01~1997-03-01 |
09403-14309-000 |
US $4.32 |
||
|
12
|
12
03541-06163-000
スクリュ
C:3AT; 1991-09-01~1997-03-01 |
03541-06163-000 |
— | ||
| replacement | |||||
|
12
|
12
03541-0616A-000 SCREWC:3AT; 1991-09-01~1997-03-01 |
03541-0616A-000 |
from US $0.64 |
||
|
13
|
13
09403-38302-000
Сlamp
C:3AT; 1991-09-01~1997-03-01 |
09403-38302-000 |
— | ||
