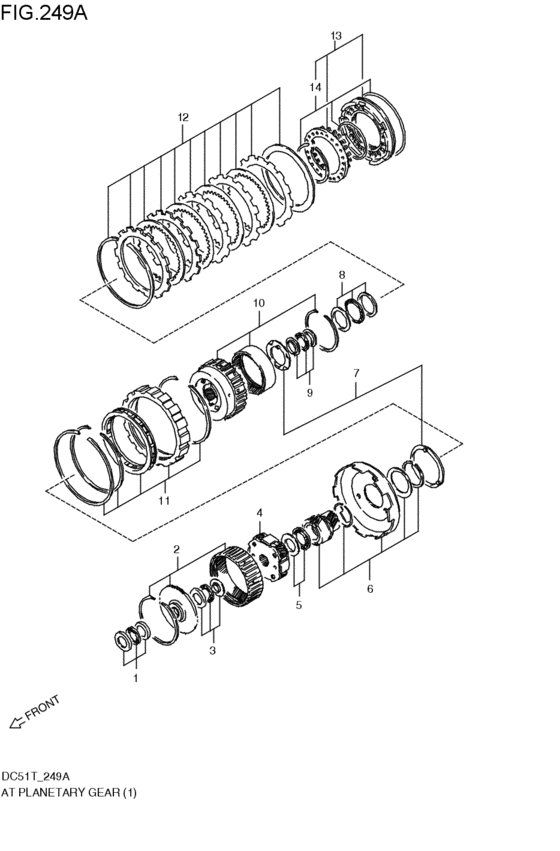

at - plastic material re-gear (C:3AT; 1991-09-01~1997-03-01) Diagram Suzuki CARRY/EVERY
- Year
- 1993
- Sales region
- Japan
- supercharge
- CARB
- drive
- 2WD
- transmission
- AT
- grade
- NSB
- number of the gears
- 3AT
- type
- TYPE2
- body
- K
- valve
- 4V
- air-conditioner
- AIRCON-N
- アングル
- NANGL
- 農繁
- NNOUHAN
- 郵政
- NYUSEI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24961-855T0-000 THRUST BEARING SET,NO.3C:3AT; 1991-09-01~1997-03-01 |
24961-855T0-000 |
US $31.83 |
||
|
2
|
2
24920-85500-000
ギヤアッシ,フロントプラネタリリング
C:3AT; 1991-09-01~1997-03-01 |
24920-85500-000 |
— | ||
| replacement | |||||
|
2
|
2
24920-85501-000 GEAR ASSY,FR PLNTY RINGC:3AT; 1991-09-01~1997-03-01 |
24920-85501-000 |
US $279.68 |
||
|
3
|
3
24962-855T0-000 THRUST BEARING SET,NO.4C:3AT; 1991-09-01~1997-03-01 |
24962-855T0-000 |
US $31.83 |
||
|
4
|
4
24910-85500-000 GEAR ASSY,FR PLNTYC:3AT; 1991-09-01~1997-03-01 |
24910-85500-000 |
US $340.40 |
||
|
5
|
5
24963-855T0-000 THRUST BEARING SET,NO.5C:3AT; 1991-09-01~1997-03-01 |
24963-855T0-000 |
US $26.50 |
||
|
6
|
6
24930-52F00-000
ギヤアッシ,プラネタリサン
C:3AT; 1991-09-01~1993-12-01 |
24930-52F00-000 |
— | ||
|
6
|
6
24930-83C00-000
ギヤアッシ,プラネタリサン
C:3AT; 1993-12-01~1997-03-01 |
24930-83C00-000 |
— | ||
| replacements | |||||
|
6
|
6
24153-78DT2-000 BEARING SET,THRUST NO.2C:3AT; 1993-12-01~1997-03-01 |
24153-78DT2-000 |
US $34.41 |
||
|
6
|
6
24930-83C02-000 GEAR ASSY,PLNTY SUNC:3AT; 1993-12-01~1997-03-01 |
24930-83C02-000 |
US $207.92 |
||
|
7
|
7
24941-855T0-000 THRUST WASHER SETC:3AT; 1991-09-01~1997-03-01 |
24941-855T0-000 |
US $19.69 |
||
|
8
|
8
24964-855T0-000 THRUST BEARING SET,NO.6C:3AT; 1991-09-01~1997-03-01 |
24964-855T0-000 |
US $35.33 |
||
|
9
|
9
24153-78DT0-000
スラストベアリングセット,NO.2
C:3AT; 1991-09-01~1997-03-01 |
24153-78DT0-000 |
— | ||
| replacement | |||||
|
9
|
9
24100-78811-000 CLUTCH ASSY,RRC:3AT; 1991-09-01~1997-03-01 |
24100-78811-000 |
US $85.01 |
||
|
10
|
10
24940-78D10-000 GEAR ASSY,RR PLNTYC:3AT; 1993-12-01~1997-03-01 |
24940-78D10-000 |
US $401.12 |
||
|
10
|
10
24940-85500-000
ギヤアッシ,リヤプラネタリ
C:3AT; 1991-09-01~1993-12-01 |
24940-85500-000 |
— | ||
|
11
|
11
26850-83CT0-000 CLUTCH SET,ONE WAYC:3AT; 1991-09-01~1997-03-01 |
26850-83CT0-000 |
US $344.08 |
||
|
12
|
12
26811-55AT0-000 PLATE SET 1ST&REVC:3AT; 1991-09-01~1993-12-01 |
26811-55AT0-000 |
US $327.52 |
||
|
12
|
12
26811-83CT0-000
PLATE SET,1ST&REV
C:3AT; 1993-12-01~1997-03-01 |
26811-83CT0-000 |
— | ||
|
13
|
13
26840-78DT0-000 PISTON SET,1ST&REVC:3AT; 1993-12-01~1997-03-01 |
26840-78DT0-000 |
US $98.99 |
||
|
13
|
13
26840-855T0-000
ピストンセット,ファースト/リバース
C:3AT; 1991-09-01~1993-12-01 |
26840-855T0-000 |
— | ||
|
14
|
14
26812-78DT0-000 O-RING SET,1ST&REVC:3AT; 1993-12-01~1997-03-01 |
26812-78DT0-000 |
US $18.33 |
||
|
14
|
14
26812-855T0-000
Oリングセット,ファースト/リバース
C:3AT; 1991-09-01~1993-12-01 |
26812-855T0-000 |
— | ||
