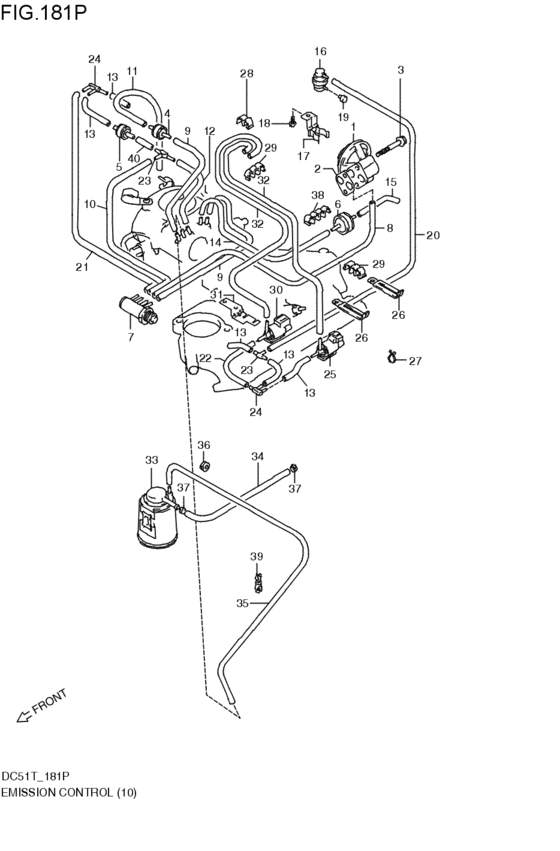

emission control (DC51T:ゴウキ 213260 カラ; C:2WD:AT; 1993-03-01~1997-03-01) Diagram Suzuki CARRY/EVERY
- Year
- 1993
- Sales region
- Japan
- supercharge
- CARB
- drive
- 2WD
- transmission
- AT
- grade
- NSB
- number of the gears
- 3AT
- type
- TYPE2
- body
- K
- valve
- 4V
- air-conditioner
- AIRCON-N
- アングル
- NANGL
- 農繁
- NNOUHAN
- 郵政
- NYUSEI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18111-50F01-000 VALVE,EGRC:2WD:AT; 1993-03-01~1997-03-01 |
18111-50F01-000 |
US $425.60 |
||
|
2
|
2
18529-60A00-000 GASKET,EGR VALVEC:2WD:AT; 1993-03-01~1997-03-01 |
18529-60A00-000 |
US $1.60 |
||
|
3
|
3
01570-06453-000
Bolt
C:2WD:AT; 1993-03-01~1997-03-01 |
01570-06453-000 |
— | ||
| replacement | |||||
|
3
|
3
01570-0645A-000 BoltC:2WD:AT; 1993-03-01~1997-03-01 |
01570-0645A-000 |
from US $4.13 |
||
|
4
|
4
18114-82150-000 VALVE,VACUUM TRANSMITTINGValve, vacuum transmitting C:2WD:AT; 1993-03-01~1997-03-01 |
18114-82150-000 |
from US $38.77 |
||
|
5
|
5
18115-83010-000
JET,50CC
C:2WD:AT; 1993-03-01~1997-03-01 |
18115-83010-000 |
— | ||
|
6
|
6
18480-74020-000
VALVE,VACUUM TRANSMITTING
C:2WD:AT; 1993-03-01~1997-03-01 |
18480-74020-000 |
— | ||
|
7
|
7
18124-53F00-000
VALVE,TVS
C:2WD:AT; 1993-03-01~1997-03-01 |
18124-53F00-000 |
— | ||
|
8
|
8
09355-35754-600
ホース,3.5X7.5X600
L:600>500; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
8
|
8
09355-35754-601
HOSE(3.5X7.5X601)
L:600>500; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35754-601 |
— | ||
|
8
|
8
09355-35006-601 Hose(3.5X7.5X601)L:600>500; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35006-601 |
from US $5.78 |
||
|
9
|
9
09355-35754-600
ホース,3.5X7.5X600
L:600>200; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
9
|
9
09355-35754-601
HOSE(3.5X7.5X601)
L:600>200; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35754-601 |
— | ||
|
9
|
9
09355-35006-601 Hose(3.5X7.5X601)L:600>200; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35006-601 |
from US $5.78 |
||
|
10
|
10
09355-35754-600
ホース,3.5X7.5X600
L:600>210; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
10
|
10
09355-35754-601
HOSE(3.5X7.5X601)
L:600>210; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35754-601 |
— | ||
|
10
|
10
09355-35006-601 Hose(3.5X7.5X601)L:600>210; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35006-601 |
from US $5.78 |
||
|
11
|
11
09355-35754-600
ホース,3.5X7.5X600
L:600>130; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
11
|
11
09355-35754-601
HOSE(3.5X7.5X601)
L:600>130; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35754-601 |
— | ||
|
11
|
11
09355-35006-601 Hose(3.5X7.5X601)L:600>130; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35006-601 |
from US $5.78 |
||
|
12
|
12
09355-35754-600
ホース,3.5X7.5X600
L:600>130; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
12
|
12
09355-35754-601
HOSE(3.5X7.5X601)
L:600>130; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35754-601 |
— | ||
|
12
|
12
09355-35006-601 Hose(3.5X7.5X601)L:600>130; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35006-601 |
from US $5.78 |
||
|
13
|
13
09355-35754-600
ホース,3.5X7.5X600
L:600>40; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
13
|
13
09355-35754-601
HOSE(3.5X7.5X601)
L:600>40; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35754-601 |
— | ||
|
13
|
13
09355-35006-601 Hose(3.5X7.5X601)L:600>40; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35006-601 |
from US $5.78 |
||
|
14
|
14
09355-35754-600
ホース,3.5X7.5X600
L:600>470; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
14
|
14
09355-35754-601
HOSE(3.5X7.5X601)
L:600>470; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35754-601 |
— | ||
|
14
|
14
09355-35006-601 Hose(3.5X7.5X601)L:600>470; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35006-601 |
from US $5.78 |
||
|
15
|
15
09355-35754-600
ホース,3.5X7.5X600
L:600>50; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
15
|
15
09355-35754-601
HOSE(3.5X7.5X601)
L:600>50; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35754-601 |
— | ||
|
15
|
15
09355-35006-601 Hose(3.5X7.5X601)L:600>50; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35006-601 |
from US $5.78 |
||
|
16
|
16
18570-84000-000
SWITCH,VACUUM
C:2WD:AT; 1993-03-01~1997-03-01 |
18570-84000-000 |
— | ||
|
17
|
17
18569-53F00-000
BRACKET,VACUUM SWITCH
C:2WD:AT; 1993-03-01~1997-03-01 |
18569-53F00-000 |
— | ||
|
18
|
18
02142-06083-000
Screw airspoile
C:2WD:AT; 1993-03-01~1997-03-01 |
02142-06083-000 |
— | ||
| replacement | |||||
|
18
|
18
02142-0608A-000 SCREWC:2WD:AT; 1993-03-01~1997-03-01 |
02142-0608A-000 |
from US $1.60 |
||
|
19
|
19
18133-80401-000 FILTERC:2WD:AT; 1993-03-01~1997-03-01 |
18133-80401-000 |
from US $4.56 |
||
|
20
|
20
09355-35754-600
ホース,3.5X7.5X600
L:600>410; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
20
|
20
09355-35754-601
HOSE(3.5X7.5X601)
L:600>410; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35754-601 |
— | ||
|
20
|
20
09355-35006-601 Hose(3.5X7.5X601)L:600>410; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35006-601 |
from US $5.78 |
||
|
21
|
21
09355-35754-600
ホース,3.5X7.5X600
L:600>310; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
21
|
21
09355-35754-601
HOSE(3.5X7.5X601)
L:600>310; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35754-601 |
— | ||
|
21
|
21
09355-35006-601 Hose(3.5X7.5X601)L:600>310; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35006-601 |
from US $5.78 |
||
|
22
|
22
09355-35754-600
ホース,3.5X7.5X600
L:600>60; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
22
|
22
09355-35754-601
HOSE(3.5X7.5X601)
L:600>60; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35754-601 |
— | ||
|
22
|
22
09355-35006-601 Hose(3.5X7.5X601)L:600>60; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35006-601 |
from US $5.78 |
||
|
23
|
23
09367-04002-000 CONNECTORC:2WD:AT; 1993-03-01~1997-03-01 |
09367-04002-000 |
US $4.80 |
||
|
24
|
24
09367-04009-000 JOINTJoint, 3 way C:2WD:AT; 1993-03-01~1997-03-01 |
09367-04009-000 |
from US $1.67 |
||
|
25
|
25
95160-70B00-000 VSV,IDLE UPC:2WD:AT; 1993-03-01~1997-03-01 |
95160-70B00-000 |
US $59.98 |
||
|
26
|
26
09404-06433-000
CLAMP(L:80)
C:2WD:AT; 1993-03-01~1997-03-01 |
09404-06433-000 |
— | ||
| replacements | |||||
|
26
|
26
09404-06434-000
CLAMP(L:80 T:1.0)
C:2WD:AT; 1993-03-01~1997-03-01 |
09404-06434-000 |
— | ||
|
26
|
26
09404-06436-000 Clamp(L:80)C:2WD:AT; 1993-03-01~1997-03-01 |
09404-06436-000 |
from US $2.13 |
||
|
26
|
26
09404-06036-000 Clamp(L:80)C:2WD:AT; 1993-03-01~1997-03-01 |
09404-06036-000 |
from US $1.82 |
||
|
27
|
27
09408-00008-000 CLIP(ID:20)Clamp, vacuum hose C:2WD:AT; 1993-03-01~1997-03-01 |
09408-00008-000 |
from US $3.37 |
||
|
28
|
28
09408-00033-000 CLAMPClamp C:2WD:AT; 1993-03-01~1997-03-01 |
09408-00033-000 |
from US $1.60 |
||
|
29
|
29
09408-00035-000 CLIPClamp C:2WD:AT; 1993-03-01~1997-03-01 |
09408-00035-000 |
US $17.70 |
||
|
30
|
30
18117-50F00-000
VSV,IDLE UP
C:2WD:AT; 1993-03-01~1997-03-01 |
18117-50F00-000 |
— | ||
|
31
|
31
18417-53F00-000
BRACKET,VSV
C:2WD:AT; 1993-03-01~1997-03-01 |
18417-53F00-000 |
— | ||
|
32
|
32
09355-35754-600
ホース,3.5X7.5X600
L:600>450; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
32
|
32
09355-35754-601
HOSE(3.5X7.5X601)
L:600>450; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35754-601 |
— | ||
|
32
|
32
09355-35006-601 Hose(3.5X7.5X601)L:600>450; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35006-601 |
from US $5.78 |
||
|
33
|
33
18560-85300-000
CANISTER
C:2WD:AT; 1993-03-01~1997-03-01 |
18560-85300-000 |
— | ||
|
34
|
34
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600>110; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-54115-600 |
from US $7.20 |
||
|
35
|
35
09355-35754-00B
HOSE(3.5X7.5X2000)
L:2000>640; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35754-00B |
— | ||
| replacement | |||||
|
35
|
35
09355-35006-00B Hose(3.5X7.5X2000)L:2000>640; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35006-00B |
US $28.80 |
||
|
36
|
36
09320-08013-000
CUSHION
C:2WD:AT; 1993-03-01~1997-03-01 |
09320-08013-000 |
— | ||
| replacement | |||||
|
36
|
36
09320-08509-000 Cushion(8X22X7)C:2WD:AT; 1993-03-01~1997-03-01 |
09320-08509-000 |
from US $1.98 |
||
|
37
|
37
09401-11413-000 CLIPC:2WD:AT; 1993-03-01~1997-03-01 |
09401-11413-000 |
from US $0.96 |
||
|
38
|
38
09408-00035-000 CLIPClamp C:2WD:AT; 1993-03-01~1997-03-01 |
09408-00035-000 |
US $17.70 |
||
|
39
|
39
09408-00067-000 CLIPC:2WD:AT; 1993-03-01~1997-03-01 |
09408-00067-000 |
US $11 |
||
|
40
|
40
09355-35754-600
ホース,3.5X7.5X600
L:600>30; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
40
|
40
09355-35754-601
HOSE(3.5X7.5X601)
L:600>30; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35754-601 |
— | ||
|
40
|
40
09355-35006-601 Hose(3.5X7.5X601)L:600>30; C:2WD:AT; 1993-03-01~1997-03-01 |
09355-35006-601 |
from US $5.78 |
||
