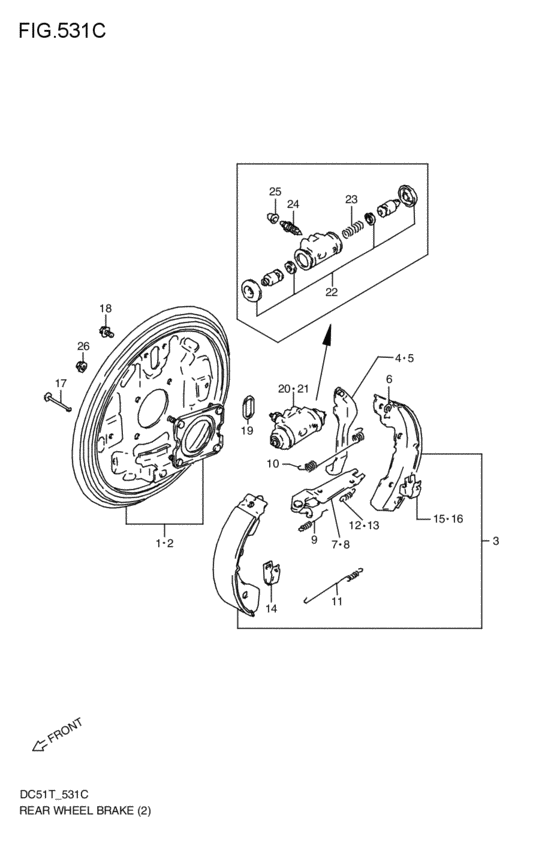

rear wheel brakes (C:AT:KC; 1991-09-01~1997-03-01) Diagram Suzuki CARRY/EVERY
- Year
- 1993
- Sales region
- Japan
- supercharge
- CARB
- drive
- 2WD
- transmission
- AT
- grade
- NSB
- number of the gears
- 3AT
- type
- TYPE2
- body
- K
- valve
- 4V
- air-conditioner
- AIRCON-N
- アングル
- NANGL
- 農繁
- NNOUHAN
- 郵政
- NYUSEI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53110-51F20-000
プレート,バッキング,ライト
C:AT:KC; 1991-09-01~1997-03-01 |
53110-51F20-000 |
— | ||
|
2
|
2
53160-51F20-000
プレート,バッキング,レフト
C:AT:KC; 1991-09-01~1997-03-01 |
53160-51F20-000 |
— | ||
|
3
|
3
53200-50801-000
Shoe set,rr brake
C:AT:KC; 1991-09-01~1997-03-01 |
53200-50801-000 |
— | ||
| replacement | |||||
|
3
|
3
53200-50802-000 SHOE SET,RR BRAKEC:AT:KC; 1991-09-01~1997-03-01 |
53200-50802-000 |
US $91.26 |
||
|
4
|
4
53750-50F01-000 LEVER,PARKING SHOE,RC:AT:KC; 1991-09-01~1997-03-01 |
53750-50F01-000 |
US $12 |
||
|
5
|
5
53760-50F01-000 LEVER,PARKING SHOE,LC:AT:KC; 1991-09-01~1997-03-01 |
53760-50F01-000 |
US $12 |
||
|
6
|
6
53753-82030-000 E-RING,PARKING LEVERRetainer, brake stopper C:AT:KC; 1991-09-01~1997-03-01 |
53753-82030-000 |
from US $0.99 |
||
|
7
|
7
53810-60A70-000 STRUT ASSY,BRAKE,RC:AT:KC; 1991-09-01~1997-03-01 |
53810-60A70-000 |
US $35.20 |
||
|
8
|
8
53820-60A70-000 STRUT ASSY,BRAKE,LC:AT:KC; 1991-09-01~1997-03-01 |
53820-60A70-000 |
US $35.20 |
||
|
9
|
9
53714-85010-000 SPRING,QUADRANTC:AT:KC; 1991-09-01~1997-03-01 |
53714-85010-000 |
from US $1.94 |
||
|
10
|
10
53331-60A70-000 SPRING,SHOE RETURN UPPER AC:AT:KC; 1991-09-01~1997-03-01 |
53331-60A70-000 |
from US $2.12 |
||
|
11
|
11
53232-85120-000 SPRING,SHOE RETURN LOWERC:AT:KC; 1991-09-01~1997-03-01 |
53232-85120-000 |
from US $2.28 |
||
|
12
|
12
54824-19B00-000 Spring,antirattSpring, antirattle lh C:AT:KC; 1991-09-01~1997-03-01 |
54824-19B00-000 |
US $4.36 |
||
| replacement | |||||
|
12
|
12
54824-56B00-000 SPRING,ANTIRATTLE,RC:AT:KC; 1991-09-01~1997-03-01 |
54824-56B00-000 |
from US $1.98 |
||
|
13
|
13
54524-19B00-000 Spring,antirattSpring, antirattle rh C:AT:KC; 1991-09-01~1997-03-01 |
54524-19B00-000 |
US $4.36 |
||
| replacement | |||||
|
13
|
13
54524-56B00-000 SPRING,ANTIRATTLE,LC:AT:KC; 1991-09-01~1997-03-01 |
54524-56B00-000 |
from US $1.98 |
||
|
14
|
14
53243-85010-000 SPRING,SHOE HOLD DOWNSpring, shoe hold down C:AT:KC; 1991-09-01~1997-03-01 |
53243-85010-000 |
from US $1.37 |
||
|
15
|
15
53243-85010-000 SPRING,SHOE HOLD DOWNSpring, shoe hold down C:AT:KC; 1993-10-01~1997-03-01 |
53243-85010-000 |
from US $1.37 |
||
|
15
|
15
53244-82031-000 SPRING,SHOE HOLD DOWN,RSpring, shoe hold down lh C:AT:KC; 1991-09-01~1993-10-01 |
53244-82031-000 |
from US $2.56 |
||
|
16
|
16
53243-85010-000 SPRING,SHOE HOLD DOWNSpring, shoe hold down C:AT:KC; 1993-10-01~1997-03-01 |
53243-85010-000 |
from US $1.37 |
||
|
16
|
16
53245-82031-000 SPRING,SHOE HOLD DOWN,LSpring, shoe hold down rh C:AT:KC; 1991-09-01~1993-10-01 |
53245-82031-000 |
from US $2.56 |
||
|
17
|
17
53241-82030-000 PIN,SHOE HOLD DOWNPin, shoe hold down C:AT:KC; 1991-09-01~1997-03-01 |
53241-82030-000 |
from US $1.46 |
||
|
18
|
18
01550-06103-000
Bolt, front
C:AT:KC; 1991-09-01~1997-03-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0610B-000 BoltBolt C:AT:KC; 1991-09-01~1997-03-01 |
01550-0610B-000 |
from US $0.80 |
||
|
18
|
18
01550-0610A-000 BOLTC:AT:KC; 1991-09-01~1997-03-01 |
01550-0610A-000 |
from US $0.80 |
||
|
19
|
19
53417-82030-000 GASKET,RR WHEEL CYLINDERGasket, rear wheel cylinder C:AT:KC; 1991-09-01~1997-03-01 |
53417-82030-000 |
from US $4.71 |
||
|
20
|
20
53401-51F00-000 CYLINDER ASSY,REAR WHL,RC:AT:KC; 1991-09-01~1997-03-01 |
53401-51F00-000 |
US $118.50 |
||
|
21
|
21
53402-51F00-000
CYLINDER ASSY,REAR WHL,L
C:AT:KC; 1991-09-01~1997-03-01 |
53402-51F00-000 |
— | ||
| replacement | |||||
|
21
|
21
53402-51F01-000
Cylinder Assy,rr Whl,l
C:AT:KC; 1991-09-01~1997-03-01 |
53402-51F01-000 |
— | ||
|
22
|
22
53400-85860-000 CUP SET,RR WHEEL CYLINDERC:AT:KC; 1991-09-01~1997-03-01 |
53400-85860-000 |
US $17.48 |
||
|
23
|
23
53432-85010-000 SPRING,WHEEL CYLINDERC:AT:KC; 1991-09-01~1997-03-01 |
53432-85010-000 |
US $2.24 |
||
|
24
|
24
55473-82030-000
Plug, bleeder
C:AT:KC; 1991-09-01~1997-03-01 |
55473-82030-000 |
— | ||
| replacement | |||||
|
24
|
24
55151-78451-000 PLUG,BLEEDERC:AT:KC; 1991-09-01~1997-03-01 |
55151-78451-000 |
from US $3.94 |
||
|
25
|
25
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug C:AT:KC; 1991-09-01~1997-03-01 |
55156-66310-000 |
from US $1.98 |
||
|
26
|
26
09159-08075-000 NUTC:AT:KC; 1991-09-01~1997-03-01 |
09159-08075-000 |
US $0.91 |
||
