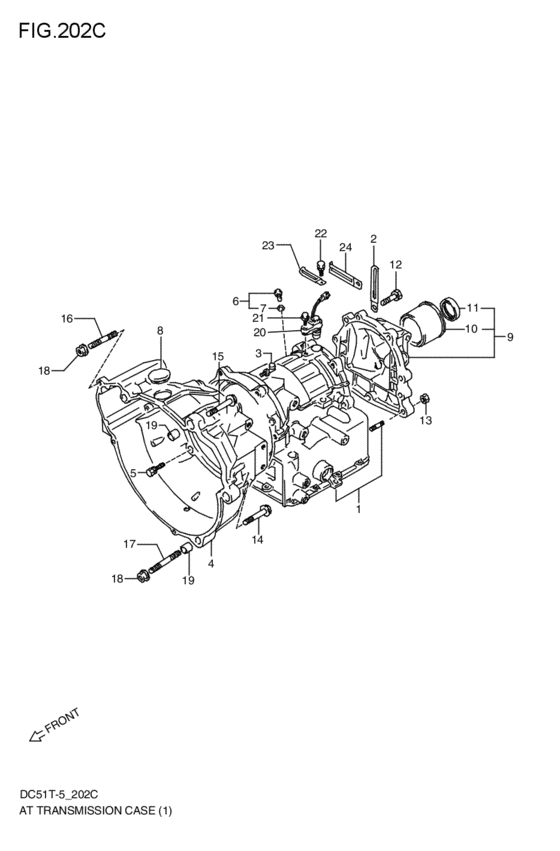

at - transmission case (C:AT; 1997-04-01~1998-11-01) Diagram Suzuki CARRY/EVERY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- 4V
- supercharge
- CARB
- drive
- 2WD
- transmission
- AT
- grade
- KC
- number of the gears
- 3AT
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24710-83CT0-000
ケースセット,トランスミッション
C:AT; 1997-04-01~1998-11-01 |
24710-83CT0-000 |
— | ||
|
2
|
2
09404-08207-000
CLAMP(L:80)
C:AT; 1997-04-01~1998-11-01 |
09404-08207-000 |
— | ||
| replacement | |||||
|
2
|
2
09404-08212-000 ClampC:AT; 1997-04-01~1998-11-01 |
09404-08212-000 |
from US $1.22 |
||
|
3
|
3
24717-83C00-000 PLUG,BREATHERC:AT; 1997-04-01~1998-11-01 |
24717-83C00-000 |
US $8.48 |
||
|
4
|
4
24721-78D00-000
ハウジング,トルクコンバータ
C:AT; 1997-04-01~1998-11-01 |
24721-78D00-000 |
— | ||
|
5
|
5
24883-85500-000 BOLT,HOUSINGC:AT; 1997-04-01~1998-11-01 |
24883-85500-000 |
US $2.50 |
||
|
6
|
6
24820-62B00-000 PLUG,BOOSTERC:AT; 1997-04-01~1998-11-01 |
24820-62B00-000 |
US $3.53 |
||
|
7
|
7
24755-78130-000 O-RINGC:AT; 1997-04-01~1998-11-01 |
24755-78130-000 |
US $0.92 |
||
|
8
|
8
09250-30003-000 CAP(OD:36)C:AT; 1997-04-01~1998-11-01 |
09250-30003-000 |
from US $2.08 |
||
|
9
|
9
24770-78DT0-000 HOUSING SET,EXTENSIONC:AT; 1997-04-01~1998-11-01 |
24770-78DT0-000 |
US $237.36 |
||
|
10
|
10
24773-83C00-000 COVER,DUSTC:AT; 1997-04-01~1998-11-01 |
24773-83C00-000 |
US $12.62 |
||
|
11
|
11
24780-85500-000 SEAL,EXTENSION CASE OILC:AT; 1997-04-01~1998-11-01 |
24780-85500-000 |
US $32 |
||
|
12
|
12
09117-08089-000 BOLT(8X35)C:AT; 1997-04-01~1998-11-01 |
09117-08089-000 |
US $19.50 |
||
|
13
|
13
08310-00083-000
Nut
C:AT; 1997-04-01~1998-11-01 |
08310-00083-000 |
— | ||
| replacements | |||||
|
13
|
13
08310-0008B-000 NUTC:AT; 1997-04-01~1998-11-01 |
08310-0008B-000 |
from US $0.80 |
||
|
13
|
13
08310-0008A-000 NUTNut, bead stopper C:AT; 1997-04-01~1998-11-01 |
08310-0008A-000 |
from US $0.76 |
||
|
14
|
14
01550-10503-000
Bolt
C:AT; 1997-04-01~1998-11-01 |
01550-10503-000 |
— | ||
| replacement | |||||
|
14
|
14
01550-1050B-000 BOLTC:AT; 1997-04-01~1998-11-01 |
01550-1050B-000 |
US $1.22 |
||
|
15
|
15
01550-10553-000
Bolt
C:AT; 1997-04-01~1998-11-01 |
01550-10553-000 |
— | ||
| replacement | |||||
|
15
|
15
01550-1055B-000 BoltC:AT; 1997-04-01~1998-11-01 |
01550-1055B-000 |
from US $1.44 |
||
|
16
|
16
01421-10353-000
Stud 10x1.25x55
C:AT; 1997-04-01~1998-11-01 |
01421-10353-000 |
— | ||
| replacements | |||||
|
16
|
16
01421-1035A-000 BOLT,STUDC:AT; 1997-04-01~1998-11-01 |
01421-1035A-000 |
from US $4.13 |
||
|
16
|
16
01421-1035B-000 BOLT,STUDC:AT; 1997-04-01~1998-11-01 |
01421-1035B-000 |
US $17.30 |
||
|
17
|
17
01421-10403-000
New Genuine Part
C:AT; 1997-04-01~1998-11-01 |
01421-10403-000 |
— | ||
| replacement | |||||
|
17
|
17
01421-1040A-000 BOLT,STUDC:AT; 1997-04-01~1998-11-01 |
01421-1040A-000 |
from US $1.52 |
||
|
18
|
18
08316-10103-000
Nut
C:AT; 1997-04-01~1998-11-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
18
|
18
08316-1010B-000 NUTC:AT; 1997-04-01~1998-11-01 |
08316-1010B-000 |
from US $0.80 |
||
|
19
|
19
04211-13149-000 PINC:AT; 1997-04-01~1998-11-01 |
04211-13149-000 |
from US $1.28 |
||
|
20
|
20
26141-62D01-000 SENSOR,SPEEDC:AT; 1997-04-01~1998-11-01 |
26141-62D01-000 |
US $320 |
||
|
21
|
21
26599-85500-000 BOLT,SOLENOIDC:AT; 1997-04-01~1998-11-01 |
26599-85500-000 |
US $1.77 |
||
|
22
|
22
26599-85500-000 BOLT,SOLENOIDC:AT; 1997-04-01~1998-11-01 |
26599-85500-000 |
US $1.77 |
||
|
23
|
23
09404-06432-000
CLAMP(L:65)
C:AT; 1997-04-01~1998-11-01 |
09404-06432-000 |
— | ||
| replacement | |||||
|
23
|
23
09404-06039-000 Clamp(L:65)C:AT; 1997-04-01~1998-11-01 |
09404-06039-000 |
from US $1.82 |
||
|
24
|
24
09404-08420-000 CLAMP(L:120 T:1.0)C:AT; 1997-04-01~1998-11-01 |
09404-08420-000 |
from US $2.08 |
||
