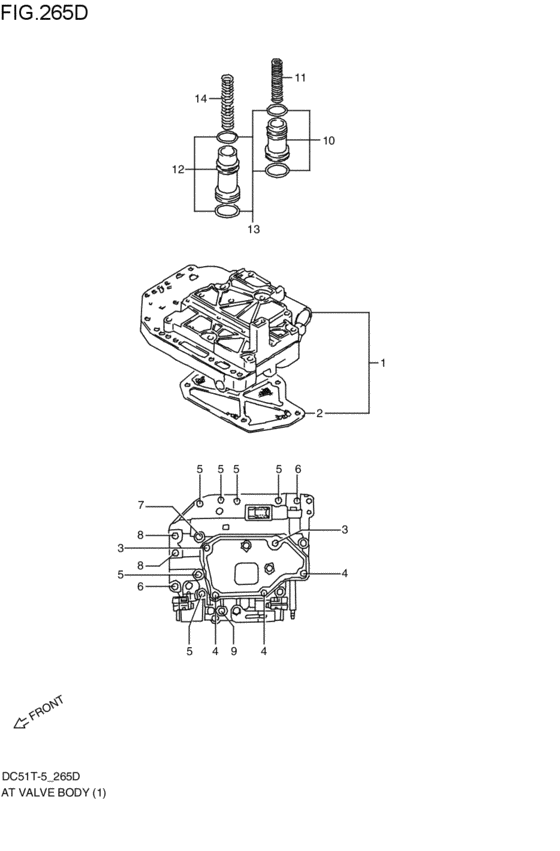

at - valve (C:AT; 1997-04-01~1998-11-01) Diagram Suzuki CARRY/EVERY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- 4V
- supercharge
- CARB
- drive
- 2WD
- transmission
- AT
- grade
- KC
- number of the gears
- 3AT
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26500-52F00-000
Body assy,t/m valve
C:AT; 1997-04-01~1998-11-01 |
26500-52F00-000 |
— | ||
| replacement | |||||
|
1
|
1
26500-78AH2-000
BODY ASSY,T/M VALVE
C:AT; 1997-04-01~1998-11-01 |
26500-78AH2-000 |
— | ||
|
2
|
2
26570-85500-000 STRAINER,T/M OILC:AT; 1997-04-01~1998-11-01 |
26570-85500-000 |
US $56 |
||
|
3
|
3
26596-85500-000 BOLT,VALVE BODY NO.5C:AT; 1997-04-01~1998-11-01 |
26596-85500-000 |
US $1.62 |
||
|
4
|
4
26597-85500-000 BOLT,VALVE BODY NO.6C:AT; 1997-04-01~1998-11-01 |
26597-85500-000 |
US $1.62 |
||
|
5
|
5
26588-85500-000 BOLT,VALVE BODY NO.1C:AT; 1997-04-01~1998-11-01 |
26588-85500-000 |
US $1.77 |
||
|
6
|
6
26586-85500-000 BOLT,VALVE BODY NO.2C:AT; 1997-04-01~1998-11-01 |
26586-85500-000 |
US $1.73 |
||
|
7
|
7
26587-85500-000 BOLT,VALVE BODY NO.3C:AT; 1997-04-01~1998-11-01 |
26587-85500-000 |
US $2.02 |
||
|
8
|
8
26589-85500-000 BOLT,VALVE BODY NO.4C:AT; 1997-04-01~1998-11-01 |
26589-85500-000 |
US $1.77 |
||
|
9
|
9
26598-85500-000 BOLT,VALVE BODY NO.6C:AT; 1997-04-01~1998-11-01 |
26598-85500-000 |
US $1.95 |
||
|
10
|
10
26531-83CT0-000 PISTON SET,C1 ACCC:AT; 1997-04-01~1998-11-01 |
26531-83CT0-000 |
US $47.10 |
||
|
11
|
11
26562-78D00-000
Spring, Accumulator forward piston
C:AT; 1997-04-01~1998-11-01 |
26562-78D00-000 |
— | ||
|
12
|
12
26532-855T0-000
Piston set, B1 accumulator
C:AT; 1997-04-01~1998-11-01 |
26532-855T0-000 |
— | ||
|
13
|
13
26533-72BT0-000 SEAL RING SET,ACCC:AT; 1997-04-01~1998-11-01 |
26533-72BT0-000 |
US $10.49 |
||
|
14
|
14
26561-78D00-000
SPRING,ACC 2ND BRAKE PISTON
C:AT; 1997-04-01~1998-11-01 |
26561-78D00-000 |
— | ||
