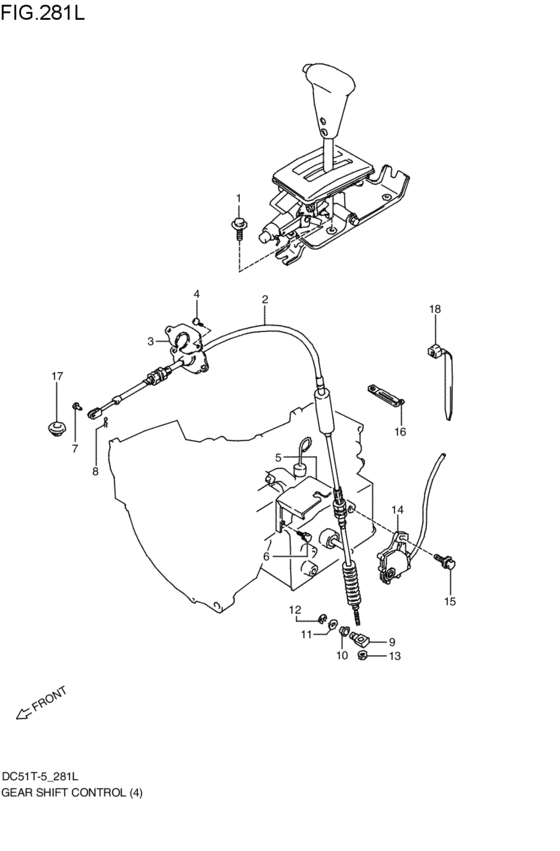

gearlever control (C:AT; 1997-04-01~1998-11-01) Diagram Suzuki CARRY/EVERY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- 4V
- supercharge
- CARB
- drive
- 2WD
- transmission
- AT
- grade
- KC
- number of the gears
- 3AT
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
09118-06008-000 BOLT(6X30)C:AT; 1997-04-01~1998-11-01 |
09118-06008-000 |
US $1.12 |
||
|
2
|
2
28210-52F00-000
ケーブルアッシ,セレクト
C:AT; 1997-04-01~1998-11-01 |
28210-52F00-000 |
— | ||
|
3
|
3
28395-85500-000
プレート,ギヤコントロールケーブルグロメット
C:AT; 1997-04-01~1998-11-01 |
28395-85500-000 |
— | ||
|
4
|
4
03141-06123-000
Screw 6x12
C:AT; 1997-04-01~1998-11-01 |
03141-06123-000 |
— | ||
| replacement | |||||
|
4
|
4
03141-0612A-000 SCREWC:AT; 1997-04-01~1998-11-01 |
03141-0612A-000 |
US $0.76 |
||
|
5
|
5
28221-85501-000
ブラケット,セレクトケーブル
C:AT; 1997-04-01~1998-11-01 |
28221-85501-000 |
— | ||
|
6
|
6
01570-08253-000
Bolt, upper
C:AT; 1997-04-01~1998-11-01 |
01570-08253-000 |
— | ||
| replacements | |||||
|
6
|
6
01570-0825B-000 BOLTC:AT; 1997-04-01~1998-11-01 |
01570-0825B-000 |
US $1.12 |
||
|
6
|
6
01570-0825A-000 BOLTC:AT; 1997-04-01~1998-11-01 |
01570-0825A-000 |
from US $1.06 |
||
|
7
|
7
09200-06056-000
ピン
C:AT; 1997-04-01~1998-11-01 |
09200-06056-000 |
— | ||
|
8
|
8
09385-08004-000 PIN,SNAPC:AT; 1997-04-01~1998-11-01 |
09385-08004-000 |
from US $1.28 |
||
|
9
|
9
28291-78233-000 JOINT,CABLEC:AT; 1997-04-01~1998-11-01 |
28291-78233-000 |
US $12.32 |
||
|
10
|
10
09305-08012-000 BUSHC:AT; 1997-04-01~1998-11-01 |
09305-08012-000 |
US $1.28 |
||
|
11
|
11
08322-01083-000
WASHER
C:AT; 1997-04-01~1998-11-01 |
08322-01083-000 |
— | ||
| replacements | |||||
|
11
|
11
08322-0108B-000 WASHERC:AT; 1997-04-01~1998-11-01 |
08322-0108B-000 |
from US $0.80 |
||
|
11
|
11
08322-0108A-000 WASHERC:AT; 1997-04-01~1998-11-01 |
08322-0108A-000 |
from US $0.80 |
||
|
12
|
12
08332-11063-000
E ring
C:AT; 1997-04-01~1998-11-01 |
08332-11063-000 |
— | ||
| replacements | |||||
|
12
|
12
08332-1106B-000 E RINGCirclip C:AT; 1997-04-01~1998-11-01 |
08332-1106B-000 |
from US $0.90 |
||
|
12
|
12
08332-1106A-000 E RINGE ring, pinion C:AT; 1997-04-01~1998-11-01 |
08332-1106A-000 |
from US $0.77 |
||
|
13
|
13
08310-00063-000
Nut
C:AT; 1997-04-01~1998-11-01 |
08310-00063-000 |
— | ||
| replacements | |||||
|
13
|
13
08310-0006B-000 NUTNut gear shift link rod C:AT; 1997-04-01~1998-11-01 |
08310-0006B-000 |
from US $0.76 |
||
|
13
|
13
08310-0006A-000 NUTC:AT; 1997-04-01~1998-11-01 |
08310-0006A-000 |
from US $0.76 |
||
|
14
|
14
37720-60C00-000
SWITCH ASSY,SHIFT
C:AT; 1997-04-01~1998-11-01 |
37720-60C00-000 |
— | ||
|
15
|
15
25948-83C00-000
Bolt,shift sw
C:AT; 1997-04-01~1998-11-01 |
25948-83C00-000 |
— | ||
|
16
|
16
09404-06434-000
CLAMP(L:80 T:1.0)
C:AT; 1997-04-01~1998-11-01 |
09404-06434-000 |
— | ||
| replacement | |||||
|
16
|
16
09404-06036-000 Clamp(L:80)C:AT; 1997-04-01~1998-11-01 |
09404-06036-000 |
from US $1.82 |
||
|
17
|
17
09250-20009-000
CAP(OD:30)
C:AT; 1997-04-01~1998-11-01 |
09250-20009-000 |
— | ||
| replacement | |||||
|
17
|
17
09250-20034-000 Cap(Od:30)C:AT; 1997-04-01~1998-11-01 |
09250-20034-000 |
US $11.40 |
||
|
18
|
18
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap C:AT; 1997-04-01~1998-11-01 |
09407-14403-000 |
from US $2.08 |
||
