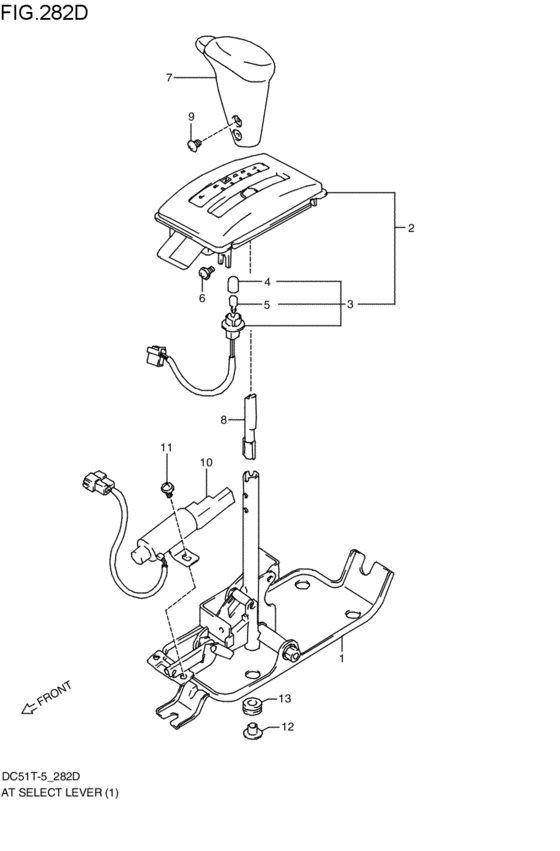

select lever (C:AT; 1997-04-01~1998-11-01) Diagram Suzuki CARRY/EVERY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- 4V
- supercharge
- CARB
- drive
- 2WD
- transmission
- AT
- grade
- KC
- number of the gears
- 3AT
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28110-52F31-000
レバーアッシ,セレクト
C:AT; 1997-04-01~1998-11-01 |
28110-52F31-000 |
— | ||
|
2
|
2
28150-52F20-000
インジケータアッシ,セレクト
C:AT; 1997-04-01~1998-11-01 |
28150-52F20-000 |
— | ||
|
3
|
3
28180-51F00-000
LAMP ASSY
C:AT; 1997-04-01~1998-11-01 |
28180-51F00-000 |
— | ||
|
4
|
4
28182-51F00-000
Filter
C:AT; 1997-04-01~1998-11-01 |
28182-51F00-000 |
— | ||
| replacement | |||||
|
4
|
4
28180-51F00-000
LAMP ASSY
C:AT; 1997-04-01~1998-11-01 |
28180-51F00-000 |
— | ||
|
5
|
5
09471-12077-000 BULB(12V1.7W,T10,WB121)STANLEY,WB121; C:AT; 1997-04-01~1998-11-01 |
09471-12077-000 |
from US $1.52 |
||
|
6
|
6
02142-05103-000
Screw 5x10
C:AT; 1997-04-01~1998-11-01 |
02142-05103-000 |
— | ||
| replacement | |||||
|
6
|
6
02142-0510B-000 SCREWBolt C:AT; 1997-04-01~1998-11-01 |
02142-0510B-000 |
from US $0.76 |
||
|
7
|
7
28160-62B10-5PK
ノブアッシ,セレクタレバー(ブラック)
ブラック; C:AT; 1997-04-01~1998-11-01 |
28160-62B10-5PK |
— | ||
| replacements | |||||
|
7
|
7
28160-62B10-000
KNOB ASSY,SEL LEVER
ブラック; C:AT; 1997-04-01~1998-11-01 |
28160-62B10-000 |
— | ||
|
7
|
7
28160-62B11-000 KNOB ASSY,SEL LEVERブラック; C:AT; 1997-04-01~1998-11-01 |
28160-62B11-000 |
US $30.91 |
||
|
8
|
8
28164-62B10-000 GUIDE,RELEASE RODC:AT; 1997-04-01~1998-11-01 |
28164-62B10-000 |
US $5.81 |
||
|
9
|
9
09125-05117-000 SCREW(5X6)Screw (5x6) C:AT; 1997-04-01~1998-11-01 |
09125-05117-000 |
from US $0.96 |
||
|
10
|
10
38890-52F00-000
ソレノイド,シフトロック
C:AT; 1997-04-01~1998-11-01 |
38890-52F00-000 |
— | ||
|
11
|
11
09138-05005-000 SCREW(5X10)C:AT; 1997-04-01~1998-11-01 |
09138-05005-000 |
US $12.90 |
||
|
12
|
12
09169-06048-000 WASHERC:AT; 1997-04-01~1998-11-01 |
09169-06048-000 |
US $0.96 |
||
|
13
|
13
09320-08041-000 CUSHIONC:AT; 1997-04-01~1998-11-01 |
09320-08041-000 |
US $1.76 |
||
