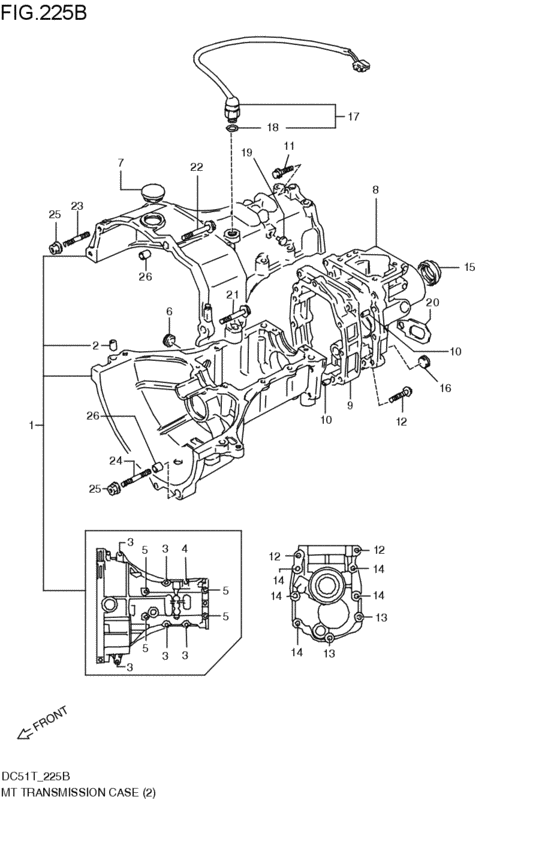

mt - transmission case (C:2WD:5MT; 1991-09-01~1997-03-01) Diagram Suzuki CARRY/EVERY
- Year
- 1995 - 2011
- Sales region
- Japan
- supercharge
- CARB
- drive
- 2WD
- transmission
- MT
- grade
- NSB
- number of the gears
- 5MT
- type
- TYPE4
- body
- K
- valve
- 4V
- air-conditioner
- AIRCON-N
- アングル
- NANGL
- 農繁
- NNOUHAN
- 郵政
- NYUSEI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-70D02-000
CASE ASSY,T/M
C:2WD:5MT; 1991-09-01~1997-03-01 |
24700-70D02-000 |
— | ||
|
2
|
2
04211-09169-000 PINC:2WD:5MT; 1991-09-01~1997-03-01 |
04211-09169-000 |
from US $0.91 |
||
|
3
|
3
01550-08403-000
Bolt
C:2WD:5MT; 1991-09-01~1997-03-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0840B-000 BoltC:2WD:5MT; 1991-09-01~1997-03-01 |
01550-0840B-000 |
from US $1.12 |
||
|
3
|
3
01550-0840A-000 BOLTC:2WD:5MT; 1991-09-01~1997-03-01 |
01550-0840A-000 |
from US $1.12 |
||
|
4
|
4
01550-08603-000
Bolt, crankcase
C:2WD:5MT; 1991-09-01~1997-03-01 |
01550-08603-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0860B-000 BoltBolt, sec case C:2WD:5MT; 1991-09-01~1997-03-01 |
01550-0860B-000 |
from US $6.61 |
||
|
4
|
4
01550-0860A-000 BoltC:2WD:5MT; 1991-09-01~1997-03-01 |
01550-0860A-000 |
from US $5.68 |
||
|
5
|
5
01550-08953-000
Bolt
C:2WD:5MT; 1991-09-01~1997-03-01 |
01550-08953-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0895B-000 BoltBolt, crankcase (8x95) C:2WD:5MT; 1991-09-01~1997-03-01 |
01550-0895B-000 |
US $24.70 |
||
|
5
|
5
01550-0895A-000 BOLTC:2WD:5MT; 1991-09-01~1997-03-01 |
01550-0895A-000 |
from US $1.82 |
||
|
6
|
6
09246-16010-000
PLUG
C:2WD:5MT; 1991-09-01~1997-03-01 |
09246-16010-000 |
— | ||
| replacement | |||||
|
6
|
6
09246-16021-000 Plug,t/m Oil DrainC:2WD:5MT; 1991-09-01~1997-03-01 |
09246-16021-000 |
US $4.86 |
||
|
7
|
7
09250-30003-000 CAP(OD:36)C:2WD:5MT; 1991-09-01~1997-03-01 |
09250-30003-000 |
from US $2.08 |
||
|
8
|
8
24770-85053-000
CASE,EXTENSION NO.1
C:2WD:5MT; 1991-09-01~1997-03-01 |
24770-85053-000 |
— | ||
|
9
|
9
24781-85050-000
Case,extension,no.2
C:2WD:5MT; 1991-09-01~1997-03-01 |
24781-85050-000 |
— | ||
|
10
|
10
04211-09169-000 PINC:2WD:5MT; 1991-09-01~1997-03-01 |
04211-09169-000 |
from US $0.91 |
||
|
11
|
11
01550-08303-000
Bolt
C:2WD:5MT; 1991-09-01~1997-03-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0830B-000 BoltC:2WD:5MT; 1991-09-01~1997-03-01 |
01550-0830B-000 |
from US $1.06 |
||
|
11
|
11
01550-0830A-000 BOLTBolt, mount oil seal cover C:2WD:5MT; 1991-09-01~1997-03-01 |
01550-0830A-000 |
from US $1.12 |
||
|
12
|
12
01550-08353-000
Bolt, rear
C:2WD:5MT; 1991-09-01~1997-03-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0835B-000 BOLTC:2WD:5MT; 1991-09-01~1997-03-01 |
01550-0835B-000 |
from US $1.12 |
||
|
12
|
12
01550-0835A-000 BOLTC:2WD:5MT; 1991-09-01~1997-03-01 |
01550-0835A-000 |
from US $1.06 |
||
|
13
|
13
01550-08653-000
Bolt
C:2WD:5MT; 1991-09-01~1997-03-01 |
01550-08653-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0865B-000 BoltC:2WD:5MT; 1991-09-01~1997-03-01 |
01550-0865B-000 |
from US $3.84 |
||
|
13
|
13
01550-0865A-000 BOLTBolt, oil pump (l) C:2WD:5MT; 1991-09-01~1997-03-01 |
01550-0865A-000 |
from US $1.44 |
||
|
14
|
14
01550-08703-000
Bolt
C:2WD:5MT:(TYPE3,TYPE4); 1993-10-01~1997-03-01 |
01550-08703-000 |
— | ||
| replacement | |||||
|
14
|
14
01550-0870B-000 BoltBolt, sec case C:2WD:5MT:(TYPE3,TYPE4); 1993-10-01~1997-03-01 |
01550-0870B-000 |
from US $3.62 |
||
|
15
|
15
24780-79001-000 OIL SEALC:2WD:5MT; 1991-09-01~1997-03-01 |
24780-79001-000 |
US $8.51 |
||
|
16
|
16
09246-16010-000
PLUG
マグネットツキ; C:2WD:5MT; 1991-09-01~1997-03-01 |
09246-16010-000 |
— | ||
| replacement | |||||
|
16
|
16
09246-16021-000 Plug,t/m Oil Drainマグネットツキ; C:2WD:5MT; 1991-09-01~1997-03-01 |
09246-16021-000 |
US $4.86 |
||
|
17
|
17
37610-80023-000 SWITCH ASSY,BACK UP LAMPC:2WD:5MT; 1991-09-01~1997-03-01 |
37610-80023-000 |
US $23.20 |
||
|
18
|
18
09280-11002-000 O RING(D:1.9,ID:11.4)C:2WD:5MT; 1991-09-01~1997-03-01 |
09280-11002-000 |
US $1.52 |
||
|
19
|
19
09250-08001-000 PLUG(OD:14)Cap, remote control shaft C:2WD:5MT; 1991-09-01~1997-03-01 |
09250-08001-000 |
US $1.28 |
||
|
20
|
20
11851-62B00-000 HOOKC:2WD:5MT; 1991-09-01~1992-10-01 |
11851-62B00-000 |
US $5.02 |
||
|
21
|
21
01550-10503-000
Bolt
C:2WD:5MT; 1991-09-01~1997-03-01 |
01550-10503-000 |
— | ||
| replacement | |||||
|
21
|
21
01550-1050B-000 BOLTC:2WD:5MT; 1991-09-01~1997-03-01 |
01550-1050B-000 |
US $1.22 |
||
|
22
|
22
01550-10553-000
Bolt
C:2WD:5MT; 1991-09-01~1997-03-01 |
01550-10553-000 |
— | ||
| replacement | |||||
|
22
|
22
01550-1055B-000 BoltC:2WD:5MT; 1991-09-01~1997-03-01 |
01550-1055B-000 |
from US $1.44 |
||
|
23
|
23
01421-10353-000
Stud 10x1.25x55
C:2WD:5MT; 1991-09-01~1997-03-01 |
01421-10353-000 |
— | ||
| replacements | |||||
|
23
|
23
01421-1035A-000 BOLT,STUDC:2WD:5MT; 1991-09-01~1997-03-01 |
01421-1035A-000 |
from US $4.13 |
||
|
23
|
23
01421-1035B-000 BOLT,STUDC:2WD:5MT; 1991-09-01~1997-03-01 |
01421-1035B-000 |
US $17.30 |
||
|
24
|
24
01421-10403-000
New Genuine Part
C:2WD:5MT; 1991-09-01~1997-03-01 |
01421-10403-000 |
— | ||
| replacement | |||||
|
24
|
24
01421-1040A-000 BOLT,STUDC:2WD:5MT; 1991-09-01~1997-03-01 |
01421-1040A-000 |
from US $1.52 |
||
|
25
|
25
08316-10103-000
Nut
C:2WD:5MT; 1991-09-01~1997-03-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
25
|
25
08316-1010B-000 NUTC:2WD:5MT; 1991-09-01~1997-03-01 |
08316-1010B-000 |
from US $0.80 |
||
|
26
|
26
04211-13149-000 PINC:2WD:5MT; 1991-09-01~1997-03-01 |
04211-13149-000 |
from US $1.28 |
||
