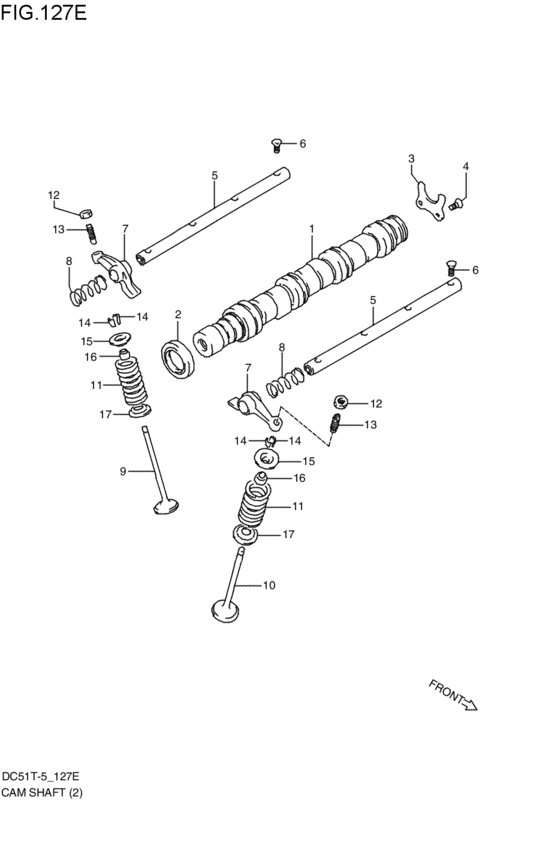

camshaft / valve (C:TURBO; 1997-04-01~1998-11-01) Diagram Suzuki CARRY/EVERY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- TURBO
- supercharge
- TEPI
- drive
- 2WD
- transmission
- MT
- grade
- KU
- number of the gears
- 5MT
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12710-53F50-000
カムシャフト
C:TURBO; 1997-04-01~1998-11-01 |
12710-53F50-000 |
— | ||
|
2
|
2
09283-32042-000 SEAL,OIL(32X47X6)C:TURBO; 1997-04-01~1998-11-01 |
09283-32042-000 |
from US $8.03 |
||
|
3
|
3
12749-73002-000 PLATE,CAMSHAFT THRUSTC:TURBO; 1997-04-01~1998-11-01 |
12749-73002-000 |
US $7.20 |
||
|
4
|
4
02122-06123-000
Screw
C:TURBO; 1997-04-01~1998-11-01 |
02122-06123-000 |
— | ||
| replacements | |||||
|
4
|
4
02122-0612B-000 SCREWC:TURBO; 1997-04-01~1998-11-01 |
02122-0612B-000 |
from US $0.80 |
||
|
4
|
4
02122-0612A-000 SCREWC:TURBO; 1997-04-01~1998-11-01 |
02122-0612A-000 |
from US $0.80 |
||
|
5
|
5
12860-78102-000 SHAFT,VALVE ROCKERC:TURBO; 1997-04-01~1998-11-01 |
12860-78102-000 |
US $42.32 |
||
|
6
|
6
02122-06163-000
Screw
C:TURBO; 1997-04-01~1998-11-01 |
02122-06163-000 |
— | ||
| replacements | |||||
|
6
|
6
02122-0616B-000 SCREWScrew, intake pipe C:TURBO; 1997-04-01~1998-11-01 |
02122-0616B-000 |
from US $0.80 |
||
|
6
|
6
02122-0616A-000 SCREWC:TURBO; 1997-04-01~1998-11-01 |
02122-0616A-000 |
from US $0.76 |
||
|
7
|
7
12841-77300-000 ARM,VALVE ROCKERC:TURBO; 1997-04-01~1998-11-01 |
12841-77300-000 |
US $26.50 |
||
|
8
|
8
12891-51G00-000 SPRING,ROCKER ARMSpring, rocket arm C:TURBO; 1997-04-01~1998-11-01 |
12891-51G00-000 |
US $1.60 |
||
|
9
|
9
12911-70B30-000 Valve,intakeC:TURBO; 1997-04-01~1998-11-01 |
12911-70B30-000 |
US $28.52 |
||
|
10
|
10
12915-70B00-000 Valve,exhaustC:TURBO; 1997-04-01~1998-11-01 |
12915-70B00-000 |
from US $46.67 |
||
|
11
|
11
12921-70B00-000
SPRING,VALVE
C:TURBO; 1997-04-01~1998-11-01 |
12921-70B00-000 |
— | ||
| replacement | |||||
|
11
|
11
12921-70B10-000 Spring,valveC:TURBO; 1997-04-01~1998-11-01 |
12921-70B10-000 |
US $6.92 |
||
|
12
|
12
09159-07002-000 NUTC:TURBO; 1997-04-01~1998-11-01 |
09159-07002-000 |
US $18 |
||
|
13
|
13
12848-73010-000 SCREWC:TURBO; 1997-04-01~1998-11-01 |
12848-73010-000 |
US $4.80 |
||
|
14
|
14
12932-24400-000 COTTER,VALVEC:TURBO; 1997-04-01~1998-11-01 |
12932-24400-000 |
from US $1.17 |
||
|
15
|
15
12931-60B00-000
リテーナ,バルブスプリング
C:TURBO; 1997-04-01~1998-11-01 |
12931-60B00-000 |
— | ||
| replacement | |||||
|
15
|
15
12931-60B10-000 RETAINER,VALVE SPRINGC:TURBO; 1997-04-01~1998-11-01 |
12931-60B10-000 |
US $3.04 |
||
|
16
|
16
09289-05012-000 SEAL,OIL(5.5X11.5X9.3)C:TURBO; 1997-04-01~1998-11-01 |
09289-05012-000 |
from US $3.94 |
||
|
17
|
17
12933-86510-000 SEAT,VALVE SPRINGC:TURBO; 1997-04-01~1998-11-01 |
12933-86510-000 |
from US $1.52 |
||
