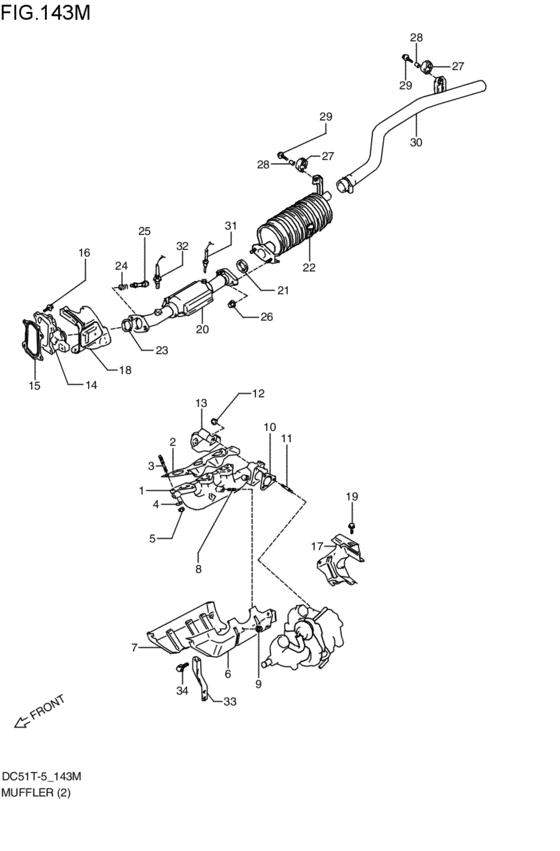

muffler (C:TURBO; 1997-04-01~1998-11-01) Diagram Suzuki CARRY/EVERY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- TURBO
- supercharge
- TEPI
- drive
- 2WD
- transmission
- MT
- grade
- KU
- number of the gears
- 5MT
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-53F50-000
マニホールド,エキゾースト
C:TURBO; 1997-04-01~1998-11-01 |
14111-53F50-000 |
— | ||
|
2
|
2
14141-67F02-000 GASKET,EXH MANFC:TURBO; 1997-04-01~1998-11-01 |
14141-67F02-000 |
from US $15.91 |
||
|
3
|
3
01411-08253-000
New Genuine Part
C:TURBO; 1997-04-01~1998-11-01 |
01411-08253-000 |
— | ||
| replacement | |||||
|
3
|
3
01411-0825A-000 BOLT,STUDC:TURBO; 1997-04-01~1998-11-01 |
01411-0825A-000 |
US $1.12 |
||
|
4
|
4
08322-01083-000
WASHER
C:TURBO; 1997-04-01~1998-11-01 |
08322-01083-000 |
— | ||
| replacements | |||||
|
4
|
4
08322-0108B-000 WASHERC:TURBO; 1997-04-01~1998-11-01 |
08322-0108B-000 |
from US $0.80 |
||
|
4
|
4
08322-0108A-000 WASHERC:TURBO; 1997-04-01~1998-11-01 |
08322-0108A-000 |
from US $0.80 |
||
|
5
|
5
08310-00083-000
Nut
C:TURBO; 1997-04-01~1998-11-01 |
08310-00083-000 |
— | ||
| replacements | |||||
|
5
|
5
08310-0008B-000 NUTC:TURBO; 1997-04-01~1998-11-01 |
08310-0008B-000 |
from US $0.80 |
||
|
5
|
5
08310-0008A-000 NUTNut, bead stopper C:TURBO; 1997-04-01~1998-11-01 |
08310-0008A-000 |
from US $0.76 |
||
|
6
|
6
14121-53F50-000
カバー,エキゾーストマニホールド,アッパ
C:TURBO; 1997-04-01~1998-11-01 |
14121-53F50-000 |
— | ||
|
7
|
7
14131-53F50-000
カバー,エキゾーストマニホールド,ロア
C:TURBO; 1997-04-01~1998-11-01 |
14131-53F50-000 |
— | ||
|
8
|
8
01411-06123-000
Bolt, stud
C:TURBO; 1997-04-01~1998-11-01 |
01411-06123-000 |
— | ||
| replacement | |||||
|
8
|
8
01411-0612A-000 BOLT,STUDC:TURBO; 1997-04-01~1998-11-01 |
01411-0612A-000 |
from US $0.67 |
||
|
9
|
9
08361-35063-000
Nut
C:TURBO; 1997-04-01~1998-11-01 |
08361-35063-000 |
— | ||
| replacement | |||||
|
9
|
9
08361-3506A-000 NUTC:TURBO; 1997-04-01~1998-11-01 |
08361-3506A-000 |
from US $0.77 |
||
|
10
|
10
14181-81050-000
ガスケット,エキゾースト,NO.1
C:TURBO; 1997-04-01~1998-11-01 |
14181-81050-000 |
— | ||
| replacement | |||||
|
10
|
10
14181-81051-000 GASKET,EXH FLANGEC:TURBO; 1997-04-01~1998-11-01 |
14181-81051-000 |
US $17.60 |
||
|
11
|
11
09108-08247-000 BOLT,STUDC:TURBO; 1997-04-01~1998-11-01 |
09108-08247-000 |
US $89.10 |
||
|
12
|
12
09159-08056-000 NUTC:TURBO; 1997-04-01~1998-11-01 |
09159-08056-000 |
US $1.28 |
||
|
13
|
13
14132-53F60-000
カバー,エキゾーストフランジ
C:TURBO; 1997-04-01~1998-11-01 |
14132-53F60-000 |
— | ||
|
14
|
14
14115-85550-000
パイプ,エキゾースト
C:TURBO; 1997-04-01~1998-11-01 |
14115-85550-000 |
— | ||
|
15
|
15
14182-85550-000
ガスケット,エキゾーストパイプ
C:TURBO; 1997-04-01~1998-11-01 |
14182-85550-000 |
— | ||
| replacement | |||||
|
15
|
15
14182-85551-000 GASKET,EXH PIPEGasket, t/c outlet pipe C:TURBO; 1997-04-01~1998-11-01 |
14182-85551-000 |
from US $5.31 |
||
|
16
|
16
09103-08117-000
ボルト,8X20
C:TURBO; 1997-04-01~1998-11-01 |
09103-08117-000 |
— | ||
|
17
|
17
14135-53F50-000
カバー,エキゾーストパイプ,レフト
C:TURBO; 1997-04-01~1998-11-01 |
14135-53F50-000 |
— | ||
|
18
|
18
14136-53F50-000
カバー,エキゾーストパイプ,ライト
C:TURBO; 1997-04-01~1998-11-01 |
14136-53F50-000 |
— | ||
|
19
|
19
09103-06168-000 BOLT(6X10)C:TURBO; 1997-04-01~1998-11-01 |
09103-06168-000 |
from US $1.01 |
||
|
20
|
20
14190-53FV0-000
パイプ,エキゾースト
C:TURBO; 1997-04-01~1998-11-01 |
14190-53FV0-000 |
— | ||
| replacement | |||||
|
20
|
20
14190-53FVV-000
パイプ,エキゾースト
C:TURBO; 1997-04-01~1998-11-01 |
14190-53FVV-000 |
— | ||
|
21
|
21
14182-60B00-000
GASKET,EXH PIPE
C:TURBO; 1997-04-01~1998-11-01 |
14182-60B00-000 |
— | ||
| replacement | |||||
|
21
|
21
14182-60B01-000 Gasket,exh PipeC:TURBO; 1997-04-01~1998-11-01 |
14182-60B01-000 |
from US $3.34 |
||
|
22
|
22
14300-53F50-000
マフラ
C:TURBO; 1997-04-01~1998-11-01 |
14300-53F50-000 |
— | ||
| replacement | |||||
|
22
|
22
14300-53F5V-000
マフラ
C:TURBO; 1997-04-01~1998-11-01 |
14300-53F5V-000 |
— | ||
|
23
|
23
14183-82050-000
リング,シール
C:TURBO; 1997-04-01~1998-11-01 |
14183-82050-000 |
— | ||
| replacement | |||||
|
23
|
23
14183-820V0-000 RING,SEAL EXH PIPEC:TURBO; 1997-04-01~1998-11-01 |
14183-820V0-000 |
US $35.20 |
||
|
24
|
24
14492-82001-000 SPRING,EXH PIPEC:TURBO; 1997-04-01~1998-11-01 |
14492-82001-000 |
US $16.80 |
||
|
25
|
25
09119-10039-000
Bolt
C:TURBO; 1997-04-01~1998-11-01 |
09119-10039-000 |
— | ||
| replacement | |||||
|
25
|
25
14493-76G01-000 BOLT,EXH PIPEC:TURBO; 1997-04-01~1998-11-01 |
14493-76G01-000 |
from US $3.04 |
||
|
26
|
26
09159-10060-000 NUTC:TURBO; 1997-04-01~1998-11-01 |
09159-10060-000 |
from US $1.28 |
||
|
27
|
27
14281-79010-000
Mounting, muffler
C:TURBO; 1997-04-01~1998-11-01 |
14281-79010-000 |
— | ||
| replacement | |||||
|
27
|
27
14281-60G11-000 MOUNTING,MUFFLER(HS60)C:TURBO; 1997-04-01~1998-11-01 |
14281-60G11-000 |
US $5.78 |
||
|
28
|
28
09180-08057-000
Spacer
C:TURBO; 1997-04-01~1998-11-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
28
|
28
09180-08227-000 SPACER(8.2X12.5X23.5)C:TURBO; 1997-04-01~1998-11-01 |
09180-08227-000 |
from US $1.92 |
||
|
29
|
29
01550-08353-000
Bolt, rear
C:TURBO; 1997-04-01~1998-11-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
29
|
29
01550-0835B-000 BOLTC:TURBO; 1997-04-01~1998-11-01 |
01550-0835B-000 |
from US $1.12 |
||
|
29
|
29
01550-0835A-000 BOLTC:TURBO; 1997-04-01~1998-11-01 |
01550-0835A-000 |
from US $1.06 |
||
|
30
|
30
14630-53F10-000
パイプ,マフラテール
C:TURBO; 1997-04-01~1998-11-01 |
14630-53F10-000 |
— | ||
| replacement | |||||
|
30
|
30
14630-53F1V-000
PIPE,MUFFLER TAIL
C:TURBO; 1997-04-01~1998-11-01 |
14630-53F1V-000 |
— | ||
|
31
|
31
14810-50F00-000
Fuse,thermo ctlst
C:TURBO; 1997-04-01~1997-11-01 |
14810-50F00-000 |
— | ||
| replacement | |||||
|
31
|
31
14810-50F0V-000 THERMO FUSE,CTLSTC:TURBO; 1997-04-01~1997-11-01 |
14810-50F0V-000 |
US $120.34 |
||
|
32
|
32
18213-50F00-000 SENSOR,OXYGENC:TURBO; 1997-04-01~1998-11-01 |
18213-50F00-000 |
US $242.88 |
||
|
33
|
33
14171-53F50-000
ブラケット,ターボチャージャ
C:TURBO; 1997-04-01~1998-11-01 |
14171-53F50-000 |
— | ||
|
34
|
34
01550-08123-000
Bolt
C:TURBO; 1997-04-01~1998-11-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
34
|
34
01550-0812B-000 BoltPlug, drain C:TURBO; 1997-04-01~1998-11-01 |
01550-0812B-000 |
from US $0.96 |
||
|
34
|
34
01550-0812A-000 BOLTC:TURBO; 1997-04-01~1998-11-01 |
01550-0812A-000 |
from US $0.91 |
||
