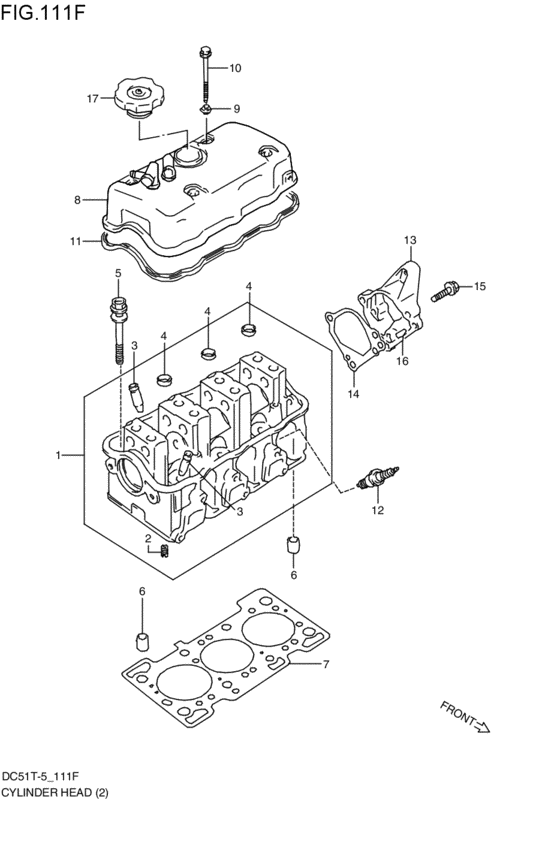

Cylinder head (C:TURBO; 1997-04-01~1998-11-01) Diagram Suzuki CARRY/EVERY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- TURBO
- supercharge
- TEPI
- drive
- 2WD
- transmission
- MT
- grade
- KU
- number of the gears
- 5MT
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11110-70B02-000
ヘッド,シリンダ
C:TURBO; 1997-04-01~1998-11-01 |
11110-70B02-000 |
— | ||
| replacement | |||||
|
1
|
1
11110-70B03-000
Head,cylinder
C:TURBO; 1997-04-01~1998-11-01 |
11110-70B03-000 |
— | ||
|
2
|
2
11112-73002-000
Plug, oil venturi
C:TURBO; 1997-04-01~1998-11-01 |
11112-73002-000 |
— | ||
| replacement | |||||
|
2
|
2
11112-73010-000 PLUG,OIL VENTURIC:TURBO; 1997-04-01~1998-11-01 |
11112-73010-000 |
US $1.60 |
||
|
3
|
3
11115-62D00-001 GUIDE,VALVEC:TURBO; 1997-04-01~1998-11-01 |
11115-62D00-001 |
US $47.20 |
||
|
4
|
4
09241-20006-000 PLUGPlug, crank pin oil C:TURBO; 1997-04-01~1998-11-01 |
09241-20006-000 |
US $1.44 |
||
|
5
|
5
09116-10116-000 BOLT(10X87)C:TURBO; 1997-04-01~1998-11-01 |
09116-10116-000 |
US $2.88 |
||
|
6
|
6
04211-13189-000 PINC:TURBO; 1997-04-01~1998-11-01 |
04211-13189-000 |
from US $1.22 |
||
|
7
|
7
11141-81401-000 GASKET,CYL HEADC:TURBO; 1997-04-01~1998-11-01 |
11141-81401-000 |
US $224 |
||
|
8
|
8
11170-53F50-000
カバー,シリンダヘッド
C:TURBO; 1997-04-01~1998-11-01 |
11170-53F50-000 |
— | ||
|
9
|
9
11180-60B00-000 SEAL WASHER,CYL HEAD COVERC:TURBO; 1997-04-01~1998-11-01 |
11180-60B00-000 |
US $13.60 |
||
|
10
|
10
09103-06134-000
Bolt,6x65
C:TURBO; 1997-04-01~1998-11-01 |
09103-06134-000 |
— | ||
| replacement | |||||
|
10
|
10
09113-06002-000 BOLT(6X65)C:TURBO; 1997-04-01~1998-11-01 |
09113-06002-000 |
US $1.44 |
||
|
11
|
11
11189-70D50-000 GASKET,CYL HEAD COVERC:TURBO; 1997-04-01~1998-11-01 |
11189-70D50-000 |
US $52.80 |
||
|
12
|
12
09482-00520-000
スパークプラグ,P16PR8
DENSO; C:TURBO; 1997-04-01~1998-11-01 |
09482-00520-000 |
— | ||
|
12
|
12
09482-00521-000
スパークプラグ,PGR5A
NGK; C:TURBO; 1997-04-01~1998-11-01 |
09482-00521-000 |
— | ||
|
13
|
13
11161-85551-000
CASE,DISTRIBUTOR
C:TURBO; 1997-04-01~1998-11-01 |
11161-85551-000 |
— | ||
|
14
|
14
11169-70D00-000
ガスケット,ケース
C:TURBO; 1997-04-01~1998-11-01 |
11169-70D00-000 |
— | ||
| replacement | |||||
|
14
|
14
11169-70D01-000 GASKET,DISTRIBUTOR CASEC:TURBO; 1997-04-01~1998-11-01 |
11169-70D01-000 |
US $2.56 |
||
|
15
|
15
09103-08153-000 BOLT(8X30)Bolt (8x30) C:TURBO; 1997-04-01~1998-11-01 |
09103-08153-000 |
US $11.80 |
||
|
16
|
16
04221-06129-000 PINC:TURBO; 1997-04-01~1998-11-01 |
04221-06129-000 |
from US $0.96 |
||
|
17
|
17
16920-86502-000
Cap, oil filler
C:TURBO; 1997-04-01~1998-11-01 |
16920-86502-000 |
— | ||
| replacements | |||||
|
17
|
17
16920-83G00-000
Cap,oil filler
C:TURBO; 1997-04-01~1998-11-01 |
16920-83G00-000 |
— | ||
|
17
|
17
16920-83G01-000
CAP OIL FILLER
C:TURBO; 1997-04-01~1998-11-01 |
16920-83G01-000 |
— | ||
