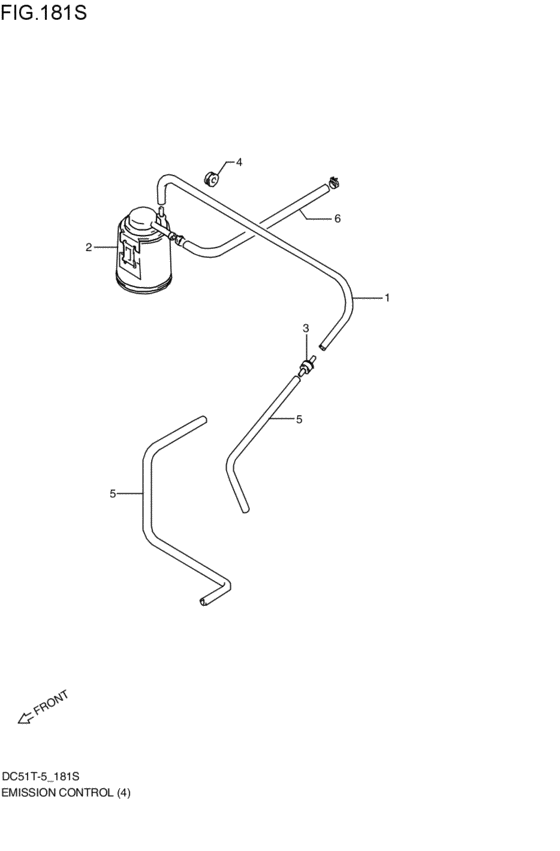

emission control (C:MT:TURBO; 1997-04-01~1998-11-01) Diagram Suzuki CARRY/EVERY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- TURBO
- supercharge
- TEPI
- drive
- 2WD
- transmission
- MT
- grade
- KU
- number of the gears
- 5MT
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
09355-35754-601
HOSE(3.5X7.5X601)
L:601>300; C:MT:TURBO; 1997-04-01~1998-11-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
1
|
1
09355-35006-601 Hose(3.5X7.5X601)L:601>300; C:MT:TURBO; 1997-04-01~1998-11-01 |
09355-35006-601 |
from US $5.78 |
||
|
2
|
2
18560-85300-000
CANISTER
C:MT:TURBO; 1997-04-01~1998-11-01 |
18560-85300-000 |
— | ||
|
3
|
3
18565-84150-000
バルブ,キャニスタパージ
C:MT:TURBO; 1997-04-01~1998-11-01 |
18565-84150-000 |
— | ||
| replacement | |||||
|
3
|
3
18565-84151-000 VALVE,CANISTER PURGEC:MT:TURBO; 1997-04-01~1998-11-01 |
18565-84151-000 |
US $21.60 |
||
|
4
|
4
09320-08013-000
CUSHION
C:MT:TURBO; 1997-04-01~1998-11-01 |
09320-08013-000 |
— | ||
| replacement | |||||
|
4
|
4
09320-08509-000 Cushion(8X22X7)C:MT:TURBO; 1997-04-01~1998-11-01 |
09320-08509-000 |
from US $1.98 |
||
|
5
|
5
09355-35754-601
HOSE(3.5X7.5X601)
L:601>300; C:MT:TURBO; 1997-04-01~1998-11-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
5
|
5
09355-35006-601 Hose(3.5X7.5X601)L:601>300; C:MT:TURBO; 1997-04-01~1998-11-01 |
09355-35006-601 |
from US $5.78 |
||
|
6
|
6
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600>80; C:MT:TURBO; 1997-04-01~1998-11-01 |
09355-54115-600 |
from US $7.20 |
||
