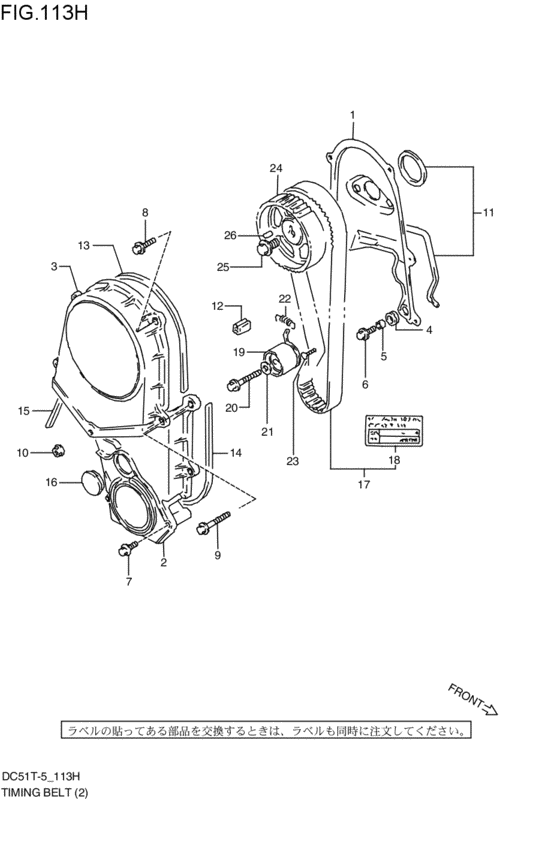

timing belt (C:TURBO; 1997-04-01~1998-11-01) Diagram Suzuki CARRY/EVERY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- TURBO
- supercharge
- TEPI
- drive
- 2WD
- transmission
- MT
- grade
- KU
- number of the gears
- 5MT
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11360-60C00-000
COVER,TIMING BELT INSIDE
C:TURBO; 1997-04-01~1998-11-01 |
11360-60C00-000 |
— | ||
|
2
|
2
11380-53F50-000
カバー,タイミングアウトサイド,NO.1
C:TURBO; 1997-04-01~1998-11-01 |
11380-53F50-000 |
— | ||
|
3
|
3
11390-83C00-000
カバー,タイミングアウトサイド,NO.2
C:TURBO; 1997-04-01~1998-11-01 |
11390-83C00-000 |
— | ||
|
4
|
4
09308-10004-000 GROMMETC:TURBO; 1997-04-01~1998-11-01 |
09308-10004-000 |
US $1.98 |
||
|
5
|
5
09180-06106-000 SPACER(6.8X10X7)C:TURBO; 1997-04-01~1998-11-01 |
09180-06106-000 |
from US $2.08 |
||
|
6
|
6
09116-06167-000 BOLT(6X20)Bolt (6x20) C:TURBO; 1997-04-01~1998-11-01 |
09116-06167-000 |
from US $1.37 |
||
|
7
|
7
01550-06253-000
Bolt (6x25)
C:TURBO; 1997-04-01~1998-11-01 |
01550-06253-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0625B-000 BOLTBolt, head cover C:TURBO; 1997-04-01~1998-11-01 |
01550-0625B-000 |
from US $0.91 |
||
|
7
|
7
01550-0625A-000 BOLTBolt C:TURBO; 1997-04-01~1998-11-01 |
01550-0625A-000 |
from US $0.96 |
||
|
8
|
8
01550-06203-000
Bolt
C:TURBO; 1997-04-01~1998-11-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
8
|
8
01550-0620B-000 BOLTBolt, inspection cap C:TURBO; 1997-04-01~1998-11-01 |
01550-0620B-000 |
from US $0.76 |
||
|
9
|
9
01550-06453-000
Bolt
C:TURBO; 1997-04-01~1998-11-01 |
01550-06453-000 |
— | ||
| replacement | |||||
|
9
|
9
01550-0645A-000 BoltC:TURBO; 1997-04-01~1998-11-01 |
01550-0645A-000 |
from US $0.96 |
||
|
10
|
10
08316-10063-000
Nut
C:TURBO; 1997-04-01~1998-11-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1006B-000 NUTC:TURBO; 1997-04-01~1998-11-01 |
08316-1006B-000 |
from US $0.76 |
||
|
11
|
11
11480-60D00-000 SEAL SET,TIMING BELT COVERC:TURBO; 1997-04-01~1998-11-01 |
11480-60D00-000 |
US $14.40 |
||
|
12
|
12
11394-70B00-000 SEALC:TURBO; 1997-04-01~1998-11-01 |
11394-70B00-000 |
US $4.80 |
||
|
13
|
13
11396-71C00-000 SEAL,TIMING BELT COVER OUTL:1070>392; C:TURBO; 1997-04-01~1998-11-01 |
11396-71C00-000 |
US $5.02 |
||
|
14
|
14
11396-71C00-000 SEAL,TIMING BELT COVER OUTL:1070>430; C:TURBO; 1997-04-01~1998-11-01 |
11396-71C00-000 |
US $5.02 |
||
|
15
|
15
11396-71C00-000 SEAL,TIMING BELT COVER OUTL:1070>80; C:TURBO; 1997-04-01~1998-11-01 |
11396-71C00-000 |
US $5.02 |
||
|
16
|
16
11389-50F00-000 PLUG,TIMING BELT COVERC:TURBO; 1997-04-01~1997-04-01 |
11389-50F00-000 |
US $7.84 |
||
|
17
|
17
11407-70D10-000
Belt set,timing
C:TURBO; 1997-04-01~1998-11-01 |
11407-70D10-000 |
— | ||
| replacement | |||||
|
17
|
17
11407-70D30-000
BELT SET,TIMING
C:TURBO; 1997-04-01~1998-11-01 |
11407-70D30-000 |
— | ||
|
18
|
18
11499-60D00-000
ラベル,タイミングベルト
C:TURBO; 1997-04-01~1998-11-01 |
11499-60D00-000 |
— | ||
|
19
|
19
12810-81402-000 TENSIONER ASSY,TIMING BELTC:TURBO; 1997-04-01~1998-11-01 |
12810-81402-000 |
US $158.40 |
||
|
20
|
20
01550-08403-000
Bolt
C:TURBO; 1997-04-01~1998-11-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0840B-000 BoltC:TURBO; 1997-04-01~1998-11-01 |
01550-0840B-000 |
from US $1.12 |
||
|
20
|
20
01550-0840A-000 BOLTC:TURBO; 1997-04-01~1998-11-01 |
01550-0840A-000 |
from US $1.12 |
||
|
21
|
21
08322-01083-000
WASHER
C:TURBO; 1997-04-01~1998-11-01 |
08322-01083-000 |
— | ||
| replacements | |||||
|
21
|
21
08322-0108B-000 WASHERC:TURBO; 1997-04-01~1998-11-01 |
08322-0108B-000 |
from US $0.80 |
||
|
21
|
21
08322-0108A-000 WASHERC:TURBO; 1997-04-01~1998-11-01 |
08322-0108A-000 |
from US $0.80 |
||
|
22
|
22
12821-50F00-000
SPRING,TENSIONER
C:TURBO; 1997-04-01~1998-11-01 |
12821-50F00-000 |
— | ||
|
23
|
23
02112-06203-000
Screw
C:TURBO; 1997-04-01~1998-11-01 |
02112-06203-000 |
— | ||
| replacements | |||||
|
23
|
23
02112-0620B-000 SCREWC:TURBO; 1997-04-01~1998-11-01 |
02112-0620B-000 |
US $0.80 |
||
|
23
|
23
02112-0620A-000 SCREWScrew, holder C:TURBO; 1997-04-01~1998-11-01 |
02112-0620A-000 |
from US $0.80 |
||
|
24
|
24
12741-70D00-000
プーリ,カムシャフトタイミング
C:TURBO; 1997-04-01~1998-11-01 |
12741-70D00-000 |
— | ||
|
25
|
25
01550-12253-000
Bolt
C:TURBO; 1997-04-01~1998-11-01 |
01550-12253-000 |
— | ||
| replacement | |||||
|
25
|
25
01550-1225A-000 BOLTC:TURBO; 1997-04-01~1998-11-01 |
01550-1225A-000 |
from US $1.28 |
||
|
26
|
26
04221-05109-000 PINC:TURBO; 1997-04-01~1998-11-01 |
04221-05109-000 |
from US $0.80 |
||
