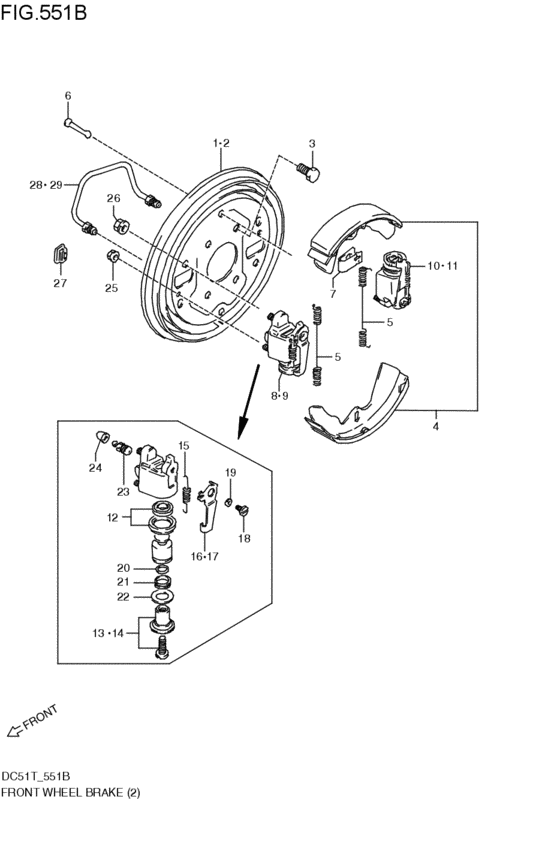

front wheel brakes (C:KU:2WD:TYPE1; 1991-09-01~1992-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 1991 - 1992
- Sales region
- Japan
- supercharge
- CARB
- drive
- 2WD
- transmission
- MT
- grade
- NSB
- number of the gears
- 4MT
- type
- TYPE1
- body
- K
- valve
- 4V
- air-conditioner
- AIRCON
- アングル
- NANGL
- 農繁
- NNOUHAN
- 郵政
- NYUSEI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52110-50F00-000
プレート,バッキング,ライト
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52110-50F00-000 |
— | ||
|
2
|
2
52160-50F00-000
プレート,バッキング,レフト
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52160-50F00-000 |
— | ||
|
3
|
3
09117-08079-000 BOLT(8X20)C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
09117-08079-000 |
US $17.70 |
||
|
4
|
4
52200-80810-000
シューセット,ブレーキ
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52200-80810-000 |
— | ||
| replacement | |||||
|
4
|
4
52200-80811-000
SHOE SET,BRAKE
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52200-80811-000 |
— | ||
|
5
|
5
52221-85030-000
スプリング,リターン
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52221-85030-000 |
— | ||
| replacement | |||||
|
5
|
5
52221-8503V-000 SPRING,RETURNC:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52221-8503V-000 |
US $2.50 |
||
|
6
|
6
53241-82030-000 PIN,SHOE HOLD DOWNPin, shoe hold down C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
53241-82030-000 |
from US $1.82 |
||
|
7
|
7
53243-85010-000 SPRING,SHOE HOLD DOWNSpring, shoe hold down C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
53243-85010-000 |
from US $1.82 |
||
|
8
|
8
52401-60C00-000
Cyl assy,fr wheel,r no.1
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52401-60C00-000 |
— | ||
| replacement | |||||
|
8
|
8
52401-60C01-000
CYLINDER ASSY,FR,R
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52401-60C01-000 |
— | ||
|
9
|
9
52402-60C00-000
Cyl assy,fr wheel,l no.1
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52402-60C00-000 |
— | ||
| replacement | |||||
|
9
|
9
52402-60C01-000
CYLINDER ASSY,FR,L
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52402-60C01-000 |
— | ||
|
10
|
10
52403-60C00-000
Cyl assy,fr wheel,r no.2
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52403-60C00-000 |
— | ||
| replacement | |||||
|
10
|
10
52403-60C01-000
CYLINDER ASSY,RR,R
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52403-60C01-000 |
— | ||
|
11
|
11
52404-60C00-000
Cyl assy,fr wheel,l no.2
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52404-60C00-000 |
— | ||
| replacement | |||||
|
11
|
11
52404-60C01-000
CYLINDER ASSY,RR,L
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52404-60C01-000 |
— | ||
|
12
|
12
52400-85840-000
ピストンカップ/ブーツセット
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52400-85840-000 |
— | ||
|
13
|
13
52450-85810-000
スリーブセット,アジャスト,ライト(ヒダリネジ)
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52450-85810-000 |
— | ||
| replacement | |||||
|
13
|
13
52450-85811-000
New Genuine Part
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52450-85811-000 |
— | ||
|
14
|
14
52450-85820-000
スリーブセット,アジャスト,レフト(ミギネジ)
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52450-85820-000 |
— | ||
| replacement | |||||
|
14
|
14
52450-85821-000
New Genuine Part
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52450-85821-000 |
— | ||
|
15
|
15
52511-85000-000
スプリング,アジャストレバー
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52511-85000-000 |
— | ||
|
16
|
16
52561-85000-000
レバー,アジャスタ,ライト
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52561-85000-000 |
— | ||
|
17
|
17
52562-85000-000
レバー,アジャスト,レフト
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52562-85000-000 |
— | ||
|
18
|
18
52571-85000-000
ボルト,アジャスタレバー
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52571-85000-000 |
— | ||
|
19
|
19
08321-01053-000
Lock washer
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
08321-01053-000 |
— | ||
| replacements | |||||
|
19
|
19
08321-0105B-000 WASHER,LOCKC:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
08321-0105B-000 |
from US $0.77 |
||
|
19
|
19
08321-0105A-000 WASHER,LOCKC:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
08321-0105A-000 |
from US $0.76 |
||
|
20
|
20
52540-85000-000
プレート,アジャスタナット
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52540-85000-000 |
— | ||
|
21
|
21
52551-85000-000
シール,アジャストナットダスト
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52551-85000-000 |
— | ||
|
22
|
22
52552-85000-000
プレート,ドレーンガイド
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52552-85000-000 |
— | ||
|
23
|
23
55473-82030-000
Plug, bleeder
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
55473-82030-000 |
— | ||
| replacement | |||||
|
23
|
23
55151-78451-000 PLUG,BLEEDERC:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
55151-78451-000 |
from US $4.33 |
||
|
24
|
24
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
55156-66310-000 |
from US $1.98 |
||
|
25
|
25
08310-00063-000
Nut
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
08310-00063-000 |
— | ||
| replacements | |||||
|
25
|
25
08310-0006B-000 NUTNut gear shift link rod C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
08310-0006B-000 |
from US $0.76 |
||
|
25
|
25
08310-0006A-000 NUTC:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
08310-0006A-000 |
from US $0.76 |
||
|
26
|
26
08316-10103-000
Nut
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
26
|
26
08316-1010B-000 NUTC:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
08316-1010B-000 |
from US $0.80 |
||
|
27
|
27
52711-85030-000
プラグ
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52711-85030-000 |
— | ||
|
28
|
28
52830-50F00-000
パイプ,ブリッジ,ライト
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52830-50F00-000 |
— | ||
|
29
|
29
52840-50F00-000
パイプ,ブリッジ,レフト
C:KU:2WD:TYPE1; 1991-09-01~1992-12-01 |
52840-50F00-000 |
— | ||
